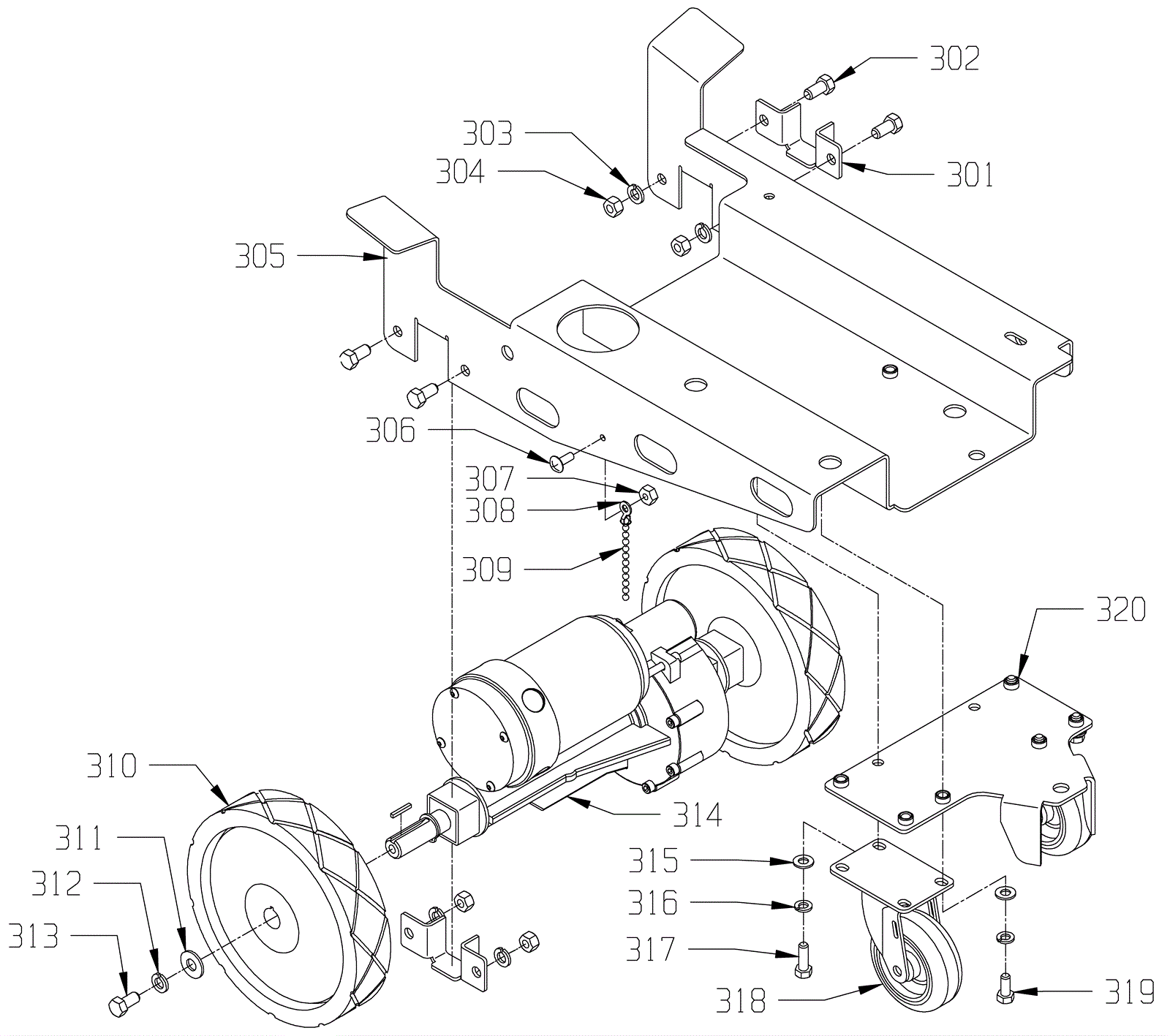

| # | Part | Description | Price | Req | Notes | Availability |
|---|
301 |
164-2489
|
Transaxle bracket |
$35.81
|
2 |
|
usually ships 18-33 days |
302 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
$1.01
|
4 |
|
ships same day |
303 |
999-0034
|
Washer 3/8 split lock plain finish |
$1.82
|
4 |
|
ships same day |
304 |
999-0170
|
Nut 3/8-16 hex plain finish |
$0.99
|
4 |
|
ships same day |
305 |
164-8060
|
Frame |
$208.45
|
1 |
|
usually ships 1-5 days |
306 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
$0.99
|
1 |
|
ships same day |
307 |
999-0004
|
Nut 10-24 k-lock zinc plated |
$0.99
|
1 |
|
ships same day |
308 |
164-1502
|
End coupling |
$2.57
|
1 |
|
usually ships 1-5 days |
309 |
164-1503
|
8 inch round bead chain |
$3.04
|
1/2 inch |
|
usually ships 1-5 days |
310 |
164-0058
|
Drive wheel |
$435.88
|
2 |
|
usually ships 18-33 days |
311 |
999-0033
|
Washer 7/16 SAE flat |
$0.99
|
2 |
|
ships same day |
312 |
999-0034
|
Washer 3/8 split lock plain finish |
$1.82
|
2 |
|
ships same day |
313 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
$1.01
|
2 |
|
ships same day |
314 |
164-2479
|
Transaxle 18 inch (OBSOLETE) |
$1,973.79
|
1 |
|
usually ships 1-5 days |
315 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
8 |
|
ships same day |
316 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
8 |
|
ships same day |
317 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
318a |
164-7995
|
Swivel caster wheel |
$60.08
|
2 |
|
ships same day |
319 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
6 |
|
ships same day |
320 |
164-7994
|
Caster mounting plate |
$58.30
|
1 |
|
usually ships 1-5 days |
