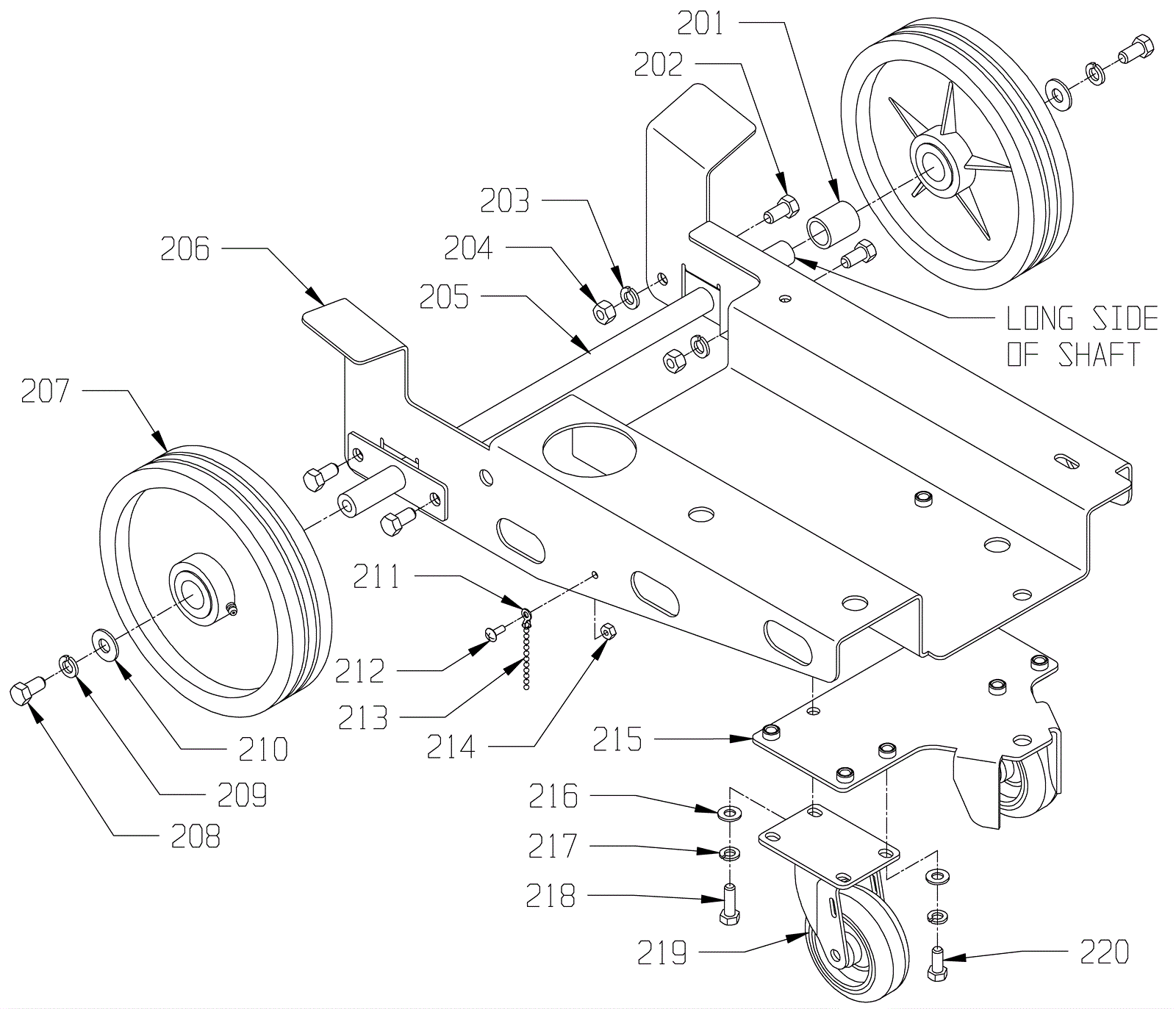

Frame Assembly

#PartDescription ReqNotesAvailability
201 164-1698 Drive casting spacer 1
202 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
203 999-0034 Washer 3/8 split lock plain finish 4
204 999-0170 Nut 3/8-16 hex plain finish 4
205 164-2504 Axle 1
206 164-8060 Frame 1
207a 164-0029 8 inch wheel with bearings 2
207b 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS 2 (NON-OEM)
208 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 2
209 999-0034 Washer 3/8 split lock plain finish 2
210 999-0033 Washer 7/16 SAE flat 2
211 164-1502 End coupling 1
212 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1
213 164-1503 8 inch round bead chain 1/2 inch
214 999-0004 Nut 10-24 k-lock zinc plated 1
215 164-7994 Caster mounting plate 1
216 999-0024 Washer 5/16 flat stainless steel 8
217 999-0028 Washer 5/16 split lock plain finish 8
218 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 2
219a 164-7995 Swivel caster wheel 2
220 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 6
