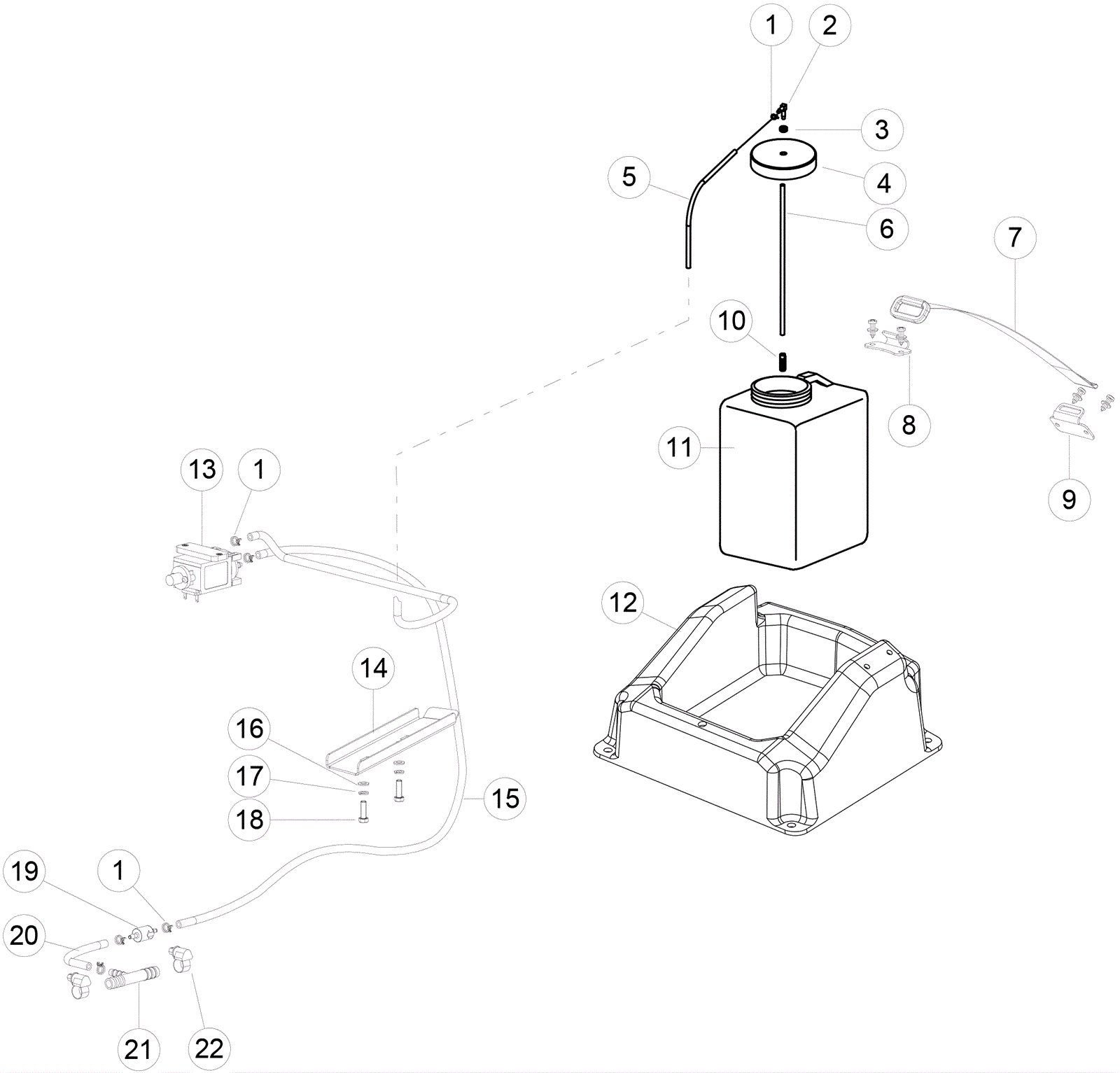

Champ 2417 RB Detergent System Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-7745 Clamp Call for price 6 usually ships 18-33 days
2 164-7746 Fitting Call for price 1 usually ships 18-33 days
3 164-7747 Guide ring Call for price 1 usually ships 18-33 days
4 164-7748 Plug Call for price 1 usually ships 18-33 days
5 164-7749 Hose Call for price 1 usually ships 18-33 days
6 164-7750 Hose Call for price 1 foot usually ships 18-33 days
7 164-7751 Detergent tank retaining band Call for price 1 usually ships 18-33 days
8 164-7752 Detergent tank hook Call for price 1 usually ships 18-33 days
9 164-7753 Band clasp Call for price 1 usually ships 18-33 days
10 164-7754 Filter Call for price 1 usually ships 18-33 days
11 164-7755 Detergent tank Call for price 1 usually ships 18-33 days
12 164-7756 Tank support Call for price 1 usually ships 18-33 days
13 164-7757 Detergent pump Call for price 1 usually ships 18-33 days
14 164-7758 Silicone hose protection Call for price 1 usually ships 18-33 days
15 164-7759 Hose (OBSOLETE) Call for price 1 usually ships 18-33 days
16 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
17 164-7556 Spring washer 5mm Call for price 2 usually ships 18-33 days
18 164-7760 Screw M5 x 16 hex head Call for price 2 usually ships 18-33 days
19 164-7761 Undirectional valve Call for price 1 usually ships 18-33 days
20 164-7749 Hose Call for price 1 usually ships 18-33 days
21 164-7762 Tee fitting Call for price 1 usually ships 18-33 days
22 164-7763 Hose clamp Call for price 2 usually ships 18-33 days
