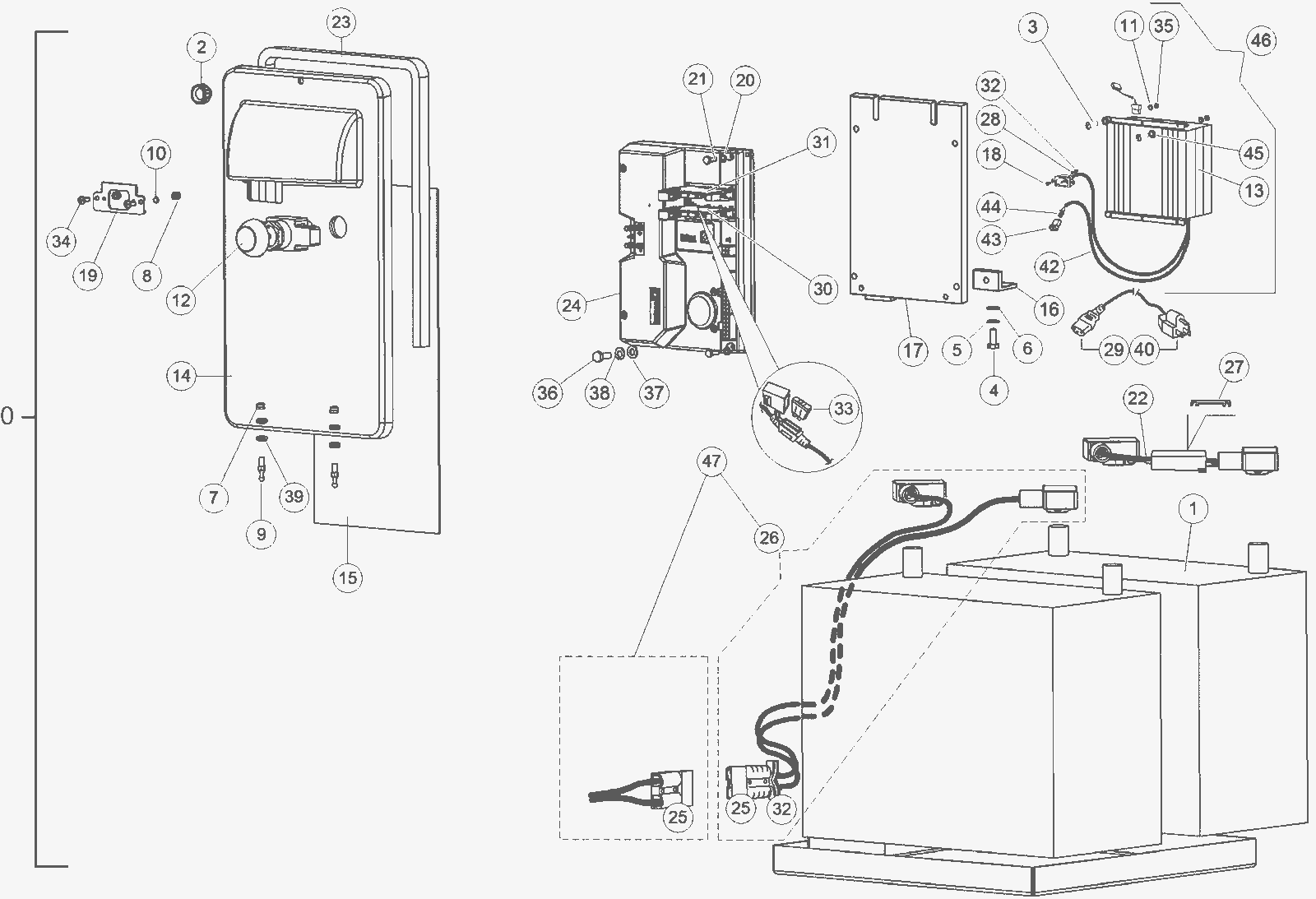

Electrical System Assembly

#PartDescription ReqNotesAvailability
0a 164-7740 Electrical system kit 1 (includes 1a-47) (before SN 99300545)
0b 164-7741 Electrical system kit 1 (includes 1a-47) (after SN 99300544)
1a 162-0057 12V 150Ah wet battery 2
1b 162-0042 12V 115Ah AGM battery (Group 31) (SNSR) 2
2 164-7721 Hand knob 1
3 N/A Not available 2 (screw M4 x 12 pan head)
4 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
5 164-7584 Spring washer inox 4
6 164-7573 Washer 4
7 164-7723 Nut M5 self locking 2
8 164-7724 Nut M4 lock 2
9 164-7719 M5 pin 2
10 N/A Not available 2 (washer 4mm x 16mm)
11 N/A Not available 2 (washer 4mm x 9mm)
12 164-7725 Emergency stop button 1
13 164-7726 24V 13Ah onboard battery charger (OBSOLETE) 1
14 164-7727 ABS guard 1
15 164-7728 Guard 1
16 164-7729 Plate 1
17 164-7730 Support 1
18 N/A Not available 2 (screw M3 x 10 countersunk cross-head)
19 164-7731 Support 1
20 N/A Not available 4 (toothed spring washer)
21 164-7732 Screw M4 x 12 hex head 4
22 164-7733 Battery cable 1
23 164-7734 Rubber section 2.8 feet
24 164-7735 Electronic board 1
25 164-9988 Connector 2
26 164-7736 Battery cable electric system 1 (includes 25 and 32)
27 164-7737 80amp fuse 1
28 N/A Not available 2 (knurled washer)
29 164-6477 Onboard charger extension cord 1
30 164-7738 Actuator circuit board 1
31 164-7738 Actuator circuit board 1
32 N/A Not available 2 (nut M3)
33 164-7739 3amp fuse 1
34 N/A Not available 1 (screw M4 x 14 pan head)
35 N/A Not available 2 (nut M4 self-locking)
36 N/A Not available 2 (screw M6 x 14 hex head)
37 999-1261 Washer M6 flat stainless steel 2
38 N/A Not available 2 (spring washer)
39 N/A Not available 4 (washer M5 inox)
40 164-9043 240V onboard charger cord 1
42 164-7742 Cable sheath 2 feet
43 164-7664 Connector 1
44 164-7665 Terminal connector 2
45 N/A Not available 2 (washer)
46 164-7743 Battery charger kit 1 (includes 11, 13, 35, 45)
47 164-7744 Battery and machine power harnesses 1 (includes 25-26, 32)
