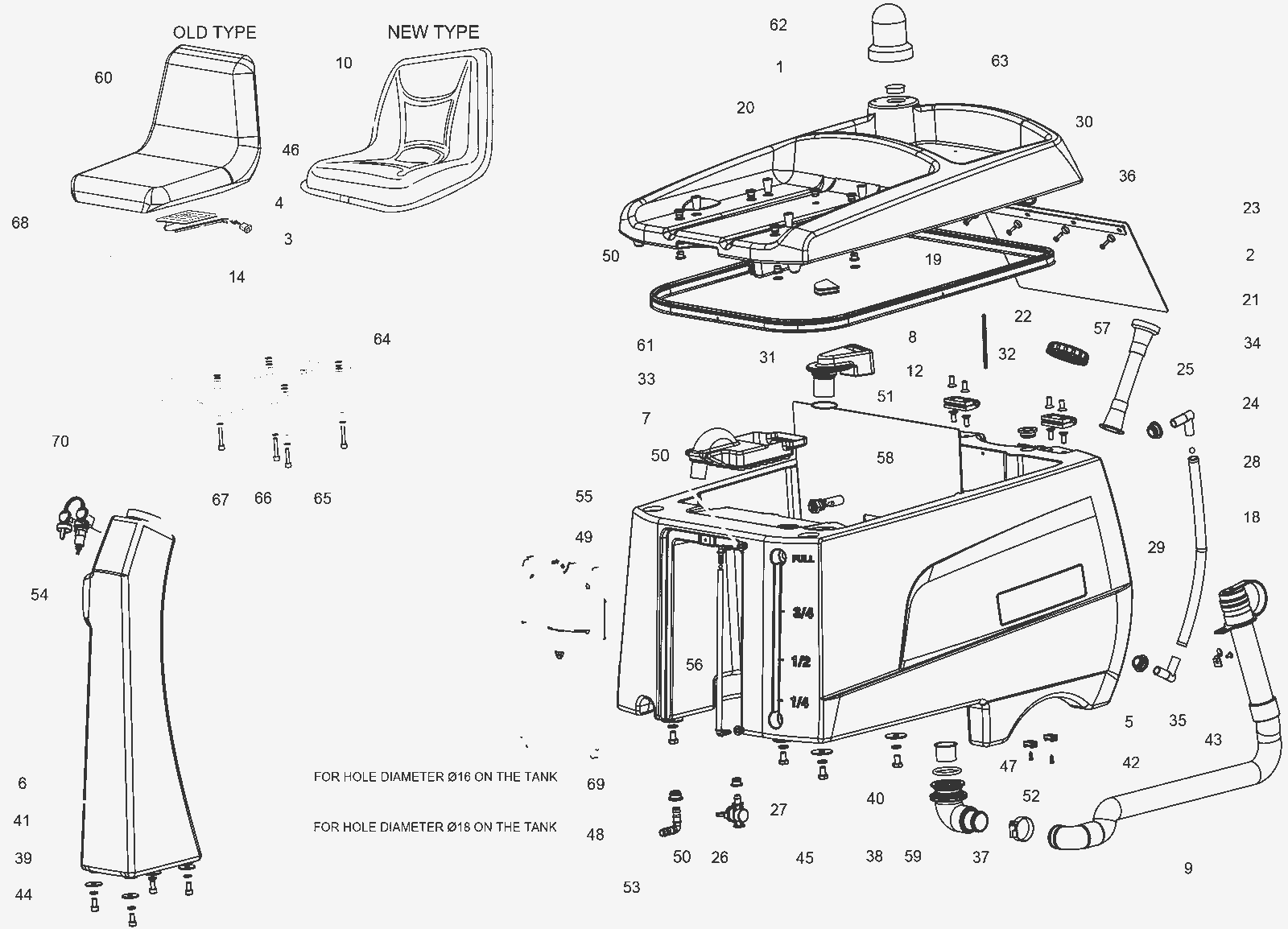

Water Tank Assembly

#PartDescription ReqNotesAvailability
1 164-5729 Front cover locking pin assembly 1
2 164-7663 Screw self-tapping 4
3 164-7664 Connector 1 (before SN 99301184)
4 164-7665 Terminal connector 2 (before SN 99301184)
5a 164-7666 Clamp fixing for screw 2 (before SN 99301617)
5b 164-7667 Clamp 1 (after SN 99301618)
6 164-7668 Steering column 1
7 164-7669 Waste tray 1
8 164-7670 Guard 1
9 164-7671 Drain hose 1
10 164-7672 Seat with microswitch 1 (after SN 99301183)
12 164-7673 Screw M8 x 20 countersunk 8
14 164-7674 Cable sheath 3.30 feet (before SN 99301184)
18 164-7675 Hose 1
19 164-7676 Gasket 1
20 164-7677 Plug 4
21 164-7678 Splash guard (rubber) 1
22 164-7679 Chain 1
23 164-7680 Washer 4
24 164-7681 Hose fitting 2
25 164-7682 Guide ring 2
26 164-7683 Tap 1
27 164-7684 Guide ring 1
28 164-7685 Sphere 1
29 164-7686 Solution tank 1
30 164-7687 Hood 1
31 164-7688 Guard (rubber) 1
32 164-7689 Rubber guide 1
33 164-7690 Baffle 1
34 164-7691 Hose 1
35 164-7692 Support 1
36 164-7693 Flat strip 1
37 164-7694 Clamp H12 1
38 164-7583 Washer M10 spring 4
39 164-7533 Spring washer 4
40 164-7695 Flat washer 4
41 164-7499 Washer 8mm x 32mm flat 4
42 N/A Not available 2 (screw M5 X 12 self-tapping)
43 N/A Not available 1 (screw M5 x 12 oval head)
44 164-7696 Screw M8 x 16mm pan head 4
45 164-7697 Screw M10 x 16mm hex head 4
46 164-8958 Sensor 1 (before SN 99301184)
47 164-7698 Tank union pipe bushing 1
48 164-7699 18mm bulkhead 1
49 164-7700 Sphere 1
50 164-7701 Cable lug 11
51 164-7702 Seat hinge 2
52 164-7703 Tank union pipe 1
53 164-7704 Rubber holder 1
54 164-7705 Ignition key 1
55 164-7706 Rubber holder 2
56 164-7707 Hose 1
57 164-7708 Tank tap 1
58 164-7709 Tank level gauge 1
59 164-7710 Dirty water pipe union 1
60 164-7711 Seat with microswitch 1 (before SN 99301184)
61 164-7712 O-ring 1
62 164-7713 Cap 1
63 164-7714 Flashing light 1
64 N/A Not available 8 (washer)
65 N/A Not available 4 (washer)
66 N/A Not available 1 (screw M8 x 45 cheese head)
67 N/A Not available 1 (screw M8 x 50 cheese head)
68 164-7715 Seat kit with sensor 1 (includes 3-4, 10, 14, 46, 60, 64-67)
69 164-7716 16mm bulkhead 1
70 164-5570 Set of ignition keys 1
N/S 164-7717 Screw M5 x 12 slotted pan head 1
N/S 999-1297 Screw M8 x 50mm hex head stainless steel 4
N/S 164-7718 Snap ring 1
N/S 164-7719 M5 pin 2
