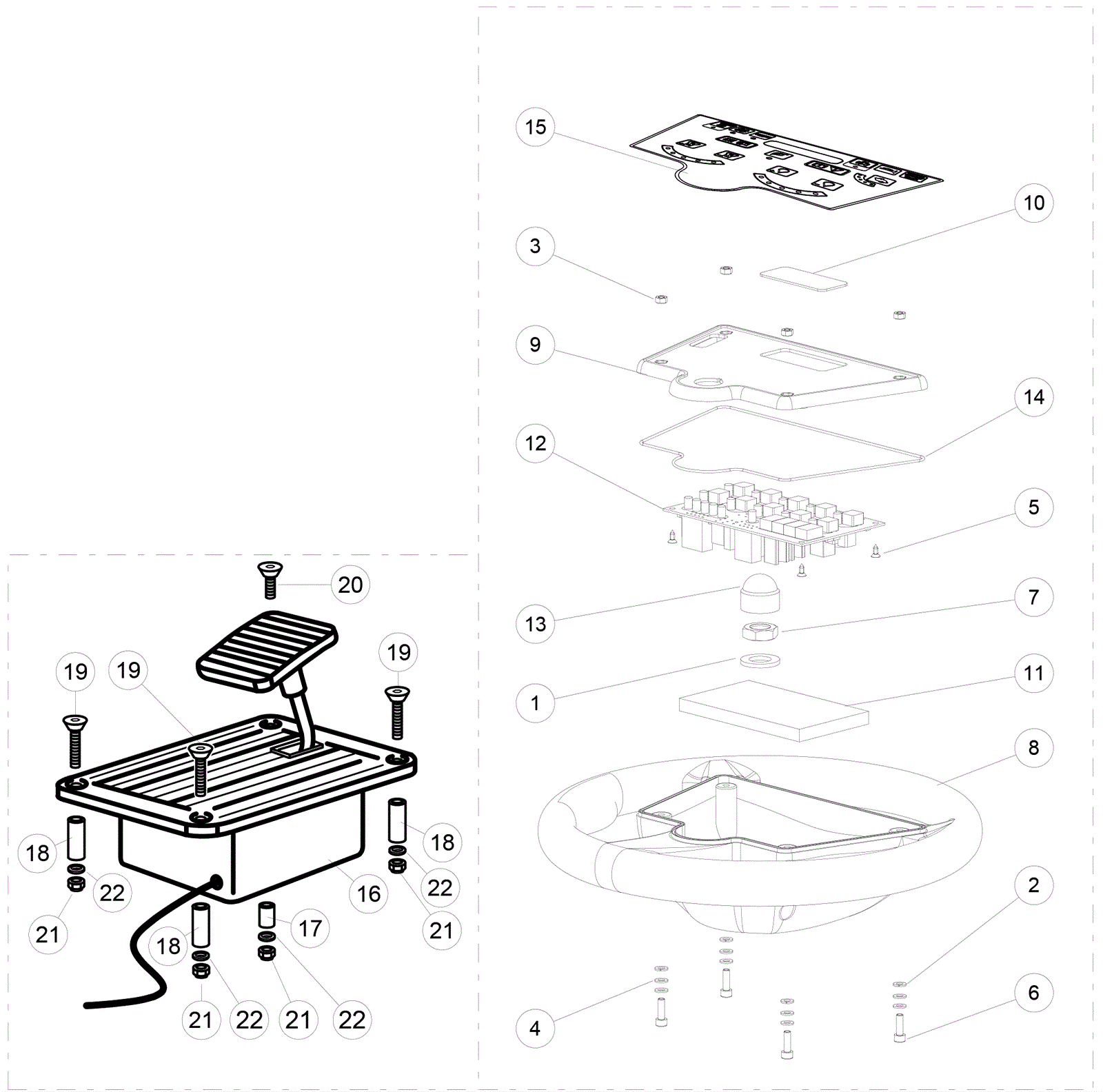

Champ 2417 RB Steering Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-7555 Washer 16 x 30mm spring $2.57 1 usually ships 18-33 days
2 164-7556 Spring washer 5mm Call for price 4 usually ships 18-33 days
3 164-7557 Nut M5 Call for price 4 usually ships 18-33 days
4 999-9100 Washer M5 flat stainless steel $5.83 8 ships same day
5 164-7558 Screw 35mm x 95mm self tapping Call for price 4 usually ships 18-33 days
6 164-7559 Screw M5 x 16mm pan head $2.57 4 usually ships 18-33 days
7 164-7560 Nut M16 jam $4.75 1 usually ships 18-33 days
8 164-7561 Steering wheel $227.43 1 usually ships 18-33 days
9 164-7562 Steering wheel cover kit $38.50 1 usually ships 18-33 days
10 164-7563 Glass insulator kit $7.92 1 usually ships 18-33 days
11 164-7564 Control board insulator kit $11.66 1 usually ships 18-33 days
12 164-7565 Control board kit $385.39 1 usually ships 18-33 days
13 164-7566 Nut M16 acorn $4.75 1 usually ships 18-33 days
14 164-7567 Gasket $9.79 1 usually ships 18-33 days
15 164-7568 Touch pad membrane kit $360.53 1 usually ships 18-33 days
16 164-7569 Foot pedal Call for price 1 usually ships 18-33 days
17 164-7570 Spacer 6.4mm x 15mm Call for price 1 usually ships 18-33 days
18 164-7571 Spacer 6.4mm x 15mm Call for price 3 usually ships 18-33 days
19 N/A Not available Call for price 3 (screw M6 x 70 countersunk) usually ships 3-26 days
20 N/A Not available Call for price 1 (screw M6 x 35 countersunk) usually ships 3-26 days
21 164-7572 Nut M6 locking inox $4.73 4 usually ships 18-33 days
22 164-7573 Washer $3.30 4 usually ships 18-33 days
