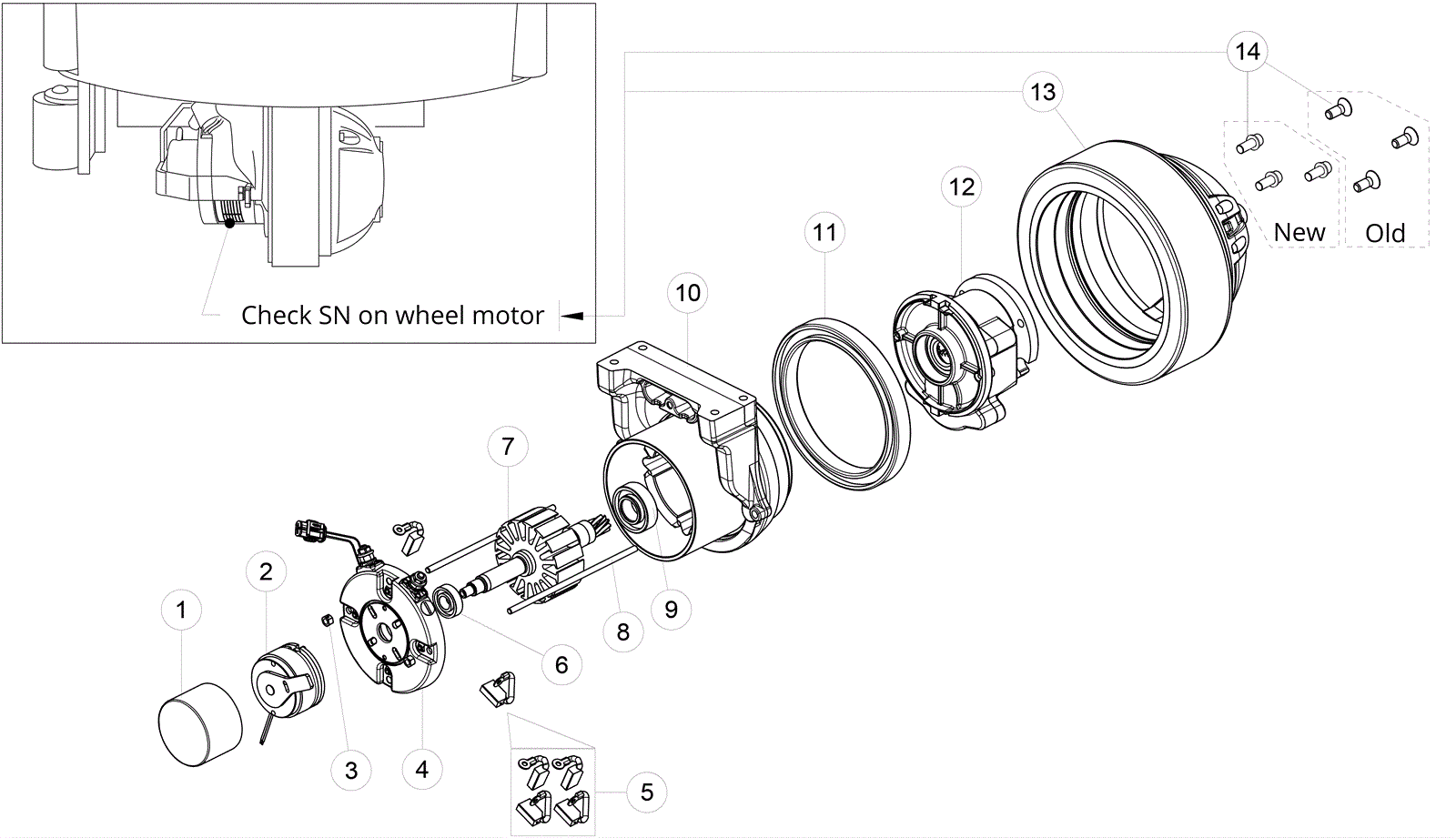

Champ 2417 RB Electric Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-7540 Protection cover Call for price 1 usually ships 18-33 days
2 164-7541 Brake kit (with connectors) $431.48 1 usually ships 18-33 days
3 164-7542 Nut M5 x 5 Call for price 2 usually ships 18-33 days
4 164-7543 Coal holder Call for price 1 usually ships 18-33 days
5 164-5517 Carbon brush kit of 4 $303.55 1 usually ships 1-5 days
6 164-7544 Bearing Call for price 1 usually ships 18-33 days
7 164-7545 Armature Call for price 1 usually ships 18-33 days
8 164-7546 Tie-rod Call for price 2 usually ships 18-33 days
9 164-7547 Bearing Call for price 1 usually ships 18-33 days
10 164-7548 Stator Call for price 1 usually ships 18-33 days
11 164-7549 Bearing Call for price 1 usually ships 18-33 days
12 164-7550 Reducer Call for price 1 usually ships 18-33 days
13a 164-7551 Rubber wheel $713.57 1 (before SN 00239368) usually ships 18-33 days
13b 164-7552 Rubber wheel hub $585.48 1 (after SN 00239367) usually ships 18-33 days
14a 164-7553 Screw pan head flange Call for price 1 (after SN 00239367) usually ships 18-33 days
14b 164-7554 Countersunk screw kit Call for price 1 (before SN 00239368) usually ships 18-33 days
