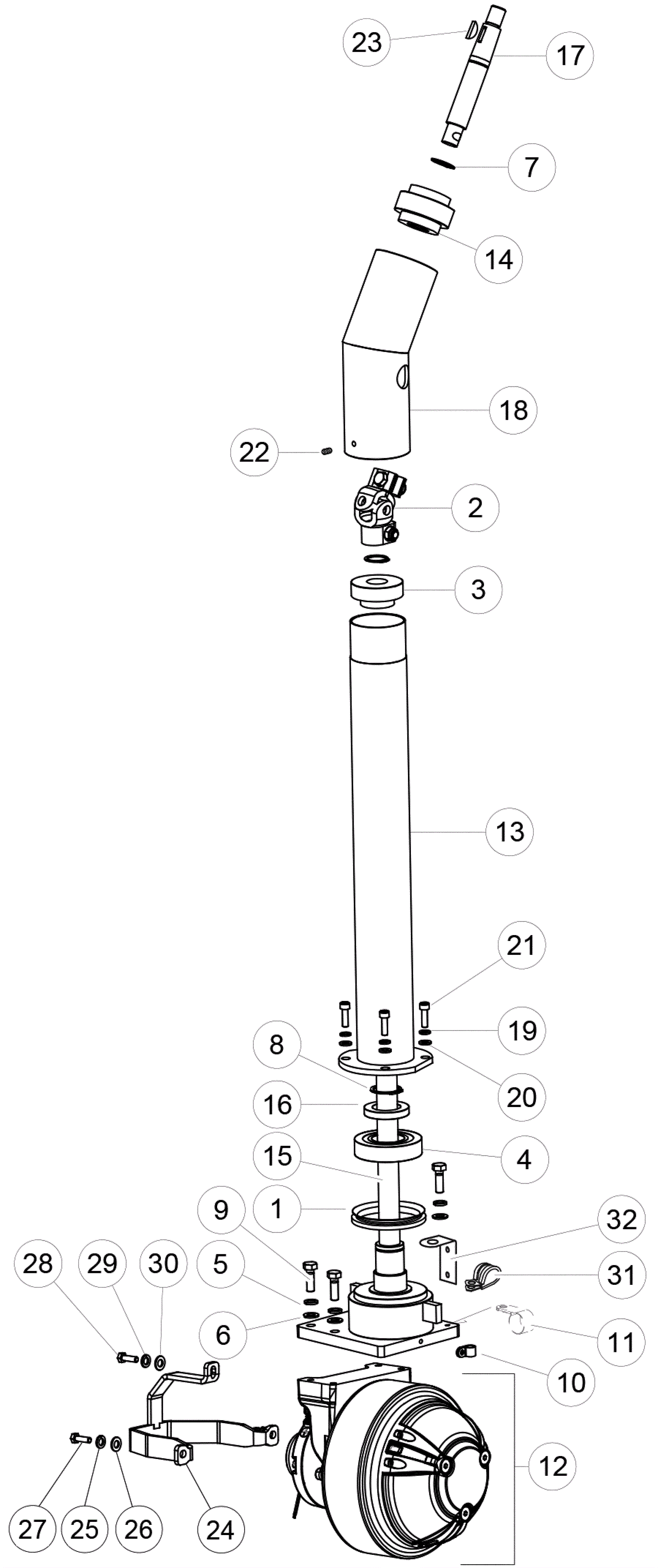

Champ 2417 RB Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-5412 Lower v-ring Call for price 1 usually ships 1-5 days
2 164-7517 Universal joint Call for price 1 usually ships 18-33 days
3 164-7518 Bushing Call for price 1 usually ships 18-33 days
4 164-7519 Bearing Call for price 1 usually ships 18-33 days
5 164-8885 Washer M8.4 spring $2.57 4 usually ships 18-33 days
6 164-5601 Washer 8 diameter $3.04 4 usually ships 1-5 days
7 164-7522 Seeger E22 retaining ring Call for price 2 usually ships 18-33 days
8 164-7523 Seeger E30 retaining ring Call for price 1 usually ships 18-33 days
9 164-7524 Screw M8 x 30mm hex head Call for price 4 usually ships 18-33 days
10 164-5426 Clamping ring $3.96 1 usually ships 1-5 days
11 164-7525 Clamp Call for price 1 (before SN 99300545) usually ships 18-33 days
12 164-7526 Drive wheel $2,175.47 1 usually ships 18-33 days
13 164-7527 Support $215.60 1 usually ships 18-33 days
14 164-7528 Bushing Call for price 1 usually ships 18-33 days
15 164-7529 Front wheel support Call for price 1 usually ships 18-33 days
16 164-7530 Washer Call for price 1 usually ships 18-33 days
17 164-7531 Shaft Call for price 1 usually ships 18-33 days
18 164-7532 Support Call for price 1 usually ships 18-33 days
19 164-7533 Spring washer $2.24 4 usually ships 18-33 days
20 164-7534 Washer $3.74 4 usually ships 18-33 days
21 999-1159 Screw M8-1.25 x 20mm pan head phillips zinc plated $0.99 4 ships same day
22 164-7535 Screw M6 x 8mm Call for price 4 usually ships 18-33 days
23 164-7536 Woodruff key 4mm x 75mm Call for price 1 usually ships 18-33 days
24 164-7537 Guard Call for price 1 usually ships 18-33 days
25 N/A Not available Call for price 2 (spring washer) usually ships 3-26 days
26 N/A Not available Call for price 2 (washer) usually ships 3-26 days
27 N/A Not available Call for price 2 (screw M8 x 20 hex head) usually ships 3-26 days
28 164-9619 Screw $4.36 1 usually ships 18-33 days
29 N/A Not available Call for price 1 (spring washer) usually ships 3-26 days
30 N/A Not available Call for price 1 (washer) usually ships 3-26 days
31 164-7538 Cable clamp Call for price 1 (after SN 99300544) usually ships 18-33 days
32 164-7539 Plate Call for price 1 (after SN 99300544) usually ships 18-33 days
