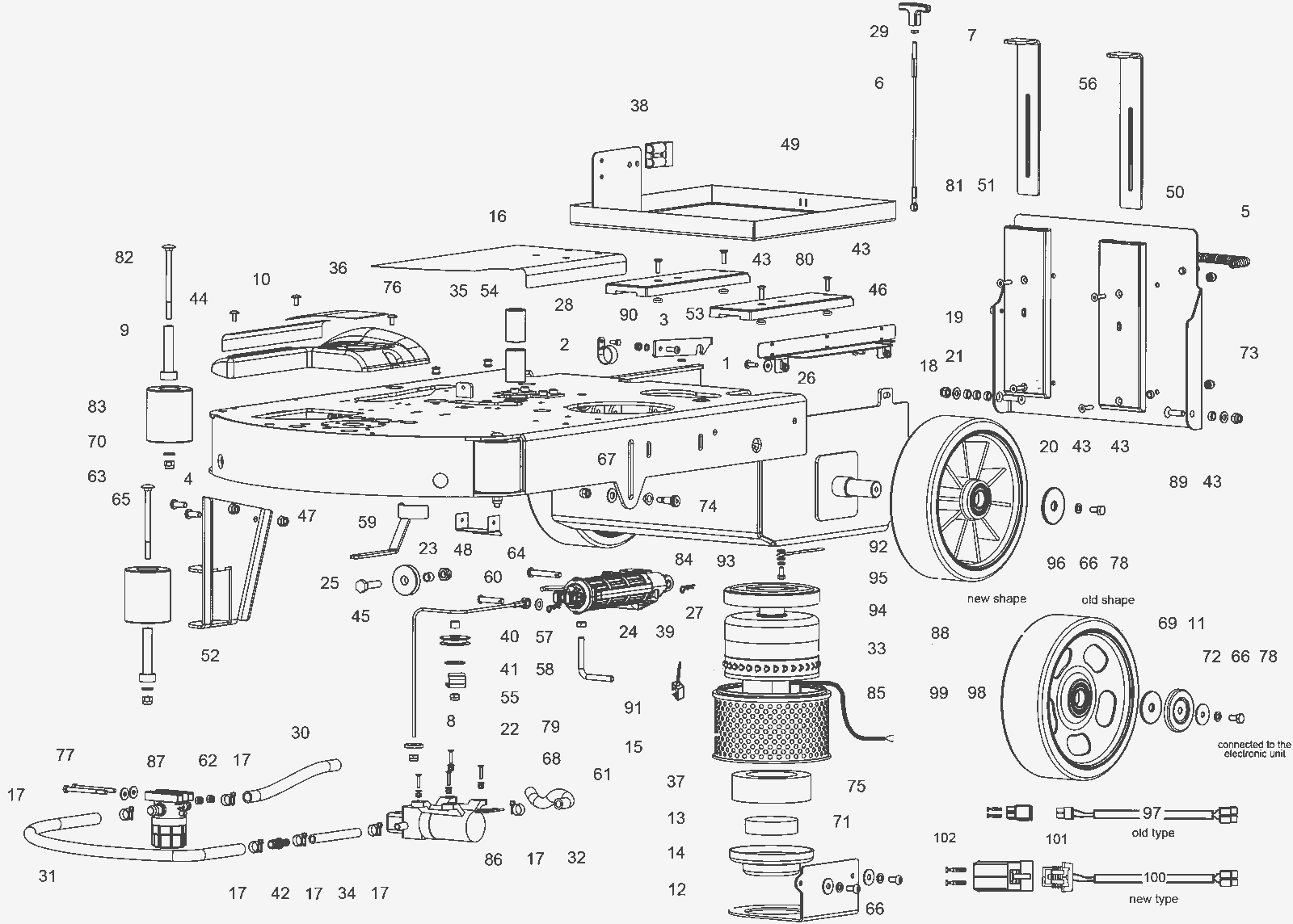

Chassis Assembly

#PartDescription ReqNotesAvailability
1 164-9958 Spring pin 3.3 mm x 12 mm 1
2 164-9959 25mm clamp 1
3 164-5602 Screw M6 x 18 socket head 1
4 164-5600 Screw M8 x 20 socket head (OBSOLETE) 2
5 164-9960 Corrugated hose 1
6 164-5445 Key-wheel hub (OBSOLETE) 1
7 164-5418 Parking brake handle 1
8 164-9961 Washer 8mm x 24mm 1
9 164-9962 Shockproof roll spacer 3
10 164-9963 Right hand anti-slip mat 1
11 164-9964 Bearing cover 2 (before SN99301098)
12 164-9965 Suction motor support 1
13 164-9966 Bottom filter 1
14 164-9967 Suction motor bottom 1
15 164-9968 HEPA filter cartridge 1
16 164-9969 Left hand anti-slip mat 1
17 164-9970 Clamp 6
18 164-9971 Nut M8 self locking 6
19 164-7572 Nut M6 locking inox 7
20 164-9973 Countersunk screw 1
21 164-7534 Washer 5
22 164-9975 Nut M8 self-locking 2
23 164-9976 Nut M10 self-locking 1
24 164-9977 Nut M8 1
25 164-9978 Screw M10 x 40mm hex head 1
26 999-1600 Screw M6 x 16 pan head zinc 2
27 164-9979 R-shaped split pin 2
28 164-9980 Screw M5 x 12mm hex head 1
29 164-9981 Screw M6 x 60mm round head 1
30 164-7075 Water hose 9.5 inches
31 164-7075 Water hose 30 inches
32 164-9982 Water hose 13 inches
33 164-9983 Gasket 1
34 164-9984 Water hose 9 inches
35 164-9985 Wire guide 2
36 164-9986 Anti-slip mat 1
37 164-9987 Acoustic seal 1
38 164-9988 Connector 1
39 164-9989 Brush actuator 1
40 164-9990 Bushing 2
41 164-9991 Washer 1
42 164-9992 Hose fitting 1
43 164-9993 Nylon spacer 4
44 164-9994 Foot rest 1
45 164-9995 Screw 2
46 164-9996 Support 1
47 164-9997 Chassis 1
48 164-9998 Cable bracket 1
49 164-9999 Battery tray 1
50 164-6999 Cover 1
51 164-7000 Battery plate 4
52 164-7001 Support 1
53 164-7490 Blocking lever 1
54 164-7491 Bushing 2
55 164-7492 Guide 1
56 164-7493 Battery sliding plate 2
57 164-7494 Flexible cable 1
58 164-7495 Retainer 1
59 164-7496 Bracket 1
60 164-7497 Retainer 1
61 N/A Not available 4 (M5 self-locking nut)
62 N/A Not available 2 (M6 self-locking nut)
63 N/A Not available 5 (M8 self-locking nut)
64 164-7498 Pin 8mm x 55mm 1
65 N/A Not available 1 (M8 x100 round head scew)
66 N/A Not available 4 (spring washer)
67 N/A Not available 2 (washer)
68 999-1658 Washer M5 x 15mm flat stainless steel (OBSOLETE) 4
69 164-7499 Washer 8mm x 32mm flat 2 (before SN 99301098)
70 N/A Not available 3 (washer)
71 N/A Not available 2 (M8 x 24 washer)
72 999-9097 Washer M8 flat stainless steel 2 (before SN 99301098)
73 N/A Not available 4 (M6 cap nut)
74 164-7501 Screw M8 x 16mm 2
75 N/A Not available 2 (screw M8 x 16 oval head)
76 N/A Not available 3 (screw M6 x 16 oval head)
77 N/A Not available 2 (screw M6 x 75 hex head screw)
78 N/A Not available 2 (screw M8 x 25 hex head screw)
79 N/A Not available 4 (screw M5 x 20 countersunk screw)
80 N/A Not available 4 (screw M6 x 20 countersunk screw)
81 N/A Not available 4 (screw M6 x 25 countersunk screw)
82 N/A Not available 2 (screw M8 x 110 round head scew)
83 164-7502 Shockproof roll 3
84 164-7503 Self-lubricating bearing 2
85a N/A Not available 1 (24V suction motor) (before SN 99301210)
85b 164-7504 24V suction motor 1 (after SN 99301209)
86 164-9955 Water pump w/ connectors 1
87 164-7505 Water filter with valve 1
88 164-7506 Rear wheel (grey) 2
89 164-7507 Screw M8 x 25mm countersunk 1
90 164-7508 Washer 1
91a 164-7509 Carbon brush kit 1 (before SN 99301210)
91b 164-7510 Replacement carbon brushes 1 (after SN 99301209)
92 164-7511 Electric static discharge chain 3.5 inches
93 999-1801 Screw M6 X 12mm hex head flange 1
94 N/A Not available 1 (spring washer)
95 N/A Not available 2 (washer)
96 164-5415 Washer 1 (after SN 99301097)
97 164-7512 Wiring harness 1 (before SN 99301619)
98 164-7513 Connector 1 (before SN 99301619)
99 164-7514 Male push connector 2 (before SN 99301619)
100 164-7515 Battery and machine power harness 1 (after SN 99301618)
101 164-7516 Connector 1 (after SN 99301618)
102 164-7516 Connector 2 (after SN 99301618)
