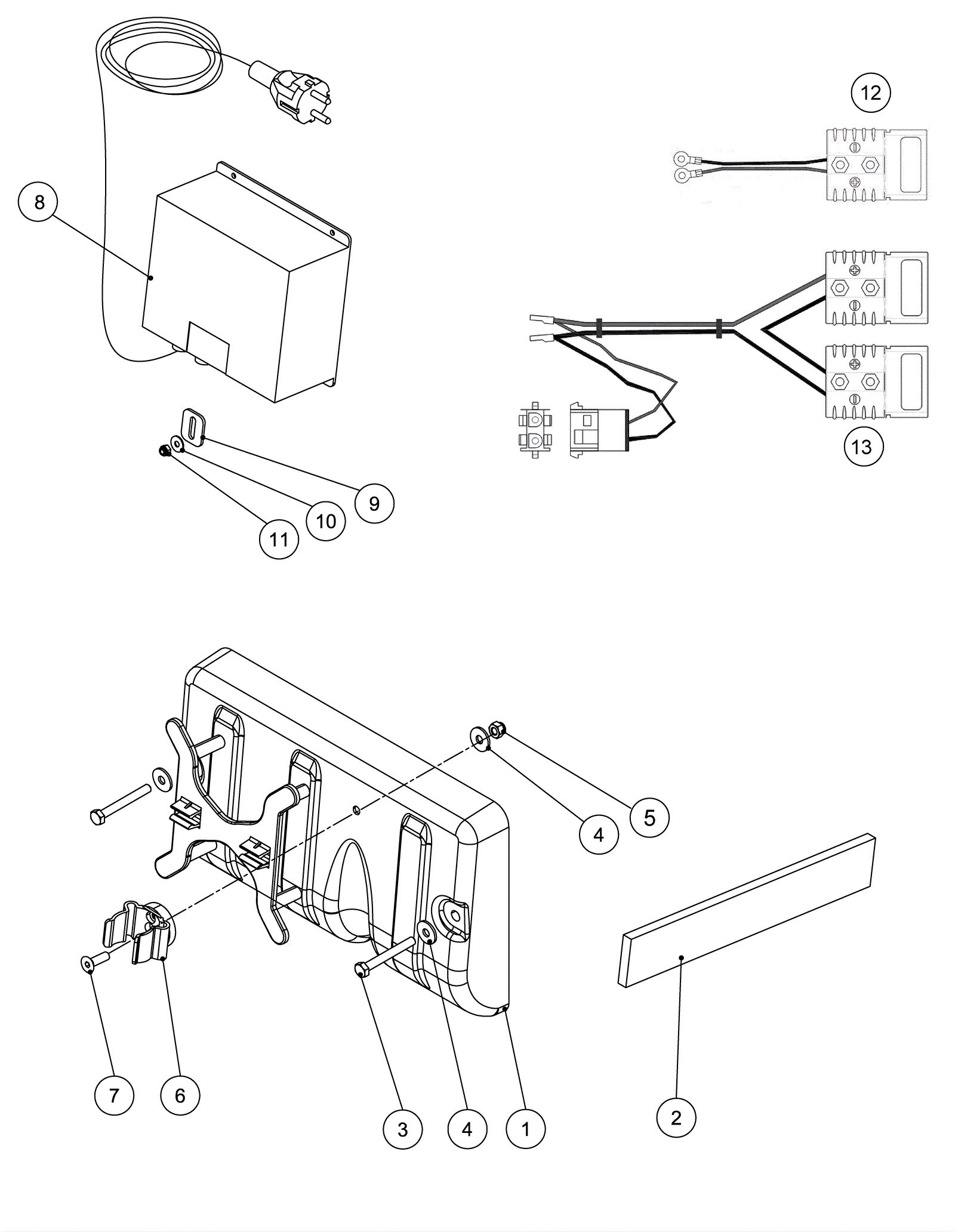

Battery Assembly

#PartDescription ReqNotesAvailability
1 164-8675 Rear cover 1
2 164-8675 Rear cover 1
3 164-8677 Screw 2
4 164-8678 Washer 3
6 164-8599 Clamp 1
7 N/A Not available 1 (screw)
8a 164-8679 240v battery charger 1
8b 164-8456 Battery charger 1
8c N/A Not available 1
9 N/A Not available 1 (plate)
10 164-8680 Washer 1
11 164-8633 Nut 1
12 164-8681 Battery cable 2
13 164-8682 Power cable 1
