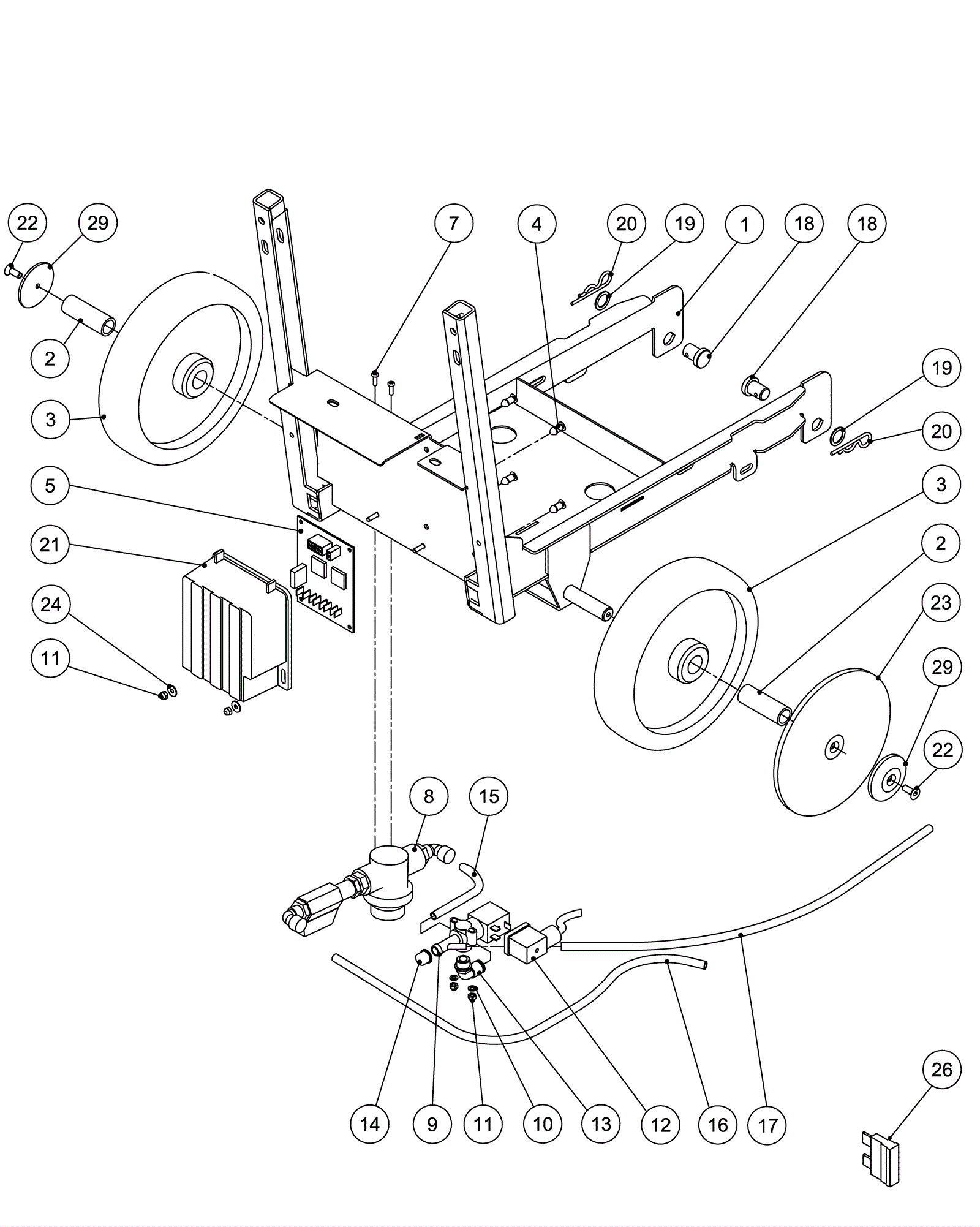

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
|
|
2 |
164-8630
|
Wheel tube |
2 |
|
|
3 |
164-8455
|
Wheel |
2 |
|
|
4 |
164-8603
|
Spacer |
4 |
|
|
5 |
164-6825
|
Electronic board |
1 |
|
|
7 |
164-8632
|
Screw |
2 |
|
|
8 |
164-8225
|
Flow regulator and filter kit |
1 |
|
|
9 |
164-9273
|
Solenoid valve |
1 |
|
|
10 |
164-8647
|
Washer |
2 |
|
|
11 |
164-8633
|
Nut |
4 |
|
|
12 |
164-8634
|
Solenoid valve cable |
1 |
|
|
13 |
164-8635
|
Elbow connector |
1 |
|
|
14 |
164-8646
|
Cap |
1 |
|
|
15 |
164-8636
|
Solution hose |
1 |
|
|
16 |
164-8637
|
360mm solution hose |
1 |
|
|
17 |
164-8638
|
560mm solution hose |
1 |
|
|
18 |
164-8639
|
Pin |
2 |
|
|
19 |
164-8640
|
Washer |
2 |
|
|
20 |
164-8641
|
Split pin |
2 |
|
|
21 |
164-8642
|
Electronic board cover |
1 |
|
|
22 |
164-8643
|
Screw |
2 |
|
|
23 |
164-8644
|
Wheel cover |
2 |
|
|
24 |
164-8647
|
Washer |
2 |
|
|
25 |
164-8742
|
Washer |
2 |
|
|
26 |
164-8645
|
30amp fuse |
1 |
|
|
