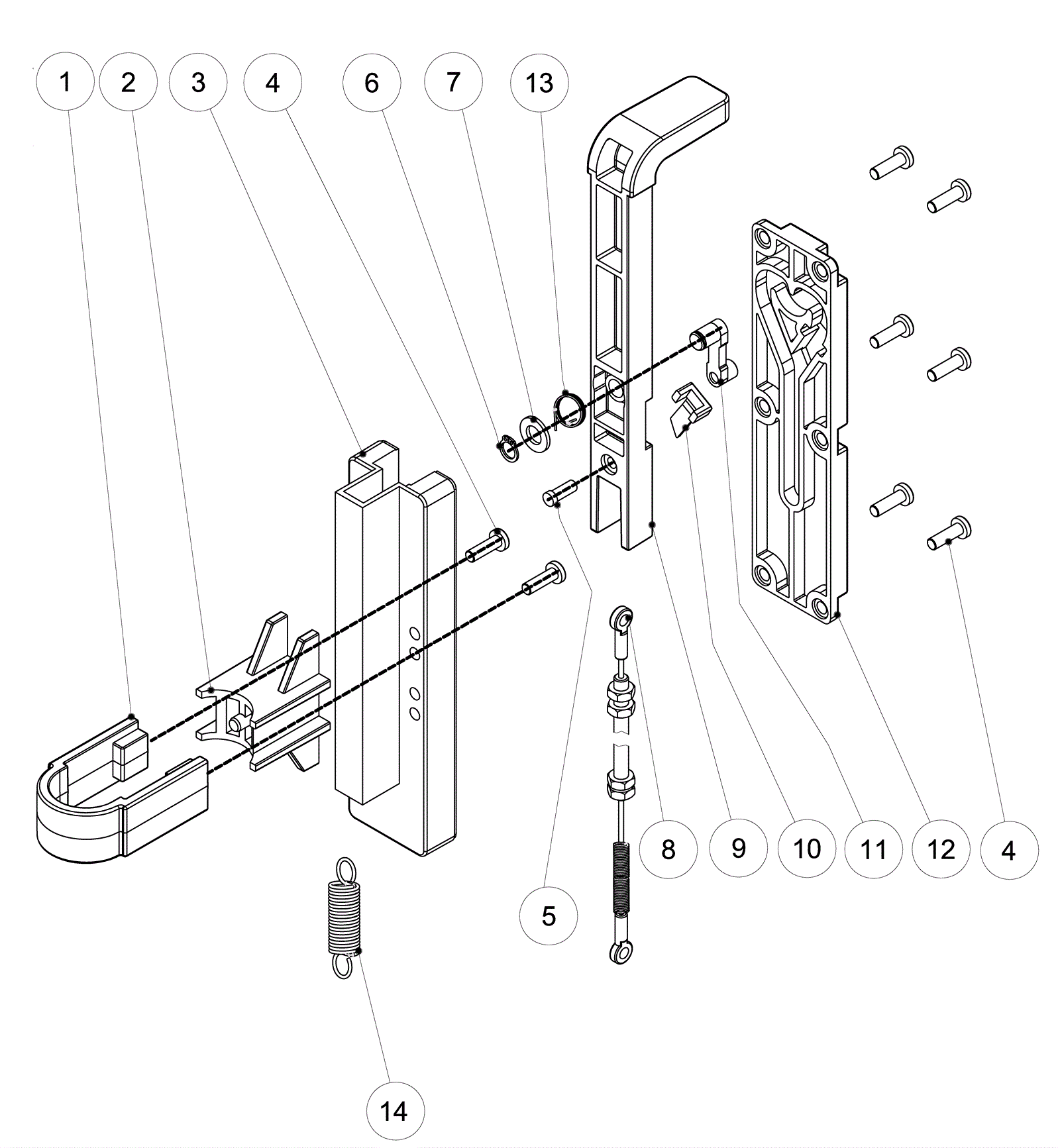

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-8614
|
Clamp |
1 |
|
|
2 |
164-8615
|
Support |
1 |
|
|
3 |
164-8627
|
Holder (OBSOLETE) |
1 |
(only available in 164-8620) |
|
4 |
164-8617
|
Screw |
8 |
|
|
5 |
164-8618
|
Screw |
1 |
|
|
6 |
164-8619
|
Snap ring |
1 |
|
|
7 |
164-8625
|
Washer |
1 |
|
|
8 |
164-6830
|
Cable |
1 |
|
|
9 |
164-8620
|
Handle lever and holder brackets |
1 |
(includes 3 and 11) |
|
10 |
164-8624
|
Spring |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(Cursor knob) (only available in 164-8620) |
|
12 |
164-8621
|
Closure |
1 |
|
|
13 |
164-8622
|
Torsion spring |
1 |
|
|
14 |
164-9740
|
Spring |
1 |
|
|
N/S |
164-8620
|
Handle lever and holder brackets |
1 |
|
|
