WRANGLER 1503AB

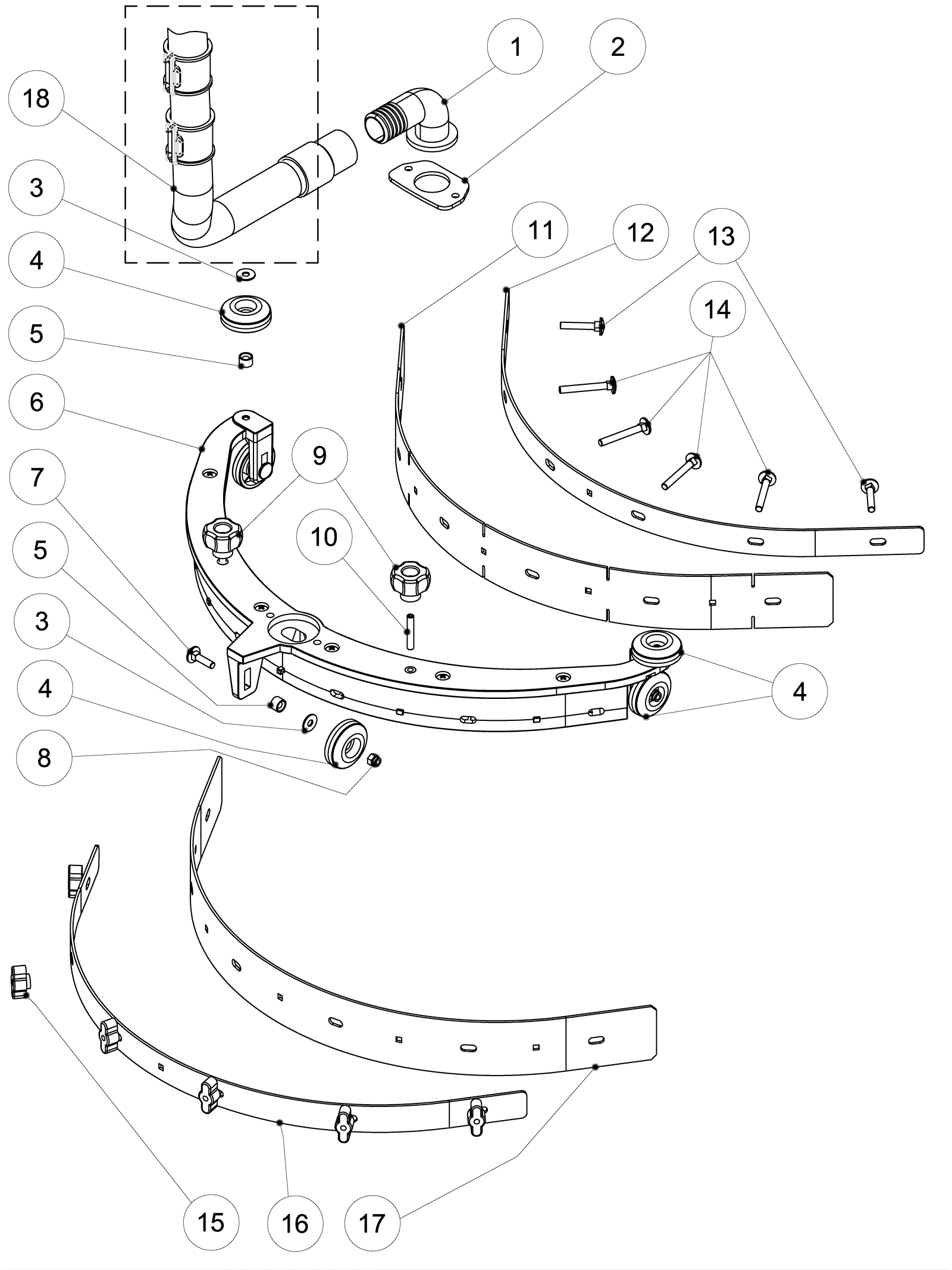

Squeegee Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
164-8301
Elbow connector
$31.61
1
usually ships 6-20 days
3
164-8602
Washer
$2.10
5
usually ships 6-20 days
4
164-8321
Wheel
$11.27
5
ships same day
5
164-8603
Spacer
$14.00
5
usually ships 6-20 days
6
164-8604
Squeegee bracket
$97.00
1
usually ships 6-20 days
7
164-8605
Screw
$3.72
3
usually ships 6-20 days
8
164-8720
Nut
$5.40
3
usually ships 6-20 days
9
164-8607
Squeegee knob
$12.85
2
usually ships 6-20 days
10
164-8608
Screw
$3.72
2
usually ships 6-20 days
11a
164-6826
Squeegee blade front
$82.23
1
ships same day
11b
164-9224
Front squeegee flap
$43.74
1
usually ships 6-20 days
12
164-8609
Retaining band
$62.35
1
usually ships 6-20 days
13
164-8610
Screw
$3.06
2
usually ships 6-20 days
14
164-8611
Screw
$4.14
4
usually ships 6-20 days
15
164-8612
Knob
$10.85
6
usually ships 6-20 days
16
164-8613
Rear retaining band
$74.15
1
usually ships 6-20 days
17a
164-6827
Squeegee blade rear
$88.44
1
ships same day
17b
164-9223
Rear squeegee flap
$48.30
1
ships same day
18
164-7487
Vacuum hose
$170.83
1
usually ships 6-20 days
