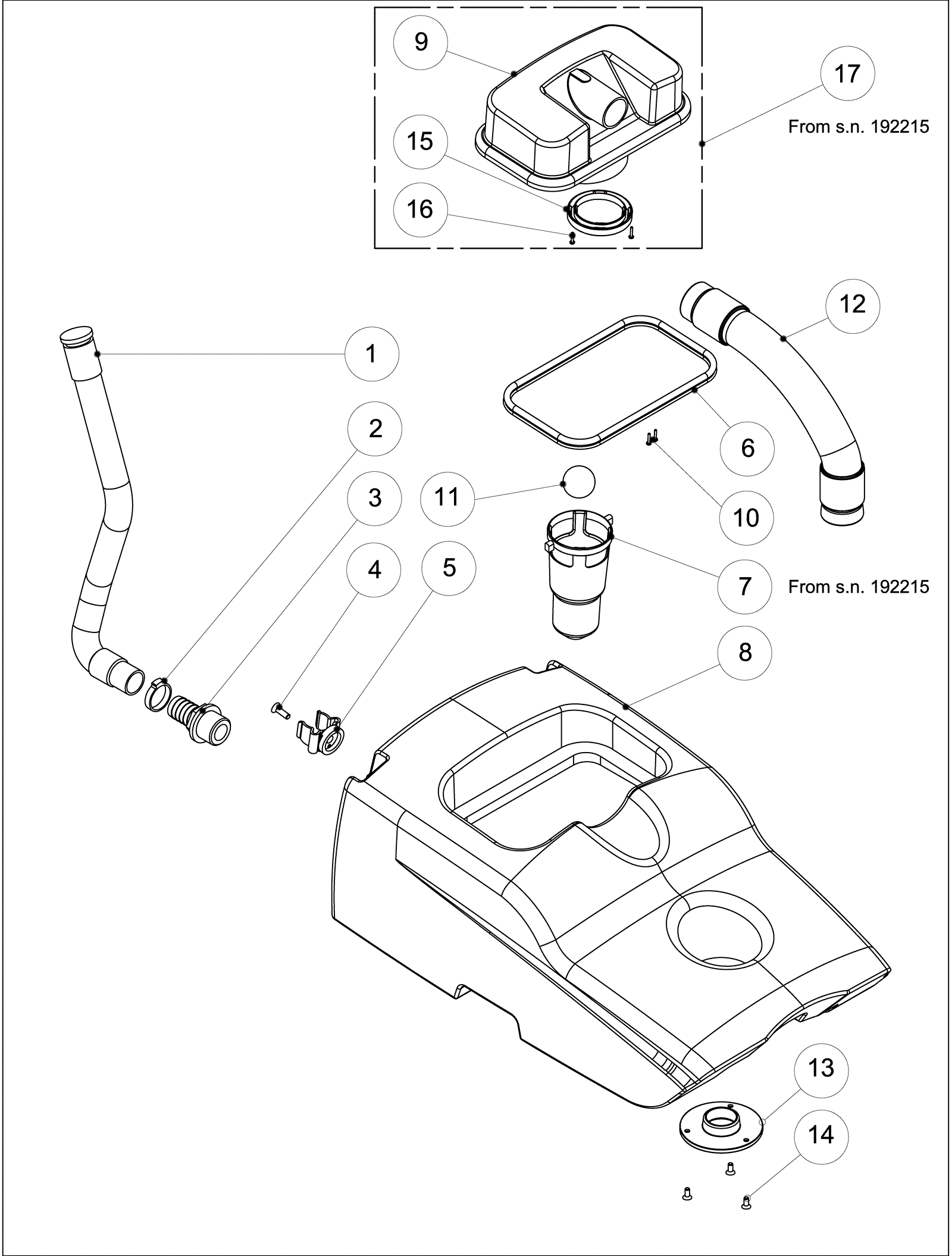

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-7454
|
Waste hose |
1 |
|
|
2 |
164-8586
|
Clamp |
1 |
|
|
3 |
164-8587
|
Hose connector |
1 |
|
|
4 |
164-8600
|
Screw |
1 |
|
|
5 |
164-8599
|
Clamp |
1 |
|
|
6 |
164-8588
|
Gasket |
1 |
|
|
7 |
164-8589
|
Ball cone holder |
1 |
|
|
8 |
164-8590
|
Recovery tank |
1 |
|
|
9 |
164-8591
|
Recovery tank lid |
1 |
|
|
10 |
164-8595
|
Screw |
2 |
|
|
11 |
164-6828
|
Float ball |
1 |
|
|
12 |
164-8592
|
Recovery tank hose |
1 |
|
|
13 |
164-8593
|
Lock off |
1 |
|
|
14 |
164-8596
|
Screw |
3 |
|
|
15 |
164-8594
|
Quick coupling |
1 |
|
|
16 |
164-8597
|
Screw |
2 |
|
|
17 |
164-8598
|
Ball float and lid assembly |
1 |
(includes 9,15 and 16) |
|
