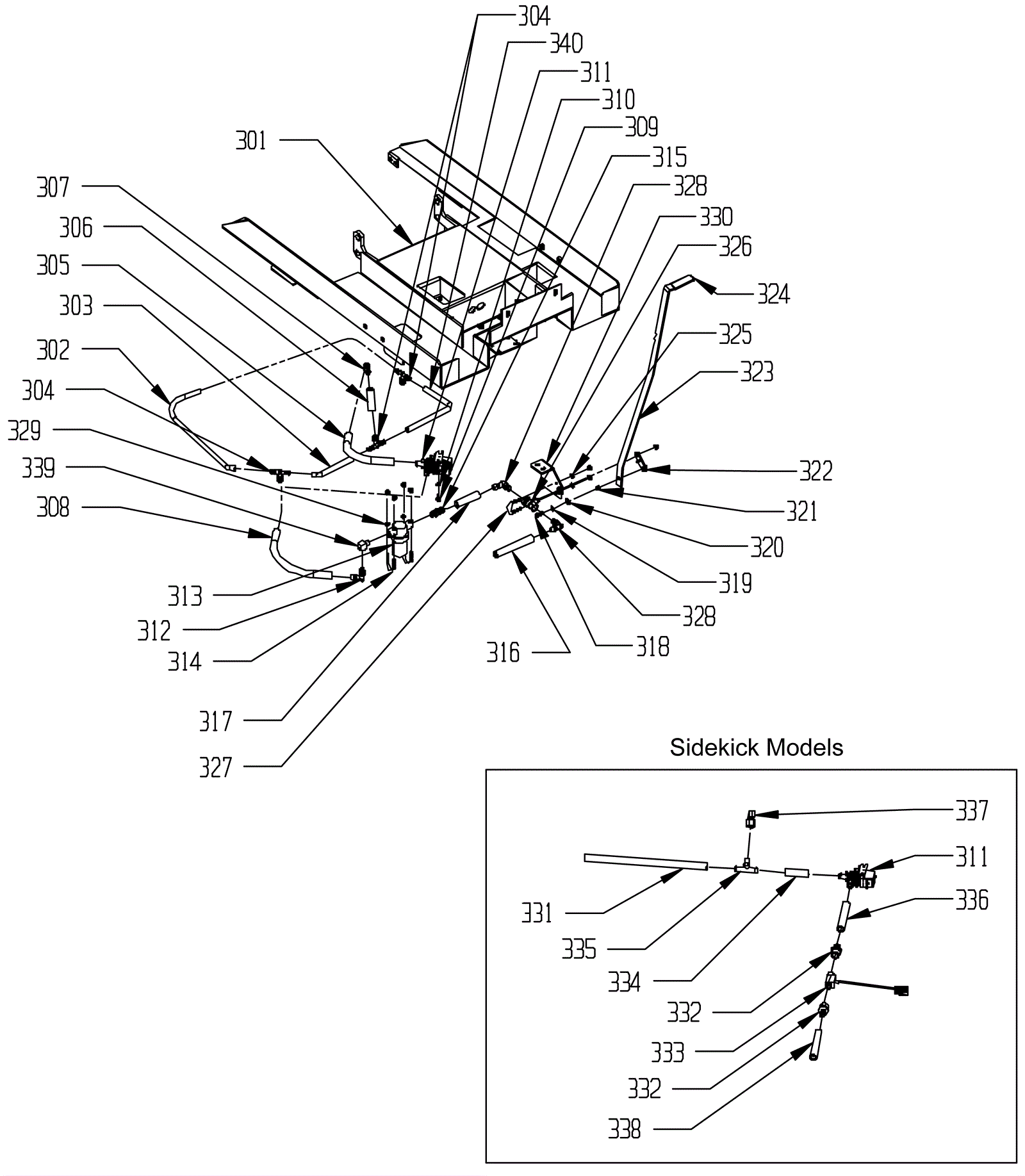

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
164-8174
|
Chassis |
1 |
|
|
302 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
2 feet |
(20-1/4 inch long) |
|
303 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
1 foot |
(6-1/8 inch long) |
|
304 |
164-1484
|
Tee |
3 |
|
|
305 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
2 feet |
(16-1/2 inch long) |
|
306 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 foot |
(1-3/4 inch long) |
|
307 |
164-8175
|
Barbed elbow |
1 |
|
|
308 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 foot |
(11-1/4 inch long) |
|
309 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
310 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
311 |
164-8176
|
Solenoid valve |
1 |
|
|
312 |
164-2584
|
Nylon fitting |
1 |
|
|
313a |
164-9126
|
Inline canister strainer |
1 |
(includes 313b and 313c) |
|
313b |
164-9128
|
Strainer element |
1 |
|
|
313c |
164-8177
|
Bowl and gasket kit |
1 |
(includes 313d and 313e) |
|
313d |
164-9129
|
Gasket |
1 |
|
|
313e |
164-8178
|
Bowl |
1 |
|
|
313f |
991-6024
|
Inline canister strainer |
|
|
|
314 |
164-1520
|
U-bolt |
2 |
|
|
315 |
164-1330
|
Hose barb |
1 |
|
|
316 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 foot |
(9 inch long) |
|
317 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 foot |
(3 inch long) |
|
318 |
999-1103
|
Bolt 1/4-20 x 3/4 hex head with nylon patch |
1 |
|
|
319 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
320 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
321 |
164-0136
|
Bushing |
1 |
|
|
322 |
164-8179
|
Solution valve lever |
1 |
|
|
323 |
164-0190
|
Solution valve lever |
1 |
|
|
324 |
164-0285
|
Valve lever grip |
1 |
|
|
325 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
326 |
164-1168
|
Solution valve |
1 |
|
|
327 |
164-1520
|
U-bolt |
1 |
|
|
328 |
164-2584
|
Nylon fitting |
2 |
|
|
329 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
330 |
164-8180
|
Solution valve bracket |
1 |
|
|
331 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
2 feet |
(13-1/4 inch long) (sidekick only) |
|
332 |
164-8127
|
3/8 fpt hose barb |
2 |
(sidekick only) |
|
333a |
164-8128
|
Flow sensor with connector |
1 |
(sidekick only) (includes 333b and 333c) |
|
333b |
164-8181
|
Female connector |
1 |
|
|
333c |
164-8182
|
Female terminal |
3 |
|
|
334 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 foot |
(4-3/4 inch long) (sidekick only) |
|
335 |
164-8129
|
Tee fitting |
1 |
|
|
336 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 |
(2-3/4 inch long) (sidekick only) |
|
337 |
164-8131
|
Fitting |
1 |
(sidekick only) |
|
338 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 foot |
(2-1/2 inch long) (sidekick only) |
|
339 |
164-0565
|
90 degree brass elbow |
1 |
|
|
340 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
2 feet |
(13-1/2 inch long) |
|
