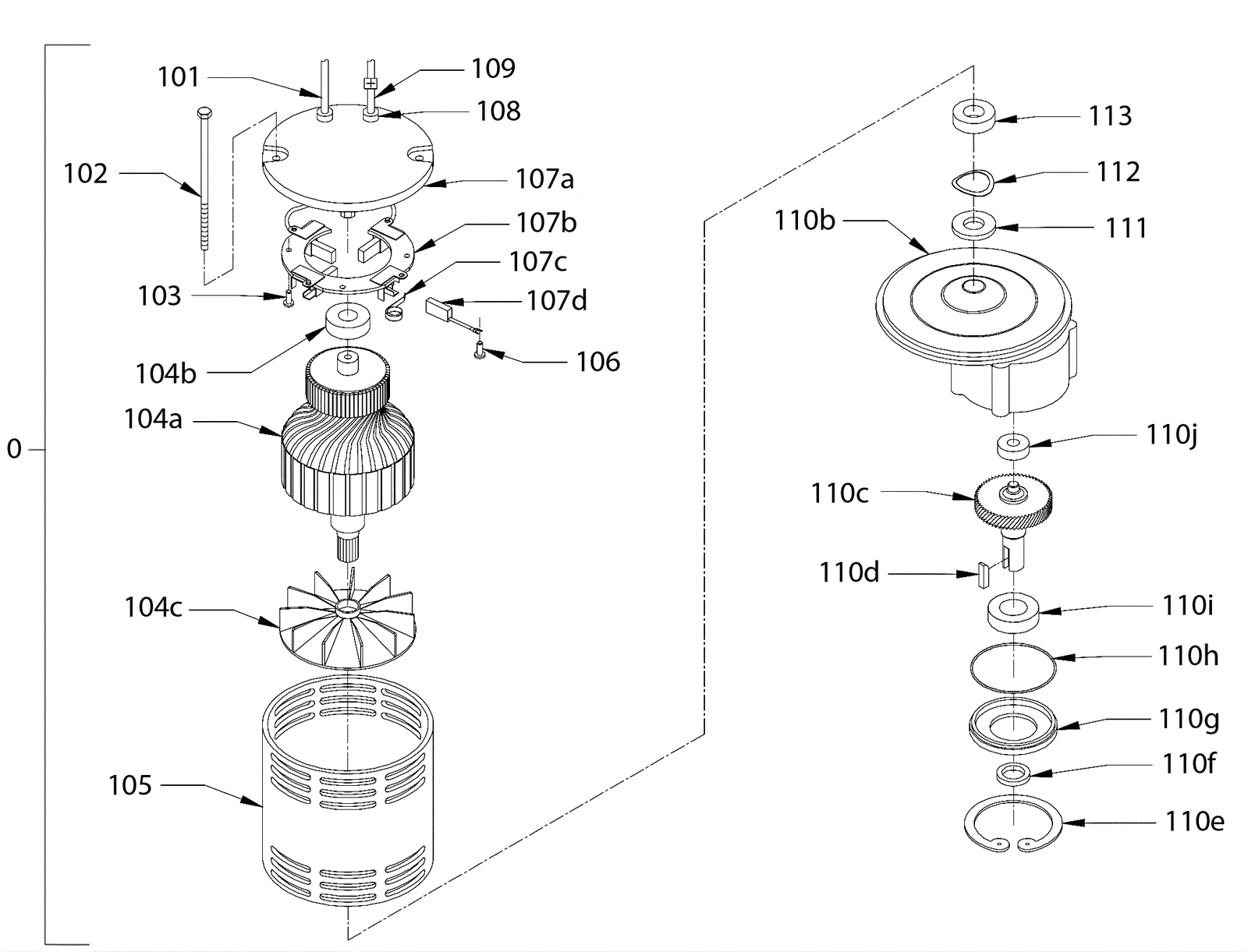

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
164-0834
|
24V brush gear motor assembly |
1 |
(includes 101-113) |
|
101 |
164-1095
|
Negative lead |
1 |
|
|
102 |
164-1157
|
Bolt 1/4-20 x 7 3/4 thru |
2 |
|
|
103 |
999-0555
|
Screw 10-24 x 1/2 round head slotted stainless steel |
2 |
|
|
104a |
164-1084
|
24V armature assembly (OBSOLETE) |
1 |
|
|
104b |
164-0329
|
Top rotor bearing |
1 |
|
|
104c |
164-0342
|
Armature vent fan |
1 |
|
|
105 |
164-0343
|
Stator frame assembly with magnets |
1 |
|
|
106 |
999-0111
|
Screw 10-32 x 1/2 round head slotted brass |
4 |
|
|
N/A |
N/A
|
Not available |
1 |
(top end bracket with brush board assembly) (includes 107a) |
|
107a |
164-0337
|
Top end bell (OBSOLETE) |
1 |
|
|
107b |
164-9490
|
Brush board assembly |
1 |
|
|
107c |
991-1505
|
Carbon brush (sold individually) |
4 |
|
|
107d |
264-0314
|
Carbon brush spring |
4 |
|
|
108 |
164-0345
|
Strain relief (OBSOLETE) |
2 |
|
|
109 |
164-1096
|
Positive lead |
1 |
|
|
110a |
164-0351
|
Gear box assembly |
1 |
(not shown) (includes 110b) |
|
110b |
164-0350
|
Gear box housing |
1 |
|
|
110c |
164-0353
|
Gear shaft |
1 |
|
|
110d |
164-0132
|
Square keyway 1/4 x 1/4 |
1 |
|
|
110e |
164-0359
|
Snap ring |
1 |
|
|
110f |
164-0358
|
Oil seal |
1 |
|
|
110g |
164-0357
|
End cap |
1 |
|
|
110h |
164-0356
|
O-ring |
1 |
|
|
110i |
164-0355
|
Bottom bearing large |
1 |
|
|
110j |
164-0352
|
Top bearing small |
1 |
|
|
111 |
164-0349
|
Oil seal |
1 |
|
|
112 |
164-0328
|
Washer 1 7/8 wave |
1 |
|
|
113 |
164-0355
|
Bottom bearing large |
1 |
|
|
