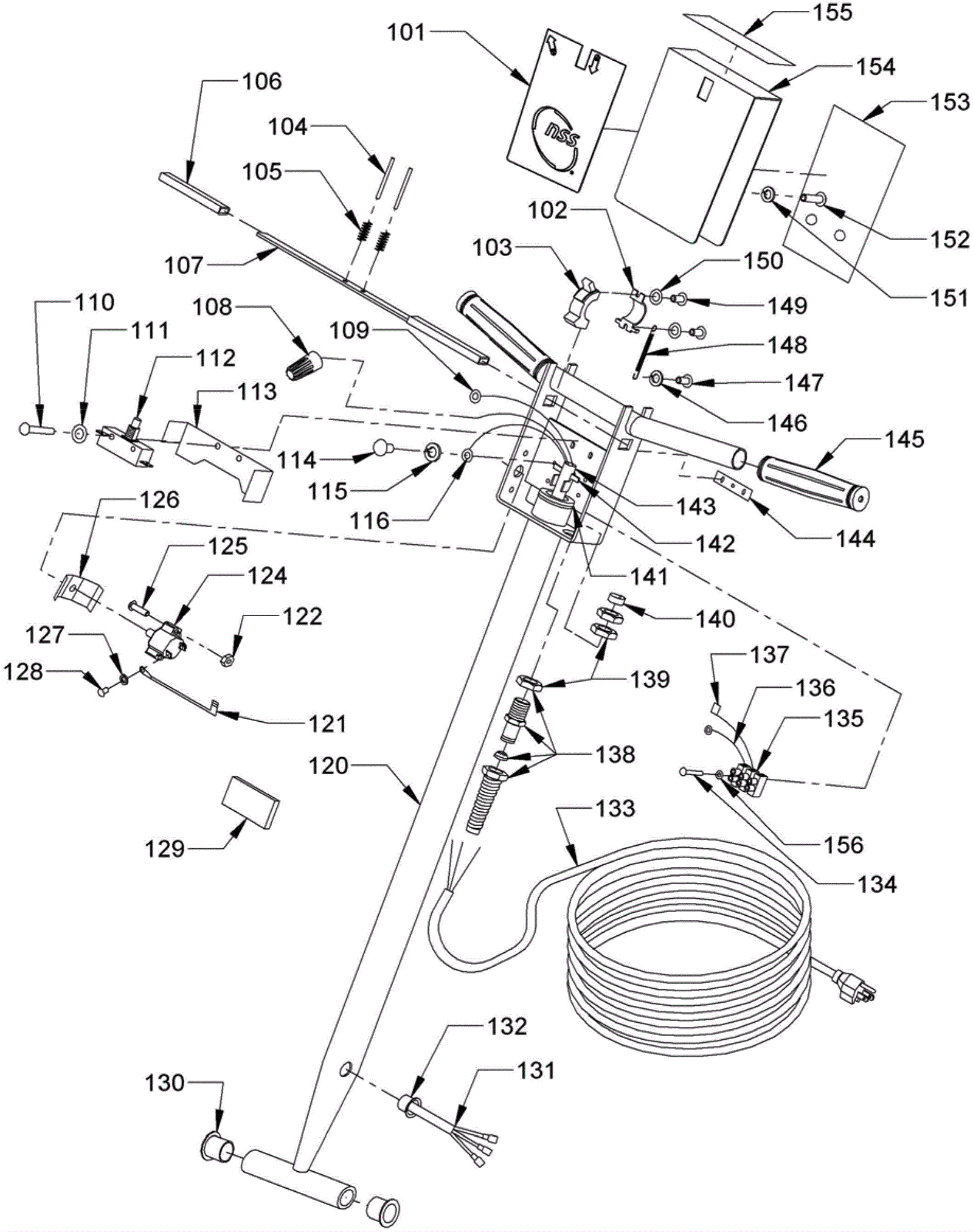

Handle Assembly

#PartDescription ReqNotesAvailability
000a 164-4485 Handle assembly (Mustang 300, 115V) 1
000b 164-7821 240V handle assembly 1
101 164-4436 Switch box with circuit breaker icon 1
102 164-5049 Safety lockout bracket 1
103 164-1856 Safety lockout 1
104 164-5051 Roll pin 2
105 164-5052 Spring 2
106 164-5054 Switch lever grip 2
107 164-1844 Switch lever 1
108 998-0061 Wire nut (orange) 1
109 164-1801 14-16 GA #8 Ring Terminal 1
110 999-0102 Screw 6-32 x 1 round head slotted zinc plated 2
111 999-0148 Washer #6 external star lock zinc plated 2
112 164-0015 Switch 1
113 164-5056 Switch insulator 1
114 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
115 999-0053 Washer #10 split lock plain finish 1
116 164-4649 10 ring terminal 1
120 164-5179 Handle 1
121 164-0793 Circuit breaker lead 1
122 999-0004 Nut 10-24 k-lock zinc plated 2
124a 164-1559 20amp circuit breaker 1
124b 164-0792 8 amp circuit breaker 1
125 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 2
126 164-0790 Breaker lead-insulation 1
127 999-0150 Washer #8 medium split lock 1
128 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 1
129 164-5058 Cushion pad 1
130 164-5041 Nylon bushing 2
131 164-4489 Handle cord with terminals (Mustang 300) 1
132 164-5175 Cord grommet 1
133a 164-5075 Cord strain relief 1 (OEM)
133b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
133c 164-4562 Shuko cord 240v 75ft 1
134 999-0245 Screw 6-32 x 3/4 round head phillips zinc plated 1
135 164-4423 Terminal block 1
136 164-4422 Wire assembly, ground/terminal block 1
137 164-4421 Wire assembly, deadman/terminal 1
138a 164-5075 Cord strain relief 1
138b 164-4502 Strain relief 1
139a 164-5074 Strain relief nut 2
139b 164-4516 Strain relief nut 1
140a 164-5073 Cord clamp 1
140b 164-7822 240V strain relief cord clamp 1
141 999-0035 Washer 3/8 x 1 1/2 fender 1
142 164-5061 Cord clamp 1
143 991-1401 Clear vinyl tubing (sold by the inch) 3 in
144 164-5057 Double hole switch speed nut 1
145 164-0016 Handle grip 2
146 999-0053 Washer #10 split lock plain finish 1
147 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
148 164-1842 Spring 1
149 164-1877 Screw M3-.05 x 8mm pan head phillips thread cutting 2
150 999-0148 Washer #6 external star lock zinc plated 2
151 999-0053 Washer #10 split lock plain finish 1
152 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
153 164-1816 Safety decal 1
154 164-5069 Metal switch box cover 1
155 164-5284 Identifier decal (Mustang 300DS) 1
156 999-0148 Washer #6 external star lock zinc plated 1
