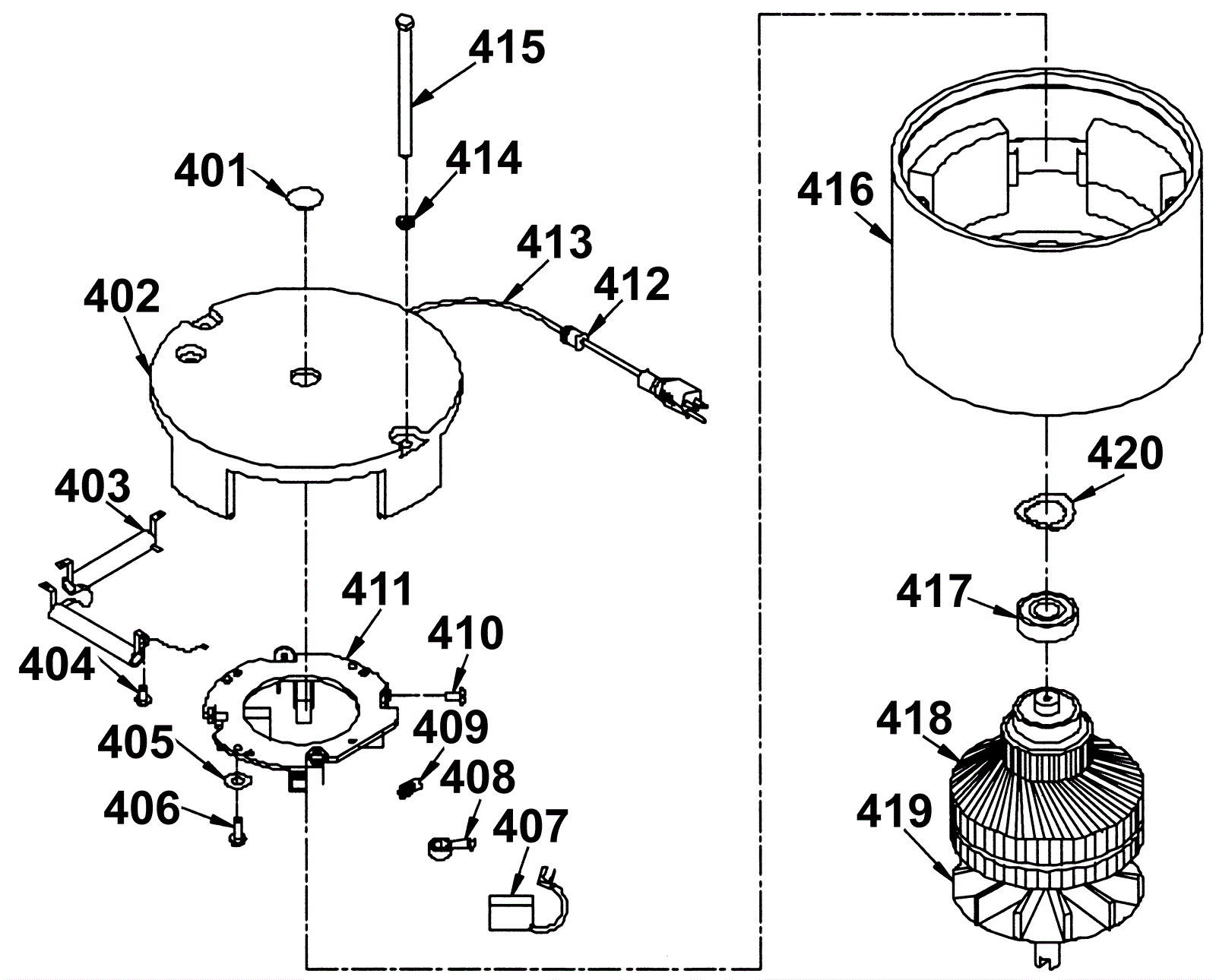

| # | Part | Description |
Req | Notes | Availability |
|---|
401 |
N/A
|
Not available |
1 |
Plug |
|
402a |
164-4336
|
Top end bell assembly with pig tail (OBSOLETE) |
1 |
|
|
402b |
164-0798
|
Top end bell (OBSOLETE) |
1 |
|
|
403 |
163-0063
|
240V rectifier |
2 |
60 amp |
|
404 |
999-0055
|
Screw 8-32 x 3/4 round head slotted zinc plated |
1 |
|
|
405 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
406 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
2 |
|
|
407 |
991-1826
|
Carbon brush for Ohio motor (set of 4) |
4 |
|
|
408 |
164-1298
|
Brush spring |
4 |
|
|
409 |
998-0061
|
Wire nut (orange) |
1 |
|
|
410 |
999-1153
|
Screw 10-24 x 1/4 binding head slotted brass plated |
4 |
|
|
411 |
164-1296
|
Brush ring assembly with dual rectifiers |
1 |
|
|
412 |
164-0796
|
Heyco strain relief |
1 |
|
|
413 |
164-5139
|
Pigtail cord (OBSOLETE) |
1 |
|
|
414 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
415 |
164-1320
|
Bolt 1/4-20 x 7 hex head thru |
2 |
|
|
416 |
164-1299
|
Frame with magnets 4 pole (OBSOLETE) |
1 |
|
|
417 |
164-0329
|
Top rotor bearing |
1 |
|
|
418 |
164-1302
|
Armature and vent fan assembly (OBSOLETE) |
1 |
|
|
419 |
164-3068
|
Vent fan |
1 |
|
|
420 |
999-0863
|
Washer 3/4 x 14 gauge narrow bushing |
2 |
|
|
