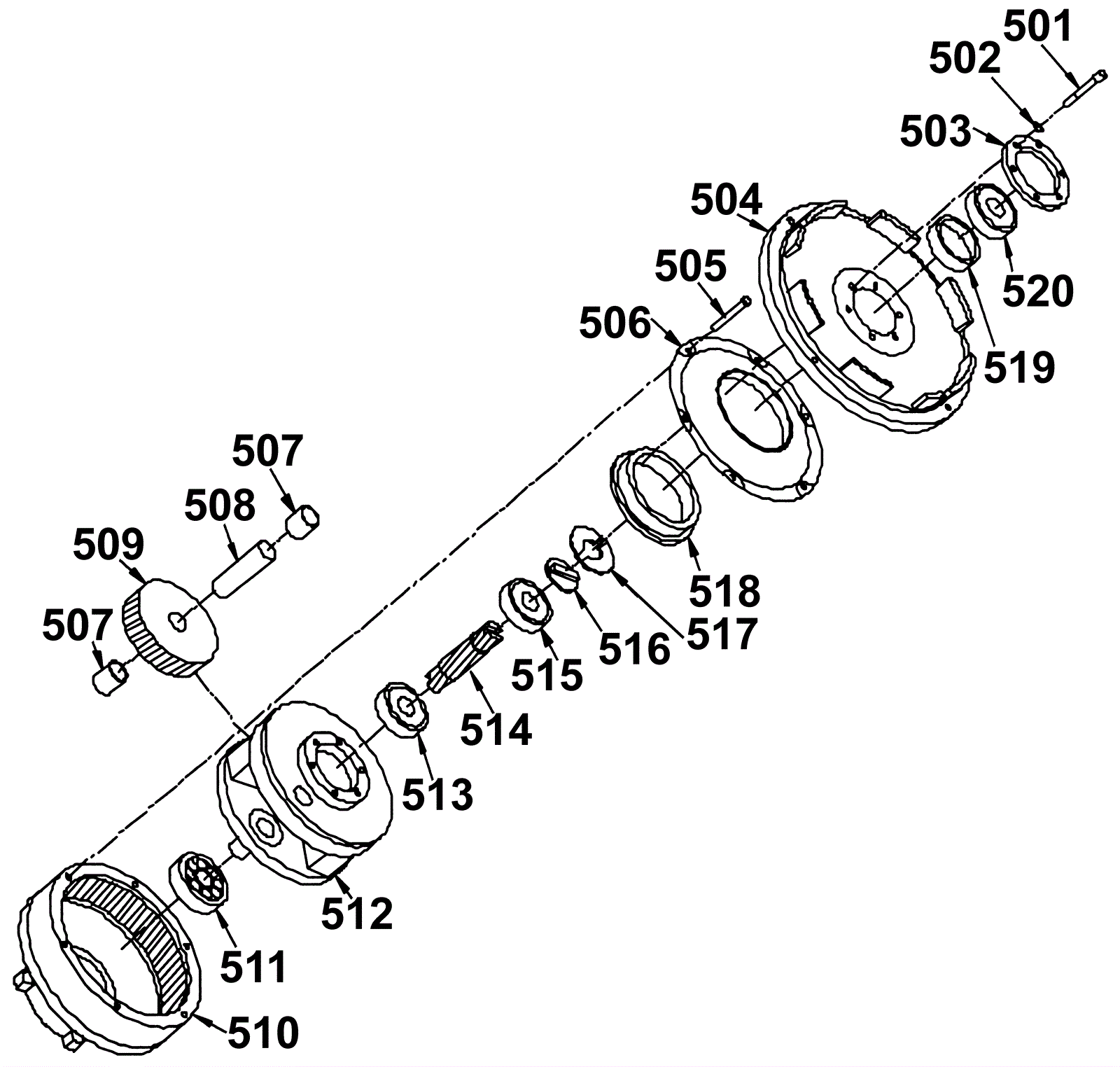

MAVERICK Gear Box Assembly

#PartDescriptionPriceReqNotesAvailability
501 164-0039 Screw 10-32 x 1-3/16 socket head cap $5.89 6 usually ships 1-5 days
502 999-0089 Washer #10 internal star lock zinc plated $0.99 6 ships same day
503 164-5098 Retainer plate $25.41 1 usually ships 1-5 days
504 164-5141 Gear Research motor end bell $245.19 1 usually ships 1-5 days
505 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 6 ships same day
506 164-5093 Gear housing bearing cover (OBSOLETE) $81.90 1 usually ships 1-5 days
507 164-5081 Gear Research idler shaft bearing (OBSOLETE) $17.27 6 usually ships 1-5 days
508 164-5083 Idler shaft $23.32 3 usually ships 1-5 days
509 164-5082 Idler gear $107.03 3 usually ships 1-5 days
510 164-5084 Gear housing (OBSOLETE) $107.36 1 usually ships 1-5 days
511 164-5085 Lower bearing $48.73 1 usually ships 1-5 days
512 164-5086 Idler cage (OBSOLETE) $151.53 1 usually ships 1-5 days
513 164-5087 Bearing $37.68 3 usually ships 1-5 days
514 164-5088 Gear Research pinion $78.65 1 usually ships 1-5 days
515 164-5087 Bearing $37.68 3 usually ships 1-5 days
516 170-0694 Odum coupling $13.41 1 ships same day
517 164-5091 Shaft washer $24.53 1 usually ships 8-23 days
518 164-5111 Bearing $126.28 1 usually ships 1-5 days
519 164-5096 Gear Research bearing spacer $16.34 1 usually ships 1-5 days
520 164-5087 Bearing $37.68 3 usually ships 1-5 days
