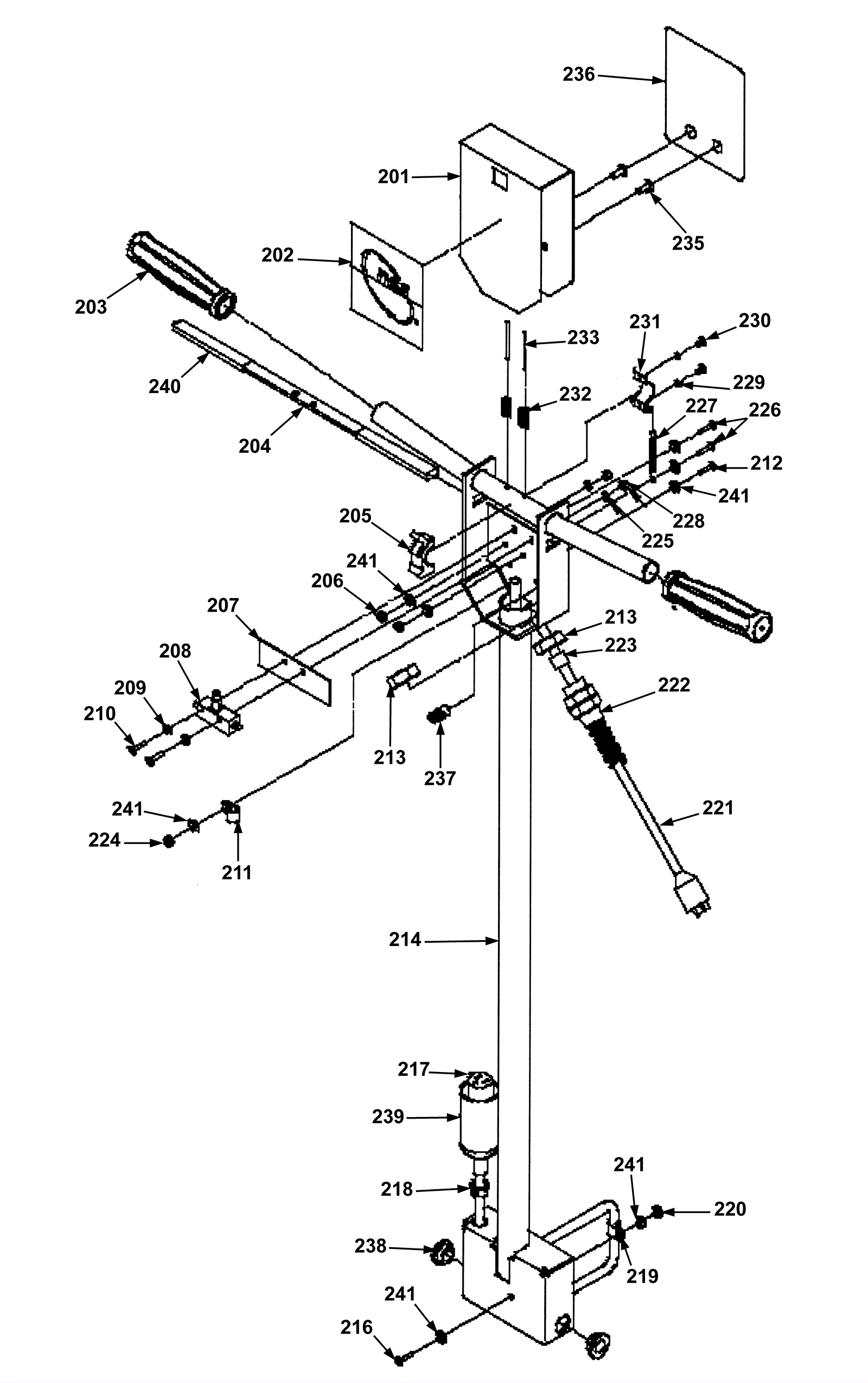

GALAXY 20 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
201 164-1840 Switch box cover $22.28 1 usually ships 18-33 days
202 164-1857 Decal (OBSOLETE) $23.65 1 usually ships 1-5 days
203 164-0016 Handle grip $4.55 2 ships same day
204 164-1844 Switch lever $10.42 1 usually ships 18-33 days
205 164-1856 Safety lockout $5.50 1 usually ships 18-33 days
206 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
207 164-1846 Switch insulator $2.38 1 usually ships 18-33 days
208 164-0015 Switch $34.66 1 ships same day
209 164-1874 Washer M3 flat $9.35 2 ships same day
210 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
211 164-0232 P clamp $2.57 1 usually ships 18-33 days
212 164-1880 Screw M4 - 5/64 x 16mm phillips pan head $1.91 1 usually ships 1-5 days
213 164-5074 Strain relief nut $2.84 2 usually ships 18-33 days
214 164-1841 Handle $185.08 1 ships same day
216 164-1880 Screw M4 - 5/64 x 16mm phillips pan head $1.91 1 usually ships 1-5 days
217 164-1850 Handle cord (OBSOLETE) $19.31 1 usually ships 18-33 days
218 164-1839 Heyco cord grommet $1.91 1 usually ships 18-33 days
219 164-0232 P clamp $2.57 1 usually ships 18-33 days
220 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
221a 164-5075 Cord strain relief $56.60 1 (OEM) usually ships 18-33 days
221b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) (does not include strain relief) ships same day
221c 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
222 164-5075 Cord strain relief $56.60 1 usually ships 18-33 days
223 164-1836 Crimp on cord clamp $1.91 1 ships same day
224 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
225 164-1874 Washer M3 flat $9.35 2 ships same day
226 164-1880 Screw M4 - 5/64 x 16mm phillips pan head $1.91 2 usually ships 1-5 days
227 164-1842 Spring $2.04 1 usually ships 18-33 days
228 164-1875 Nut M3-.05 hex nylon lock $1.91 2 usually ships 1-5 days
229 164-1873 Washer M3 exterior star lock $5.84 2 usually ships 18-33 days
230 164-1877 Screw M3-.05 x 8mm pan head phillips thread cutting $2.05 2 usually ships 18-33 days
231 164-5049 Safety lockout bracket $2.09 1 usually ships 18-33 days
232 164-1843 Switch lever spring $2.05 2 usually ships 18-33 days
233 164-1849 Roll pin $3.96 2 usually ships 18-33 days
235 164-1882 Screw M5 - 5/64 x 20mm phillips pan head $2.71 2 usually ships 18-33 days
236 164-1816 Safety decal $9.08 1 usually ships 1-5 days
237 998-0061 Wire nut (orange) $0.99 1 ships same day
238 164-1863 Lower handle bushing $12.87 2 ships same day
239 164-1862 Interconnect cord cover $3.56 1 usually ships 18-33 days
240 164-5054 Switch lever grip $2.18 2 usually ships 18-33 days
241 164-1878 Washer M4 flat $1.91 8 usually ships 1-5 days
