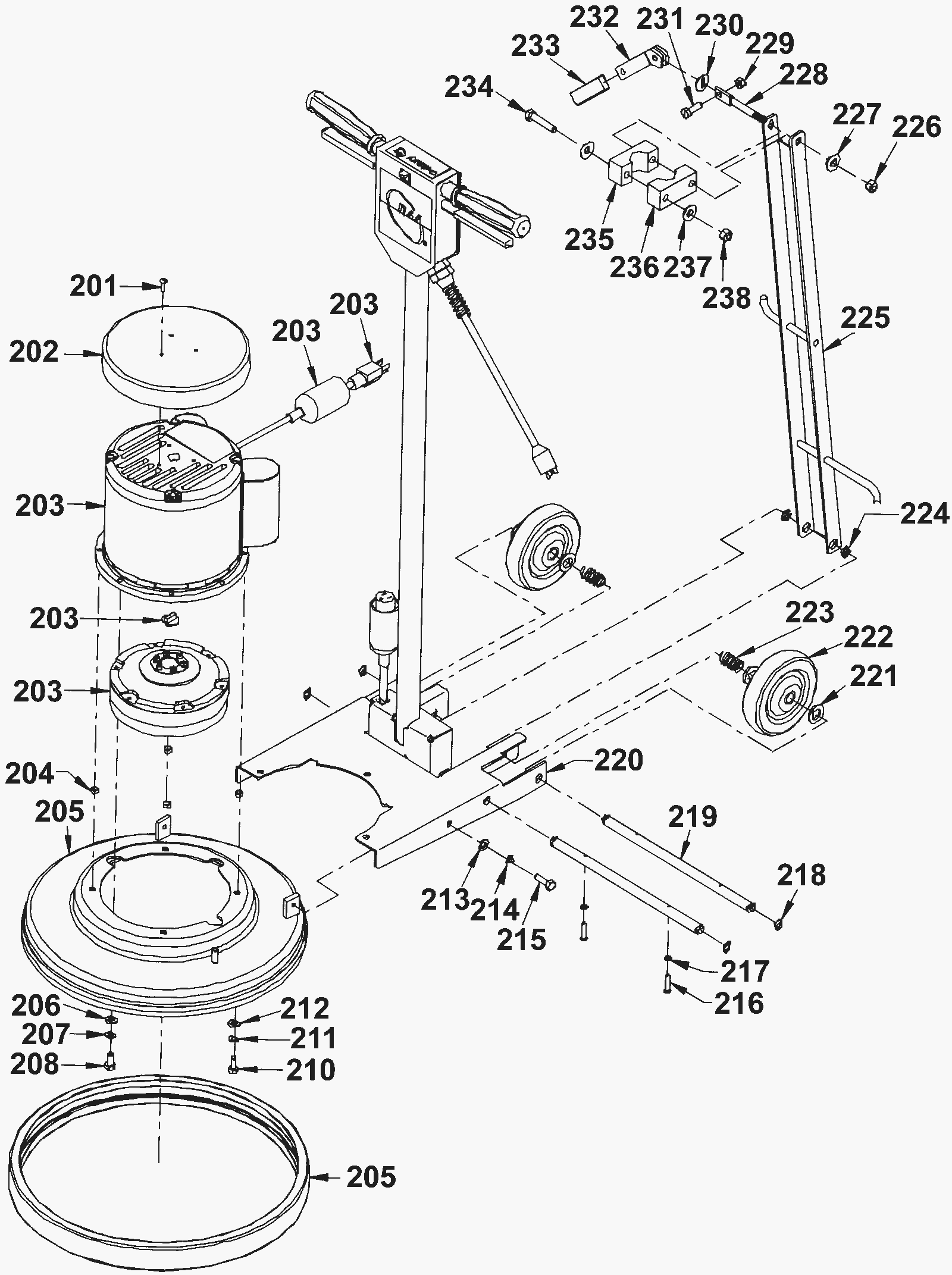

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
999-0256
|
Screw 10-32 x 1/2 truss head slotted zinc plated |
1 |
|
|
202 |
164-1821
|
Motor cover |
1 |
|
|
203a |
164-1864
|
120V 1.5HP motor and gearbox assembly |
1 |
(includes 203b and 203e-203k) |
|
203b |
164-8017
|
120V 1.5HP motor |
1 |
|
|
203c |
164-1820
|
120V 1HP motor and gearbox assembly |
1 |
(includes 203d and 203e-203k) |
|
203d |
164-1889
|
120V 1HP motor (OBSOLETE) |
1 |
|
|
203e |
164-1892
|
Run capacitor |
1 |
|
|
203f |
164-7370
|
Start capacitor |
1 |
|
|
203g |
164-7372
|
Stationary switch (all motors) |
1 |
|
|
203h |
164-1891
|
3 idler gearbox |
1 |
|
|
203i |
170-0694
|
Odum coupling |
1 |
|
|
203j |
164-1861
|
Plug and cord motor cover |
1 |
|
|
203k |
164-7375
|
Motor cord |
1 |
|
|
204 |
164-1835
|
Spacer |
4 |
|
|
205a |
164-1827
|
17 inch skirt and bumper assembly |
1 |
(includes both skirt and bumper) |
|
205b |
164-1828
|
20 inch skirt and bumper assembly |
1 |
(includes both skirt and bumper) |
|
206 |
164-1868
|
Washer 11/32 x 11/16 flat |
3 |
|
|
207 |
999-0028
|
Washer 5/16 split lock plain finish |
3 |
|
|
208 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
3 |
|
|
209a |
N/A
|
Not available |
1 |
(17 inch bumper - see 164-1827) |
|
209b |
N/A
|
Not available |
1 |
(20 inch bumper - see 164-1828) |
|
210 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
|
211 |
999-0028
|
Washer 5/16 split lock plain finish |
4 |
|
|
212 |
164-1868
|
Washer 11/32 x 11/16 flat |
4 |
|
|
213 |
164-1868
|
Washer 11/32 x 11/16 flat |
2 |
|
|
214 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
215 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
|
216 |
164-1883
|
Screw M5 - 5/64 x 30mm phillips pan head |
2 |
|
|
217 |
999-0743
|
Nut M5-.8 hex coarse thread |
2 |
|
|
218 |
164-1833
|
Retaining ring |
4 |
|
|
219 |
164-1831
|
Axle and handle pivot |
2 |
|
|
220 |
164-1812
|
Base |
1 |
|
|
221 |
164-1888
|
Washer M14 flat |
4 |
|
|
222 |
164-1832
|
5 inch wheel (blue) |
2 |
|
|
223 |
164-1826
|
Wheel spacer |
2 |
|
|
224 |
164-1825
|
Nyliner |
2 |
|
|
225 |
164-1813
|
Handle brace |
1 |
|
|
226 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
227 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
228 |
164-5160
|
Clamp bolt |
1 |
|
|
229 |
164-1885
|
Nut M8 x 1.25 hex with nylok insert |
1 |
|
|
230 |
164-1823
|
Washer slotted |
1 |
|
|
231 |
164-1886
|
Bolt M8 x 1.25 x 25mm hex head |
1 |
|
|
232 |
164-5159
|
Clamp lever |
1 |
|
|
233 |
164-0020
|
Handle grip |
1 |
|
|
234 |
999-1381
|
Screw M8 -1.25 x 65mm hex head |
1 |
|
|
235 |
N/A
|
Not available |
1 |
(Right handle clamp) (only available in kit 164-8454) |
|
236 |
N/A
|
Not available |
1 |
(Left handle clamp) (only available in kit 164-8454) |
|
237 |
164-1884
|
Washer M8 flat |
2 |
|
|
238 |
164-1885
|
Nut M8 x 1.25 hex with nylok insert |
1 |
|
|
N/S |
164-8454
|
Handle clamp kit |
1 |
|
|
