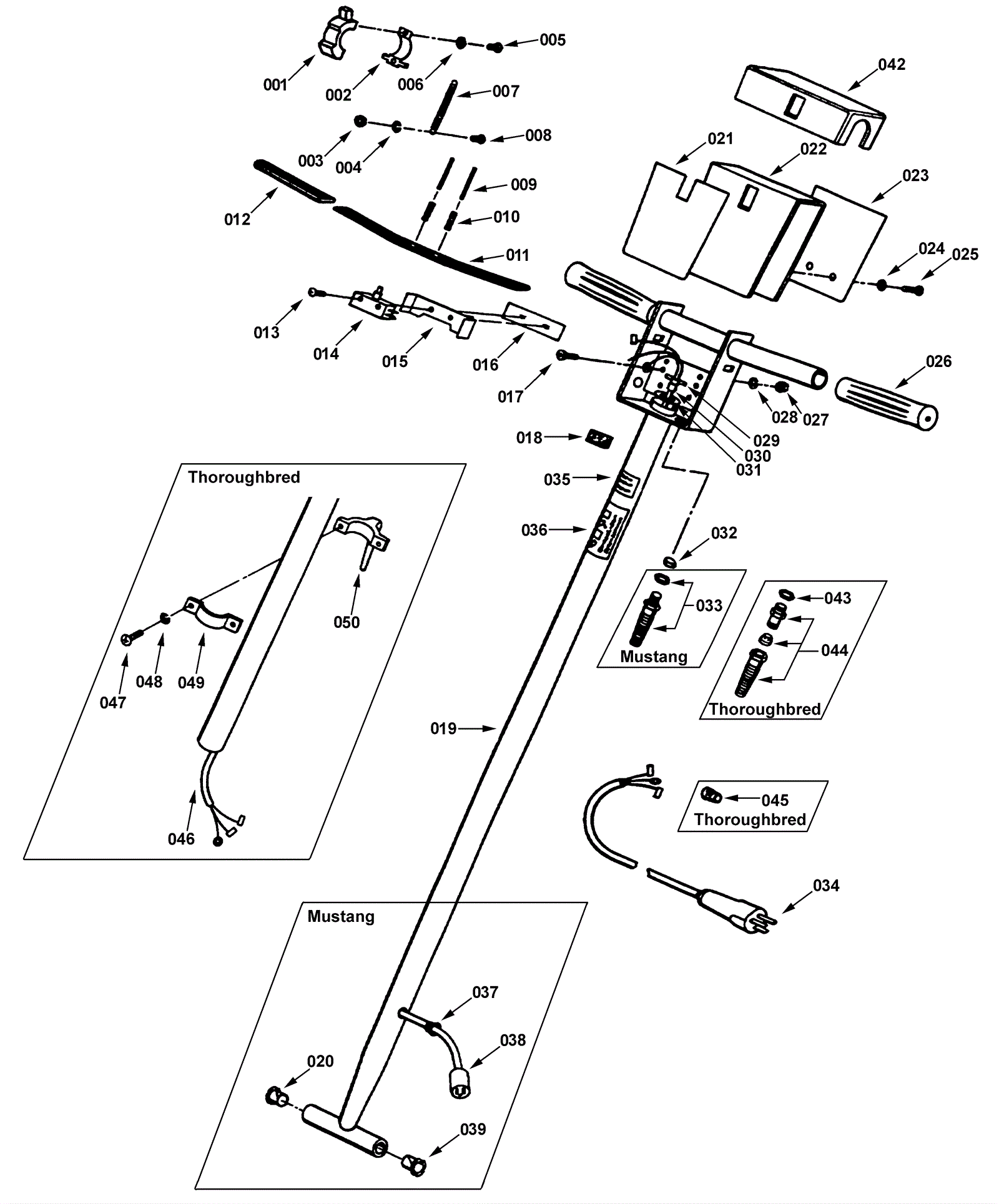

MUSTANG Handle Assembly

#PartDescription ReqNotesAvailability
001 164-5048 Safety lockout 1 usually ships 17-22 days
002 164-5049 Safety lockout bracket 1 usually ships 17-22 days
003 999-0062 Nut 10-24 hex 1 usually ships 11-14 days
004 999-0053 Washer #10 split lock plain finish 1 usually ships 11-14 days
005 999-0100 Screw 6-32 x 5/16 round head slotted zinc plated 2 usually ships 11-14 days
006 999-0051 Washer #6 medium split lock 2 usually ships 11-14 days
007 164-1842 Spring 1 usually ships 17-22 days
008 999-0101 Screw 10-24 x 5/16 round head slotted zinc plated 1 usually ships 11-14 days
009 164-5051 Roll pin 2 usually ships 17-22 days
010 164-5052 Spring 2 usually ships 17-22 days
011 164-5053 Switch lever with grips 1 usually ships 17-22 days
012 164-5054 Switch lever grip 2 usually ships 17-22 days
013 999-0102 Screw 6-32 x 1 round head slotted zinc plated 2 usually ships 11-14 days
014 164-0015 Switch 1 usually ships 15-16 days
015 164-5056 Switch insulator 1 usually ships 17-22 days
016 164-5057 Double hole switch speed nut 1 usually ships 17-22 days
017a 999-0206 Screw 10-24 x 3 round head slotted zinc plated 1 (Thoroughbred) usually ships 11-14 days
017b 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1 (Mustang) usually ships 11-14 days
018 164-5058 Cushion pad 1 usually ships 17-22 days
019a 164-5197 Handle 1 (Thoroughbred) usually ships 17-22 days
019b 164-5179 Handle 2 (Mustang) usually ships 17-22 days
020 164-5041 Nylon bushing 1 (Mustang) usually ships 17-22 days
021a 164-5067 Switch box decal (OBSOLETE) 1 (Thoroughbred) usually ships 1-5 days
021b 164-4435 Switch box label 1 (Mustang) usually ships 1-5 days
022 164-5069 Metal switch box cover 1 usually ships 17-22 days
023 164-4439 Operation decal (OBSOLETE) 1 usually ships 1-5 days
024 999-0053 Washer #10 split lock plain finish 2 usually ships 11-14 days
025 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 2 usually ships 11-14 days
026 164-0016 Handle grip 2 usually ships 17-22 days
027 999-0053 Washer #10 split lock plain finish 1 usually ships 11-14 days
028 999-0062 Nut 10-24 hex 1 usually ships 11-14 days
029 164-5061 Cord clamp 1 usually ships 17-22 days
030a 991-1401 Clear vinyl tubing (sold by the inch) 36 in (Thoroughbred) usually ships 9-12 days
030b 991-1401 Clear vinyl tubing (sold by the inch) 24 in (Mustang) usually ships 9-12 days
031 164-5072 Flat washer 1 usually ships 1-5 days
032 164-5073 Cord clamp 1 usually ships 17-22 days
033 164-5075 Cord strain relief 1 (Mustang) usually ships 17-22 days
034a 164-5077 14/3 power cord 50 foot 1 (OEM) (Mustang) usually ships 17-22 days
034b 164-5075 Cord strain relief 1 (OEM) (Thoroughbred) usually ships 17-22 days
034c 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief) usually ships 18-33 days
034d 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM) usually ships 18-33 days
035 164-5078 Decal kit 1 usually ships 17-22 days
036a 164-3162 Electrical caution label 1 usually ships 17-22 days
036b 164-3162 Electrical caution label 1 usually ships 17-22 days
037 164-5175 Cord grommet 1 (Mustang) usually ships 17-22 days
038 164-5176 Handle cord 1 (Mustang) usually ships 17-22 days
039 164-5041 Nylon bushing 1 (Mustang) usually ships 17-22 days
042 164-5068 Switch box vinyl cover (black) (OBSOLETE) 1 (Thoroughbred) usually ships 1-5 days
043 164-5074 Strain relief nut 1 (Thoroughbred) usually ships 17-22 days
044 164-5075 Cord strain relief 1 (Thoroughbred) usually ships 17-22 days
045 998-0061 Wire nut (orange) 1 (Thoroughbred) usually ships 11-14 days
046 164-5066 Interconnect cord (OBSOLETE) 1 (Thoroughbred) usually ships 1-5 days
047 999-0103 Screw 1/4-20 x 3/4 truss head slotted zinc 1 (Thoroughbred) usually ships 11-14 days
048 999-0060 Washer 1/4 split lock plain finish 1 (Thoroughbred) usually ships 11-14 days
049 164-5064 Cord hook clamp 1 (Thoroughbred) usually ships 17-22 days
050 164-5080 Cord hook 1 (Thoroughbred) usually ships 17-22 days
N/S 209-0013 4 gallon solution tank kit for round handle side x sides 1 usually ships 14-24 days
