| # | Part | Description |
Req | Notes | Availability |
|---|
500 |
164-2898
|

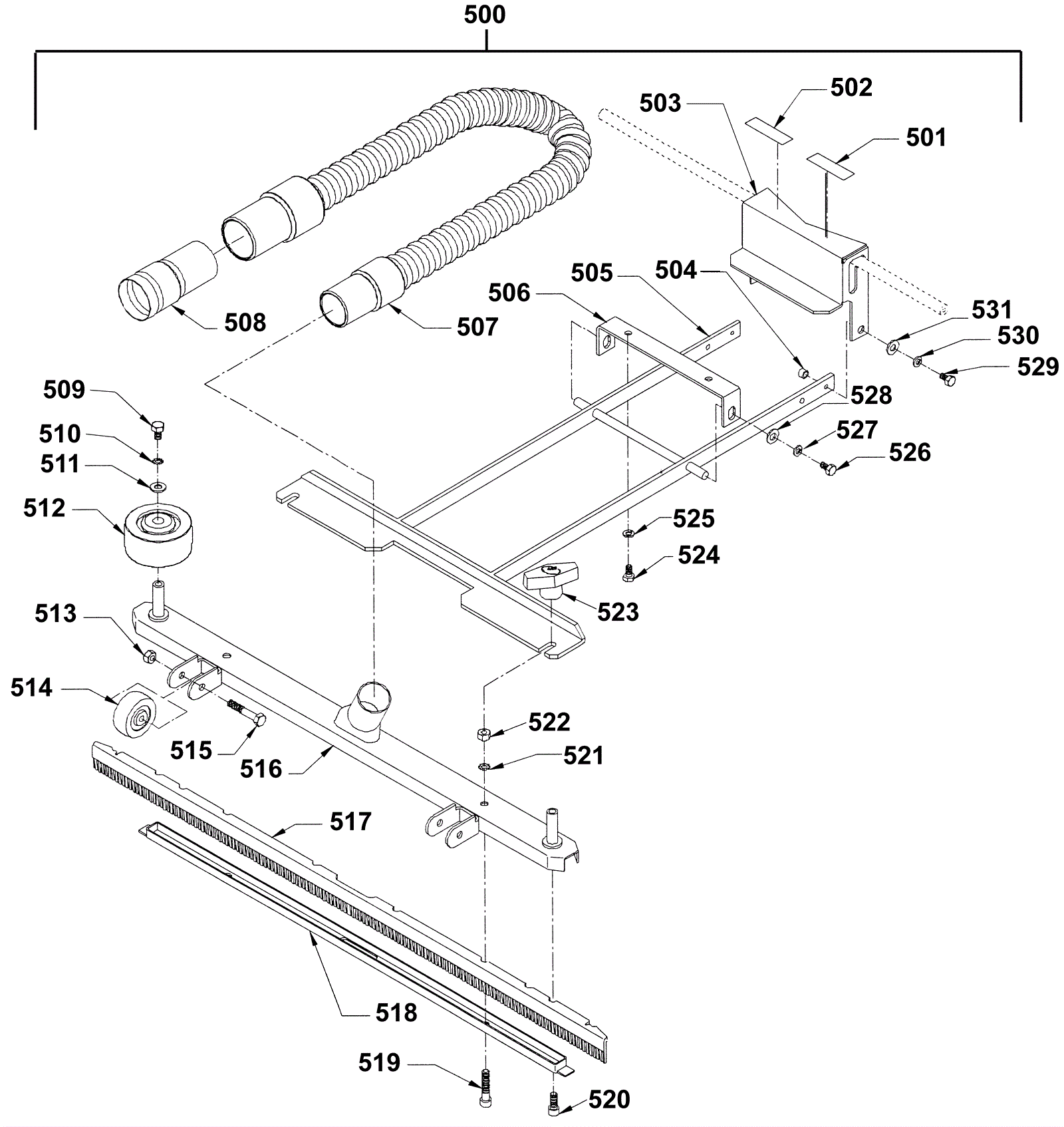

Front squeegee assembly |
1 |
Includes all items listed below |
|
501 |
164-7257
|
Press to raise decal |
1 |
|
|
502 |
164-7258
|
Push to lower decal |
1 |
|
|
503 |
164-7259
|
Foot pedal with latch (black) |
1 |
|
|
504 |
164-0136
|
Bushing |
2 |
|
|
505 |
164-7260
|
Mounting plate |
1 |
|
|
506 |
164-7261
|
Lower pivot bracket (black) |
1 |
|
|
507 |
164-2072
|
2 foot hose with cuffs |
1 |
|
|
508 |
164-2600
|
1 1/2 inch hose coupling |
1 |
|
|
509 |
999-0029
|
Bolt 5/16-18 x 1/2 hex head plain finish |
2 |
|
|
510 |
999-0105
|
Washer 5/16 external star lock zinc plated |
2 |
|
|
511 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
512 |
991-2009
|
3 inch bumper wheel |
2 |
|
|
513 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
514 |
991-2005
|
Small roller wheel (gray) |
2 |
|
|
515 |
164-0108
|
Left side skirt for Wrangler 27 |
2 |
|
|
516 |
164-2363
|
Outer channel |
1 |
|
|
517 |
164-0041
|
Squeegee blade 32 inch linatex kit (red) (front and rear) |
1 |
|
|
518 |
164-1327
|
Inner channel |
1 |
|
|
519 |
999-0179
|
Screw 5/16-18 x 1 1/2 socket head alloy plain finish |
2 |
|
|
520 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
2 |
|
|
521 |
999-0105
|
Washer 5/16 external star lock zinc plated |
2 |
|
|
522 |
999-0069
|
Nut 5/16-18 hex |
2 |
|
|
523 |
164-1565
|
Knob |
2 |
|
|
524 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
2 |
|
|
525 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
526 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
2 |
|
|
527 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
528 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
529 |
999-1103
|
Bolt 1/4-20 x 3/4 hex head with nylon patch |
2 |
|
|
530 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
531 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
N/S |
164-2337
|
Steel wand |
1 |
|
|
