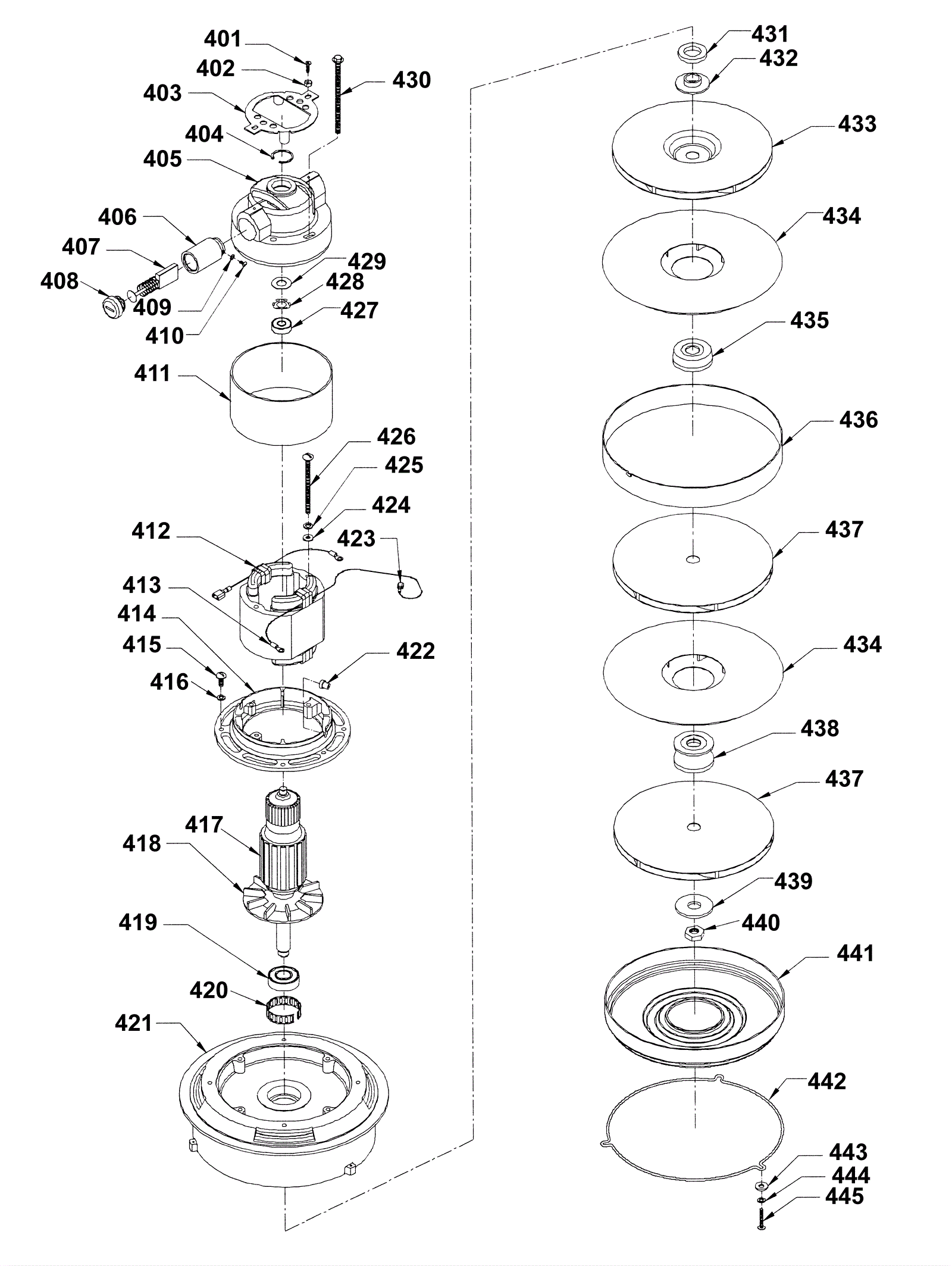

Motor

#PartDescription ReqNotesAvailability
401 999-0055 Screw 8-32 x 3/4 round head slotted zinc plated 2
402 999-0308 Nut 8-32 plain 2
403 164-1992 Top motor frame cover (OBSOLETE) 1
404 164-1947 Retaining ring 1
405 164-1904 Machined Upper End Bell 1
406 164-1949 Brush holder (OBSOLETE) 2
407 164-1925 Carbon brush 2
408 164-1979 Carbon brush cap 2
409 999-0148 Washer #6 external star lock zinc plated 2
410 164-7382 Screw 6-32 x 5/16 pan head slot machine brass (pkg of 10) 2
411 164-1941 Frame ring 1
412 164-1917 Field core and coils assy 1 Includes 413
413 164-1989 Ring terminal #6 2
414 164-1906 Lower end bell (OBSOLETE) 1
415 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 4
416 999-0053 Washer #10 split lock plain finish 4
417 164-1916 Arm and vent fan assy (OBSOLETE) 1 Includes 418
418 164-1970 Ranger vent fan 5/8 inch bore 1
419 164-1911 Lower bearing (OBSOLETE) 1
420 164-1910 Star tolerance ring 1
421 164-1907 End plate fan housing 1
422 164-1973 Field lead grommet (OBSOLETE) 2
423 164-4644 Female terminal 2
424 999-0998 Washer #10 flat stainless steel 2
425 999-0053 Washer #10 split lock plain finish 2
426 999-0206 Screw 10-24 x 3 round head slotted zinc plated 2
427 999-0053 Washer #10 split lock plain finish 1
428 164-1948 Spring washer 1
429 164-1943 Thrust washer (OBSOLETE) 1
430 164-1938 Bolt 10-24 x 4 hex washer head thru (OBSOLETE) 2
431 164-1955 Shaft seal 1
432 164-1913 Plated Spacer 1
433 164-1912 Offset fan 1
434 164-6227 Fan baffle 2
435 164-1922 Cone fan spacer 1
436 164-1942 Baffle holding strip 1
437 164-6228 7 inch fan 2
438 164-1927 Spool fan spacer 1
439 164-1928 Fan washer 1
440 164-1976 Shaft nut 1
441 164-1988 Fan cover 1
442 164-1987 Plated holding ring 1
443 999-0998 Washer #10 flat stainless steel 3
444 999-0053 Washer #10 split lock plain finish 3
445 999-0995 Screw 8-32 x 1 round head phillips zinc plated 3
