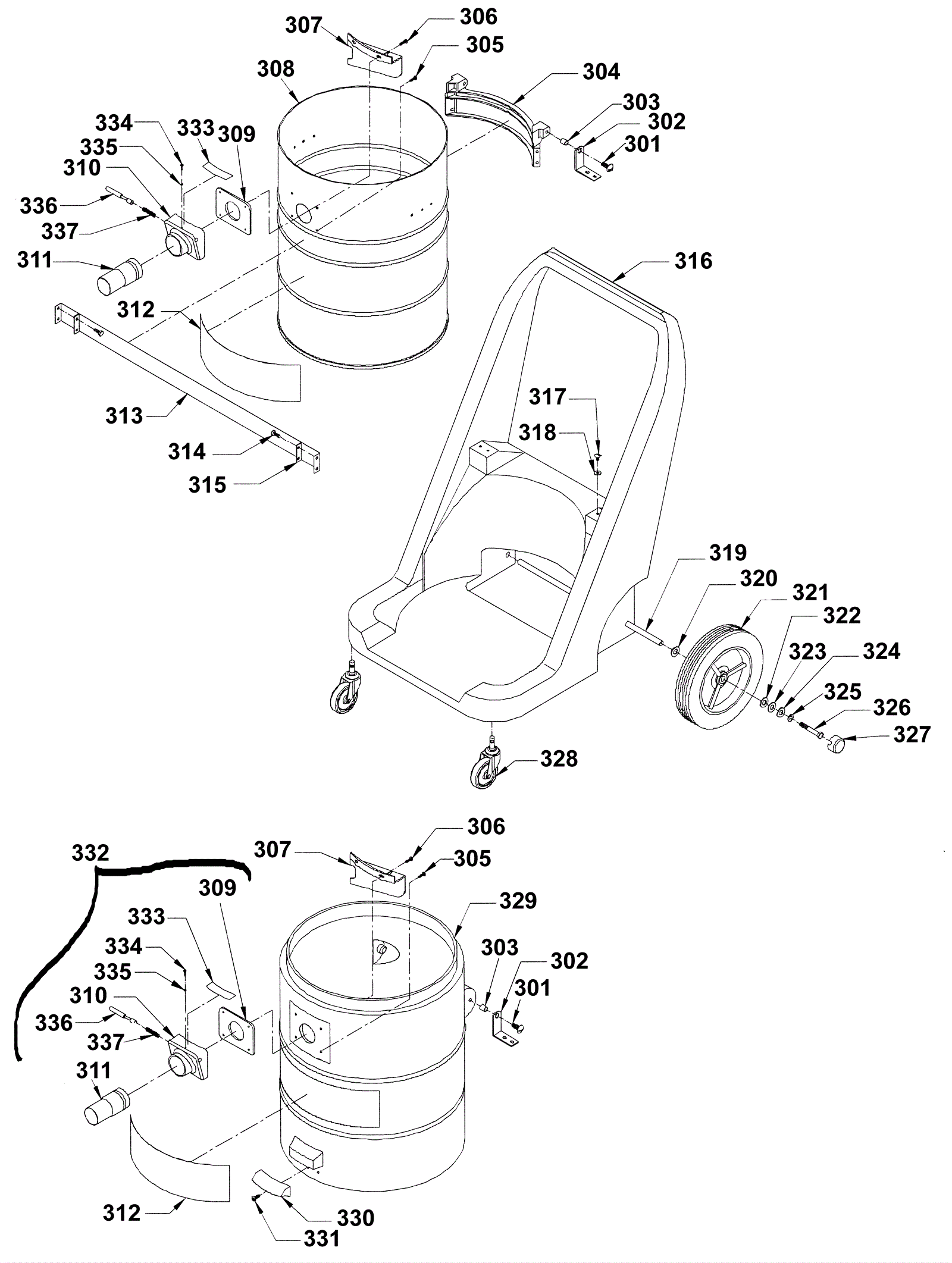

Containers With Tip Bases

#PartDescription ReqNotesAvailability
301 999-1241 Screw 3/8-16 x 2 1/2 round head phillips stainless steel 2
302 164-2063 Pivot bracket (black) 2
303 164-1794 Muffler spacer 2
304 164-1919 Machined Hinge Bracket 1
305 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc 2
306 999-0159 Screw 10-24 x 7/8 round head slotted zinc plated 2
307 164-5203 Intake baffle 1
308 164-1924 12 1/2 gallon tank stainless steel 1
309a 164-5204 Intake gasket 1
309b 164-5202 Intake assembly 1 Includes 310, 333, 334 and 335
310 164-1805 Polished intake 1
311 164-2600 1 1/2 inch hose coupling 1
312 164-3903 Front decal (OBSOLETE) 1
313 164-1929 Band clamp 1 1250
314 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 4 1250
315 164-1930 Band clamp plate 2
316 164-2065 Polypropelene tip base 1
317 999-0113 Screw 1/4-20 x 1/2 truss head slotted 4
318 999-0017 Washer 1/4 external star lock 4
319 164-2062 Tip base axle 1
320 164-5168 Flat nylon washer 2
321 164-4592 10 inch plastic wheel (white) 2
322 164-5168 Flat nylon washer 1
323 999-0024 Washer 5/16 flat stainless steel 2
324 999-0123 Washer 1/4 SAE flat zinc plated 2
325 999-0060 Washer 1/4 split lock plain finish 2
326 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
327 N/A Not available 2 (Hubcap)
328 164-0037 Caster wheel 2
330 164-1997 Container handle (for polypropolene tank) 1 1450
331 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 3
332 164-1806 Intake assembly with gasket 1 Includes 309a, 309b, 310, 333, 334, 335, 336 and 337
333 164-2106 Bag instruction decal 1
334 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 1
335 999-0150 Washer #8 medium split lock 1
336 164-1809 Plunger pin 1
337 164-1808 Plunger spring 1
