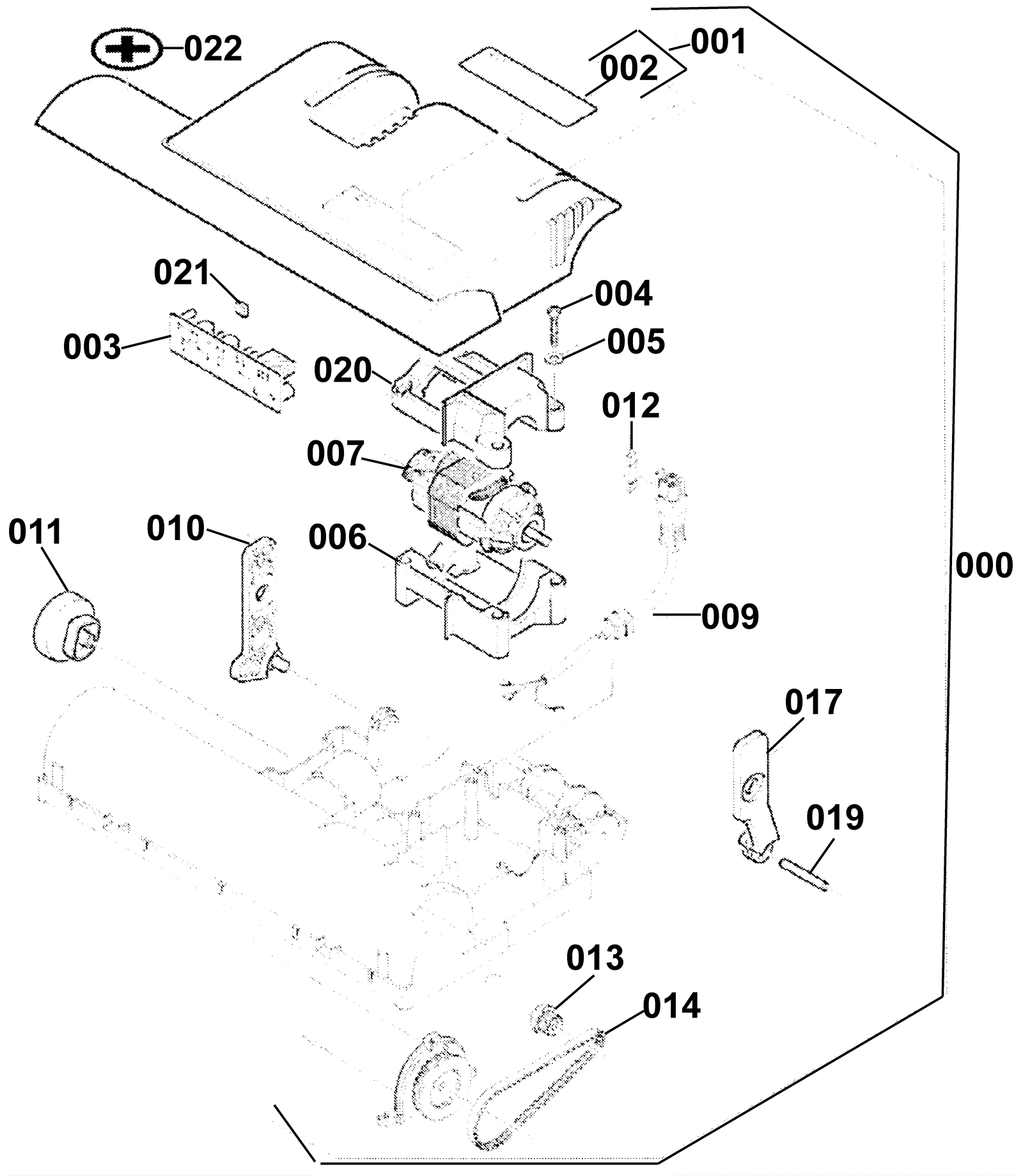

| # | Part | Description | Price | Req | Notes | Availability |
|---|
000a |
164-7272
|
Brush head assembly |
$778.14
|
1 |
(includes 1-22) (includes top and bottom assembly) |
usually ships 1-5 days |
000b |
164-7282
|
Brush head assembly 240V, black |
$823.68
|
1 |
(includes 1-22) (includes top and bottom assembly) |
usually ships 1-5 days |
001 |
164-7273
|
Top cover |
$129.64
|
1 |
|
usually ships 8-23 days |
002 |
164-7283
|
Decal pacer |
$26.62
|
1 |
|
usually ships 8-23 days |
003a |
164-6151
|
Brush circuit board 115V |
$92.68
|
1 |
|
usually ships 8-23 days |
003b |
164-6663
|
P.C. board, 240V-brush |
$75.24
|
1 |
|
usually ships 1-5 days |
004 |
164-7284
|
Screw M4 x 16 oval head |
$2.18
|
4 |
|
usually ships 1-5 days |
005 |
164-6153
|
Washer 4.3 |
$2.64
|
4 |
|
usually ships 1-5 days |
006 |
164-6154
|
Guard brush motor |
$41.03
|
1 |
|
usually ships 1-5 days |
007a |
164-0813
|
Brush motor with wires - OB kit |
$177.49
|
1 |
|
usually ships 8-23 days |
007b |
164-6665
|
Brush motor, 240V (OBSOLETE) |
$136.35
|
1 |
|
usually ships 1-5 days |
009 |
164-0809
|
Cord w/ strain relief for brush head |
$58.69
|
1 |
|
usually ships 1-5 days |
010 |
164-6155
|
Right support arm |
$19.36
|
1 |
|
usually ships 1-5 days |
011 |
164-6156
|
Height adjusting knob (OBSOLETE) |
$9.90
|
1 |
|
usually ships 1-5 days |
012 |
164-7181
|
Plug retaining finger |
$6.44
|
1 |
|
ships same day |
013 |
164-6157
|
Brush motor pulley (OBSOLETE) |
$9.08
|
1 |
|
usually ships 1-5 days |
014 |
164-6097
|
Timing belt |
$25.01
|
1 |
|
usually ships 8-23 days |
017 |
164-6158
|
Left support arm |
$30.14
|
1 |
|
usually ships 8-23 days |
019 |
164-6159
|
Arm support pin |
$8.80
|
1 |
|
usually ships 1-5 days |
020 |
164-6211
|
Bottom brush motor guard |
$34.76
|
1 |
|
usually ships 1-5 days |
021 |
164-6765
|
Rubber band (OBSOLETE) |
$2.90
|
1 |
|
usually ships 1-5 days |
022 |
164-7024
|
Do not step on label |
$5.50
|
1 |
|
usually ships 1-5 days |
