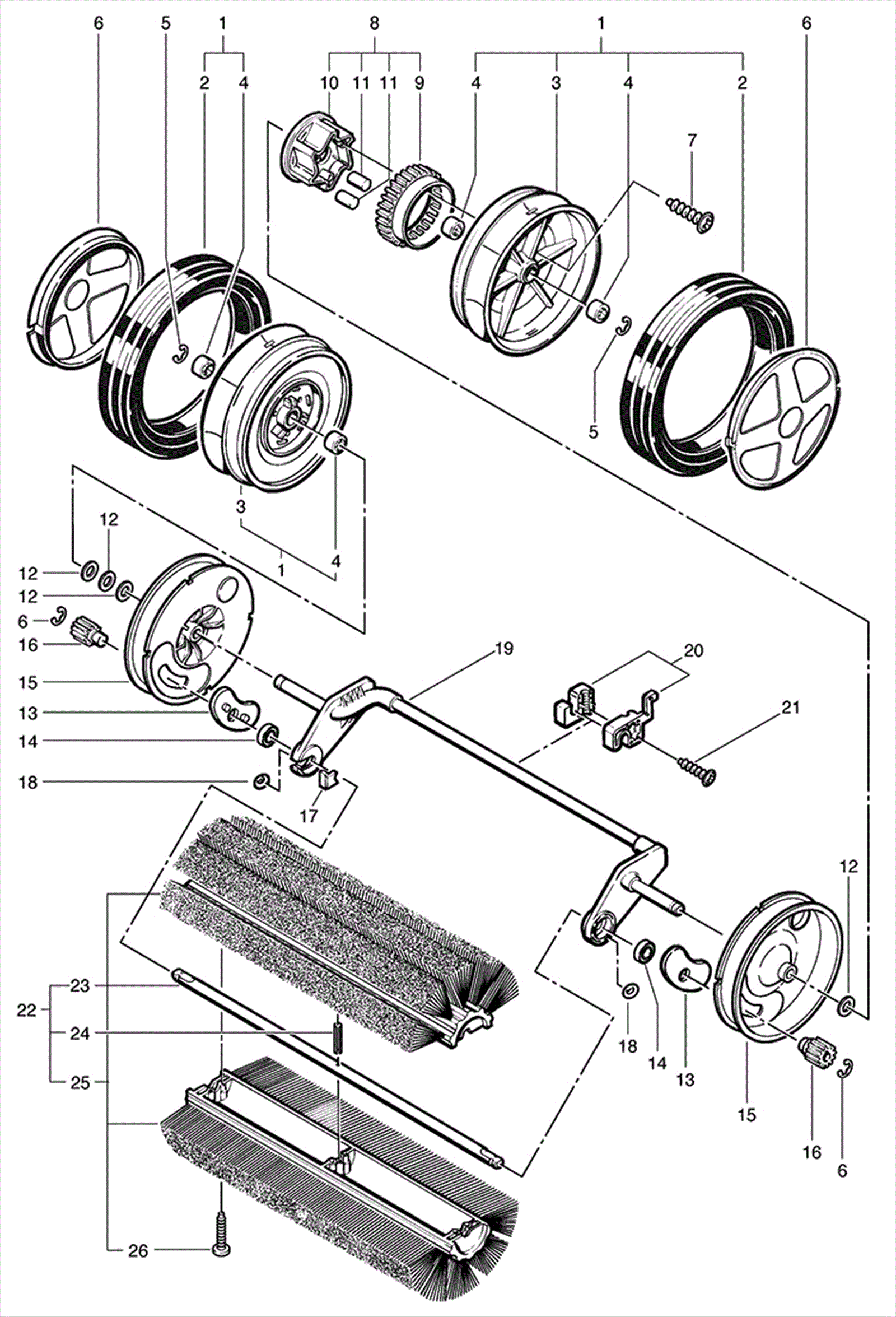

Main Brush

#PartDescription ReqNotesAvailability
1 164-5836 Wheel assembly 2 (includes 2-4)
2 164-5838 Tire 2
3 164-5839 Wheel rim 2
4 164-5856 Bearing wheel 4
5 164-9952 Retaining ring 2
6 164-5837 Hub cap 2
7 164-5870 Screw- 60 x 25mm 1
8 N/A Not available 1 (drive assembly) (includes 9-11)
9 164-5857 Gear rim (48) 1
10 164-5840 Pivot hub 1
11 164-5841 Drive roll 1
12 N/A Not available 4 (washer)
13 164-5845 Covering piece 2
14 164-9951 Ball bearing 2
15 164-5842 Wheel 2
16 164-5843 Annular gear- (12) 2
17 N/A Not available 1 (cover)
18 164-9953 O-ring 1
19 164-5846 Axle 1
20 N/A Not available 1 (adjustment block)
21 N/A Not available 1 (screw)
22 N/A Not available 1 (Main broom assembly) (includes 23-25)
23 164-5851 Brush axle 1
24 N/A Not available 1 (pin)
25 164-5850 Main broom- 2 pieces 1
26 N/A Not available 3 (screw)
