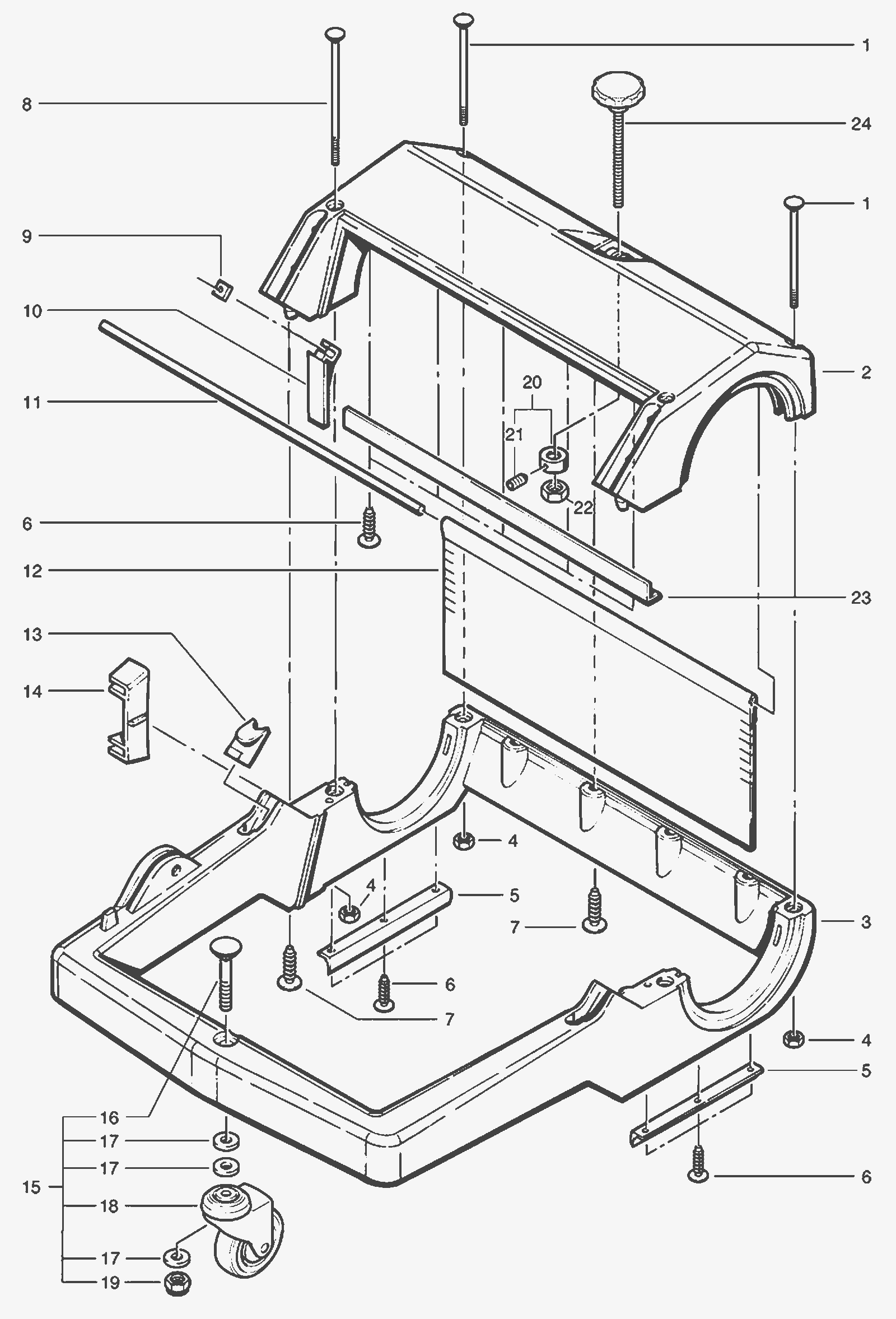

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(long screw) |
|
2 |
N/A
|
Not available |
1 |
(rear housing) |
|
3 |
N/A
|
Not available |
1 |
(main frame) |
|
4 |
N/A
|
Not available |
4 |
(nut) |
|
5 |
164-5832
|
Short seal |
2 |
|
|
6 |
N/A
|
Not available |
2 |
(screw) |
|
7 |
N/A
|
Not available |
3 |
(screw) |
|
8 |
N/A
|
Not available |
2 |
(long screw) |
|
9 |
N/A
|
Not available |
1 |
(nut) |
|
10 |
N/A
|
Not available |
1 |
(nut support) |
|
11 |
N/A
|
Not available |
1 |
(support rod) |
|
12 |
164-5830
|
Rear floor seal |
1 |
|
|
13 |
N/A
|
Not available |
1 |
|
|
14 |
164-5834
|
Belt guide |
1 |
|
|
15 |
N/A
|
Not available |
1 |
(caster) (includes 16-19) |
|
16 |
N/A
|
Not available |
1 |
(long screw) |
|
17 |
N/A
|
Not available |
3 |
(washer) |
|
18 |
164-5835
|
Caster |
1 |
|
|
19 |
164-9949
|
Stop nut |
1 |
|
|
20 |
164-9950
|
Set screw collar |
1 |
(includes 21) |
|
21 |
164-9950
|
Set screw collar |
1 |
(screw) |
|
22 |
N/A
|
Not available |
1 |
(nut) |
|
23 |
164-5828
|
Hopper seal (OBSOLETE) |
1 |
|
|
24 |
164-5829
|
Adjustment knob |
1 |
|
|
