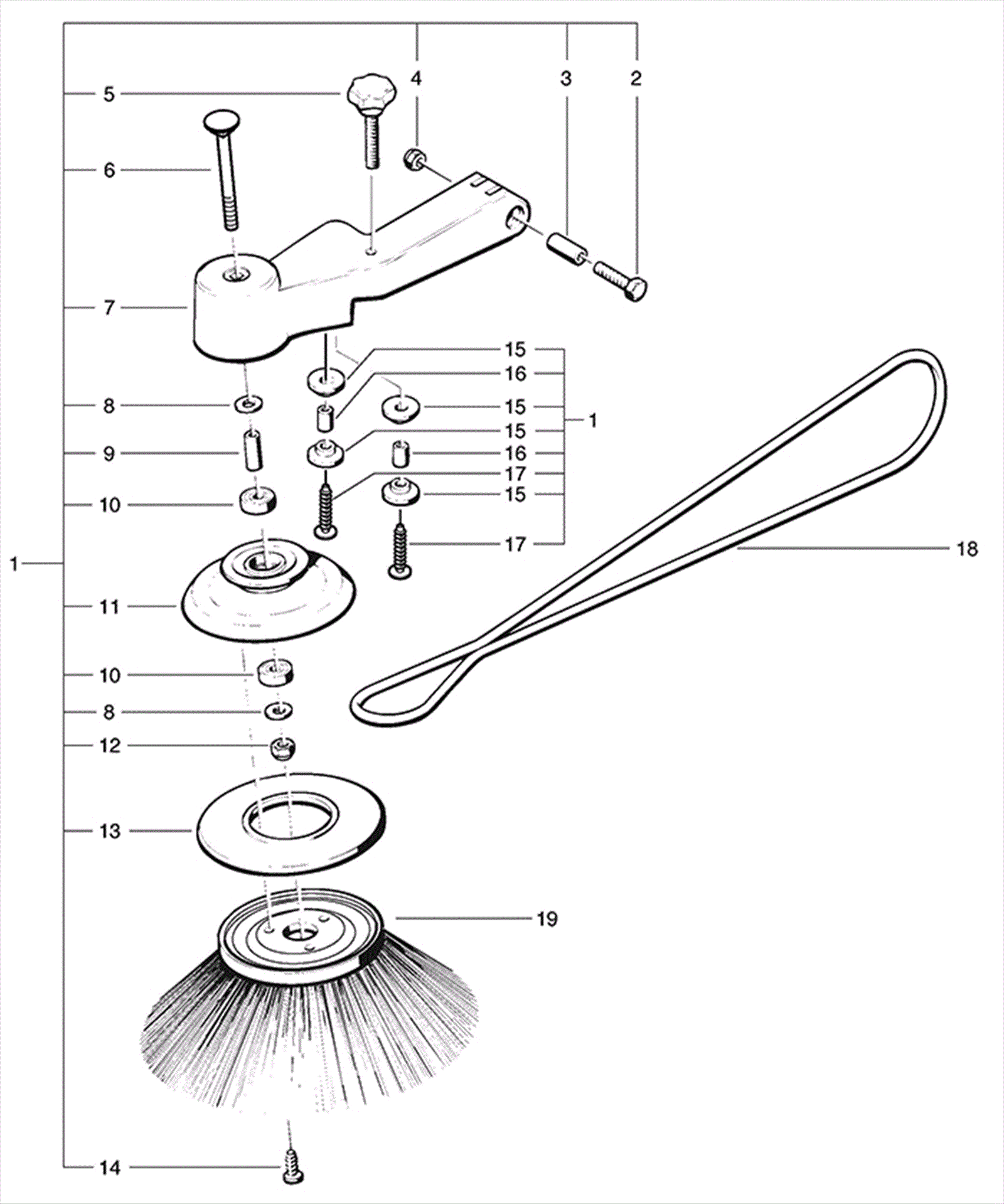

Side Broom

#PartDescription ReqNotesAvailability
1 164-5871 Side broom arm complete 1 (includes 2-17)
2 N/A Not available 1 (long screw)
3 N/A Not available 1 (spacer)
4 N/A Not available 1 (stop nut)
5 164-5818 Knob for adjustment 1
6 164-5859 Screw M10 x 110mm 1
7 164-5817 Sidebroom arm 1
8 N/A Not available 1 (washer)
9 N/A Not available 1 (spacer)
10 164-9951 Ball bearing 1
11 164-5820 Side broom cover 1
12 164-9949 Stop nut 1
13 N/A Not available 1 (bumper)
14 N/A Not available 1 (screw)
15 164-5819 Belt guide 4
16 164-5853 Spacer-small 2
17 N/A Not available 2
18 164-5823 Belt 1
19 164-5822 Side broom 1
