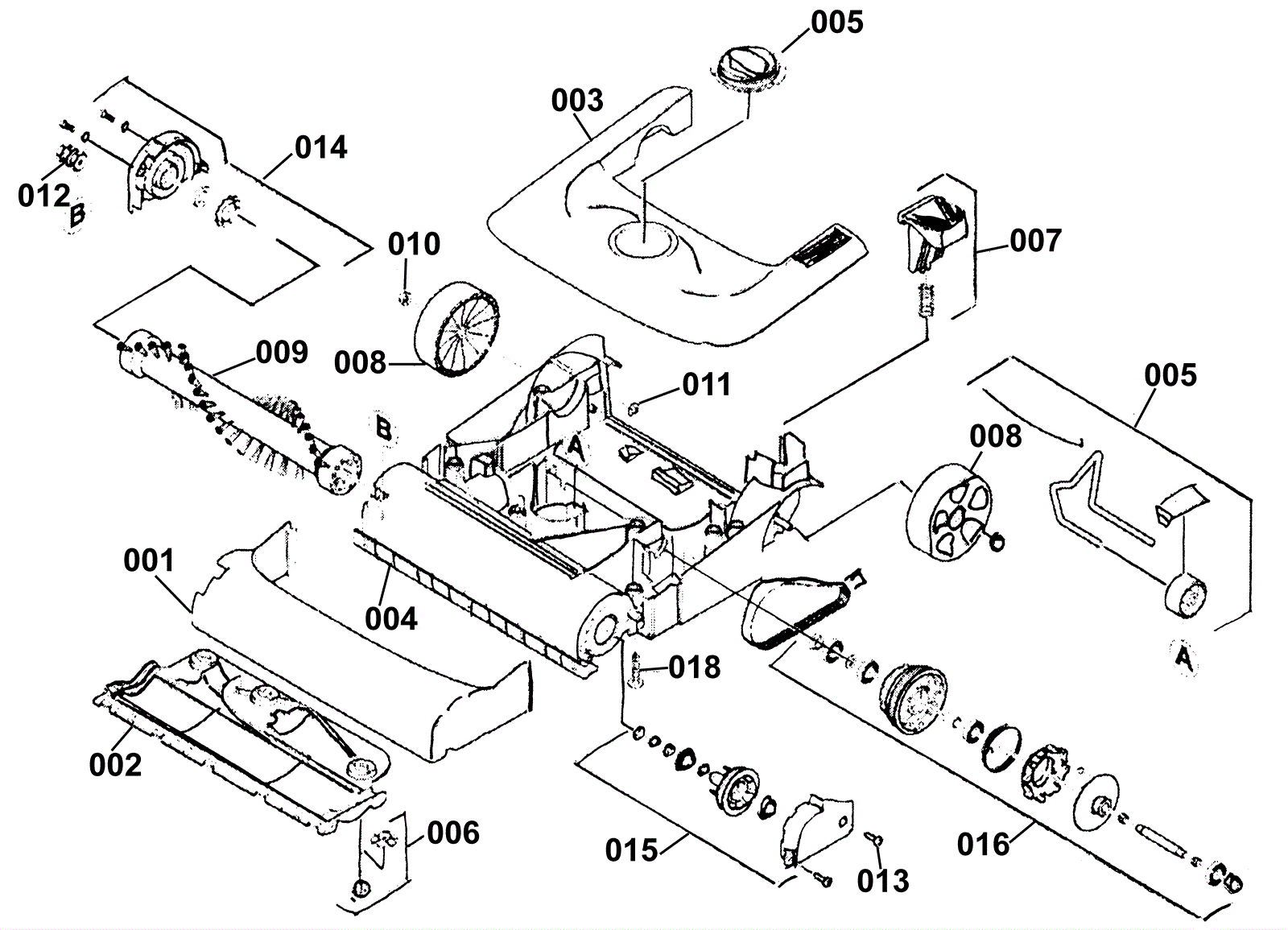

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
164-6712
|
Bumper |
1 |
(112 UE) |
|
001b |
164-6711
|
Brush cover-shock absorber-115 |
1 |
(115 UE) |
|
002a |
164-6718
|
Brush shoe-112 ue only |
1 |
(112 UE) |
|
002b |
164-6752
|
Brush shoe-115 ue only |
1 |
(115 UE) |
|
003a |
164-6721
|
Top of cover-112 ue only |
1 |
(112 UE) |
|
003b |
164-8212
|
Top cover |
1 |
(115 UE) |
|
004a |
164-6719
|
Bottom of cover-112 ue only |
1 |
(112 UE) |
|
004b |
164-6754
|
Bottom cover-115 ue only |
1 |
(115 UE) |
|
005 |
164-6707
|
Adjusting wheel assembly |
1 |
|
|
006 |
164-6695
|
Brush shoe latch |
1 |
|
|
007 |
164-6706
|
Foot lever complete |
1 |
|
|
008 |
164-6728
|
Wheel |
2 |
|
|
009a |
164-6742
|
Roller brush (black) |
1 |
(112 UE) |
|
009b |
164-6755
|
Roller brush-standard-black-shaft-115 |
1 |
(115 UE) |
|
010 |
164-2003
|
Wheel retainer |
2 |
|
|
011 |
164-6731
|
Washer lock |
2 |
|
|
012 |
164-6749
|
Screw union part |
2 |
|
|
013 |
164-6745
|
Screw 4 x 12 |
2 |
|
|
014 |
164-6700
|
Covering cap complete-right |
1 |
|
|
015 |
164-6823
|
Belt cover end cap |
1 |
|
|
016 |
164-6705
|
Coupler assembly (OBSOLETE) |
1 |
|
|
017 |
164-6694
|
Belt (pkg of 2) |
1 |
|
|
018 |
164-6746
|
Screw 5 x 20 |
8 |
|
|
