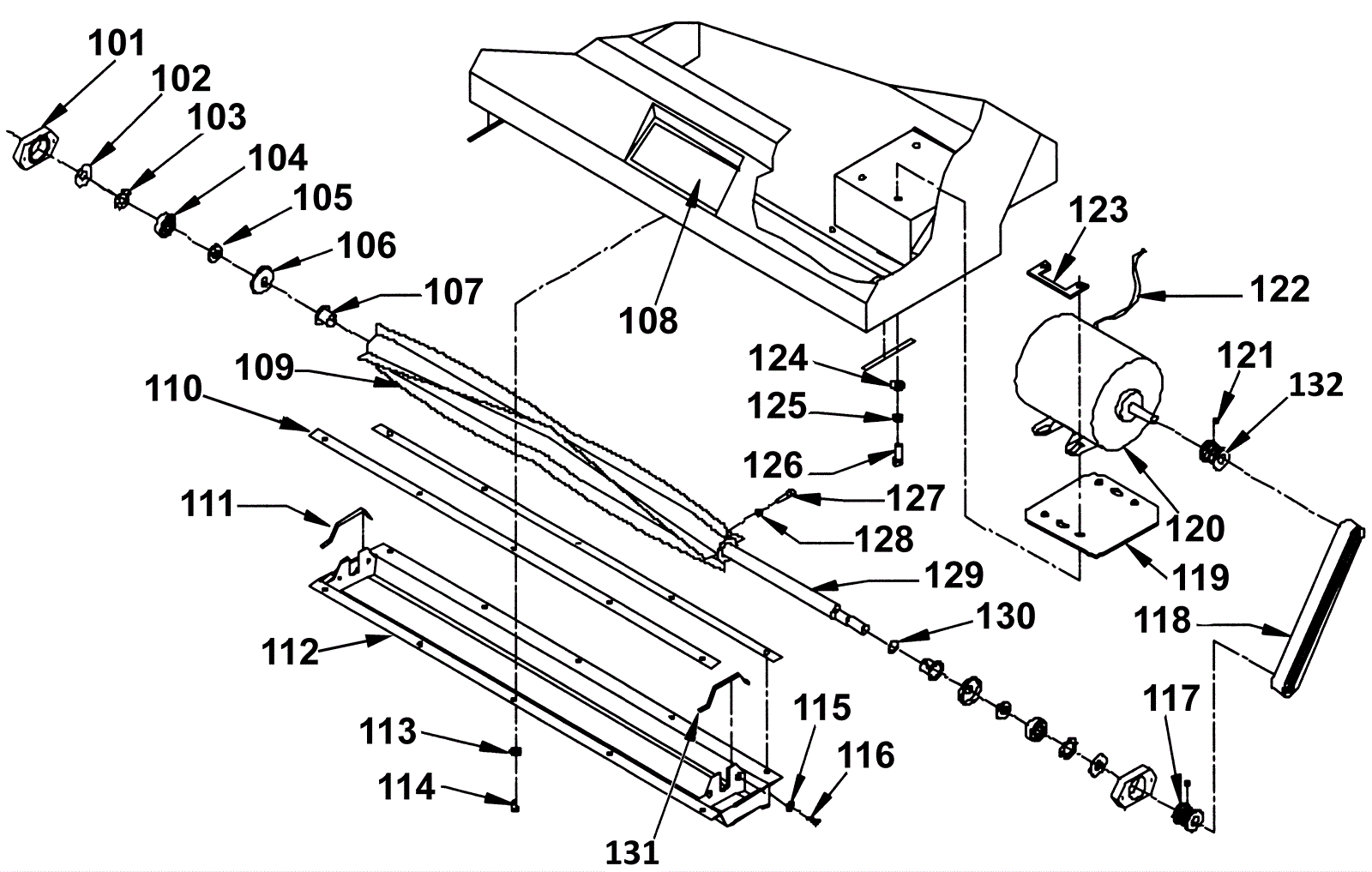

PACER 30 Brush and Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
101 164-2914 Bearing Block- machined, pacer 30 $79.92 2 usually ships 8-23 days
102 164-6042 Flat washer $6.33 2 ships same day
103 164-6041 Spring washer $3.56 2 usually ships 8-23 days
104 164-6040 Bearing $21.33 2 ships same day
105 164-2941 Bearing spacer, plated pacer 30 $3.43 2 usually ships 8-23 days
106 164-2915 Spring guard $10.75 2 usually ships 8-23 days
107 164-2940 Nyliner, 12L12F thomson $5.50 2 usually ships 8-23 days
109 164-2911 Brush $142.25 2 usually ships 8-23 days
110 164-0272 Gasket 1 x 1/4 neoprene (sold by the foot) $3.96 6 usually ships 8-23 days
111 164-7470 Gasket tpu outboard belt chamber $16.64 2 usually ships 8-23 days
112 164-1564 Shoe $267.96 1 usually ships 8-23 days
113 999-0017 Washer 1/4 external star lock $0.99 10 ships same day
114 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 10 ships same day
115 164-8334 Lock washer (pkg of 5) $5.89 4 usually ships 8-23 days
116 999-0695 Screw 10-24 x 5/8 flat head phillips zinc plated $0.99 4 ships same day
117 164-2917 Pulley, pacer 30 (does not include set screw) $29.77 1 (set screw not included. Order 999-0156 with this part) usually ships 8-23 days
118 164-3224 Poly v belt $77.73 1 ships same day
119 164-2949 Mtr. support plate - painted $33.33 1 usually ships 1-5 days
120 164-3230 120V brush motor $655.90 1 usually ships 8-23 days
121 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
122 164-8336 Cord $21.34 1 usually ships 8-23 days
123 164-3242 Motor tapping plate - plated $17.11 2 usually ships 1-5 days
124 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
125 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
126 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 4 ships same day
127 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
128 164-6798 Spacer $2.97 2 usually ships 8-23 days
129 164-2913 Brush shaft, complete-pacer 30 $182.08 1 usually ships 8-23 days
130 164-3221 Brush shaft inchO inch ring $2.51 1 usually ships 8-23 days
131 164-7469 Gasket tpu inboard belt chamber $22.32 1 usually ships 8-23 days
132 164-8136 Pulley $26.68 1 usually ships 1-5 days
