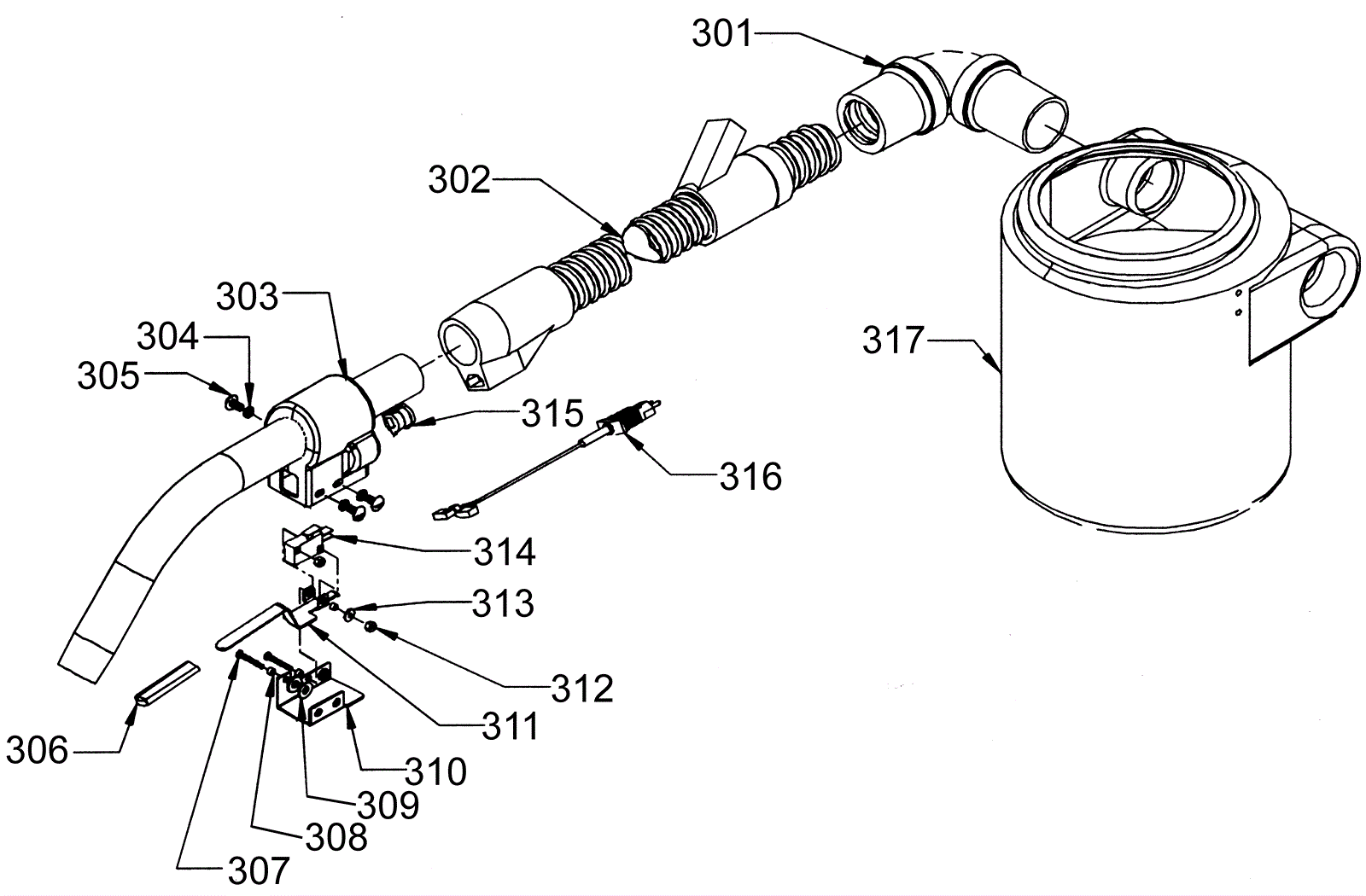

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
164-8426
|
Cuff |
1 |
|
|
302 |
164-0596
|
Electric hose 1 1/4 inchID |
1 |
|
|
303 |
164-8427
|
Trigger housing |
1 |
|
|
304 |
999-0053
|
Washer #10 split lock plain finish |
3 |
|
|
305 |
999-0010
|
Screw 10-24 x 3/8 truss head slotted zinc plated |
3 |
|
|
306 |
N/A
|
Not available |
1 |
(Trigger cover) |
|
307 |
N/A
|
Not available |
2 |
(Screw) |
|
308 |
N/A
|
Not available |
3 |
(Spacer) |
|
309 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
310 |
164-0061
|
Trigger and switch mount bracket |
1 |
|
|
311 |
N/A
|
Not available |
1 |
(Trigger) |
|
312 |
164-7407
|
Hex nut with star lock washer 4-40 |
2 |
|
|
313 |
N/A
|
Not available |
1 |
(Washer) |
|
314 |
164-8022
|
Momentary switch |
1 |
|
|
315 |
N/A
|
Not available |
1 |
(Strain relief) |
|
316 |
164-7414
|
Pigtail, hose to trigger |
1 |
|
|
317 |
N/A
|
Not available |
1 |
(Canister assembly) |
|
