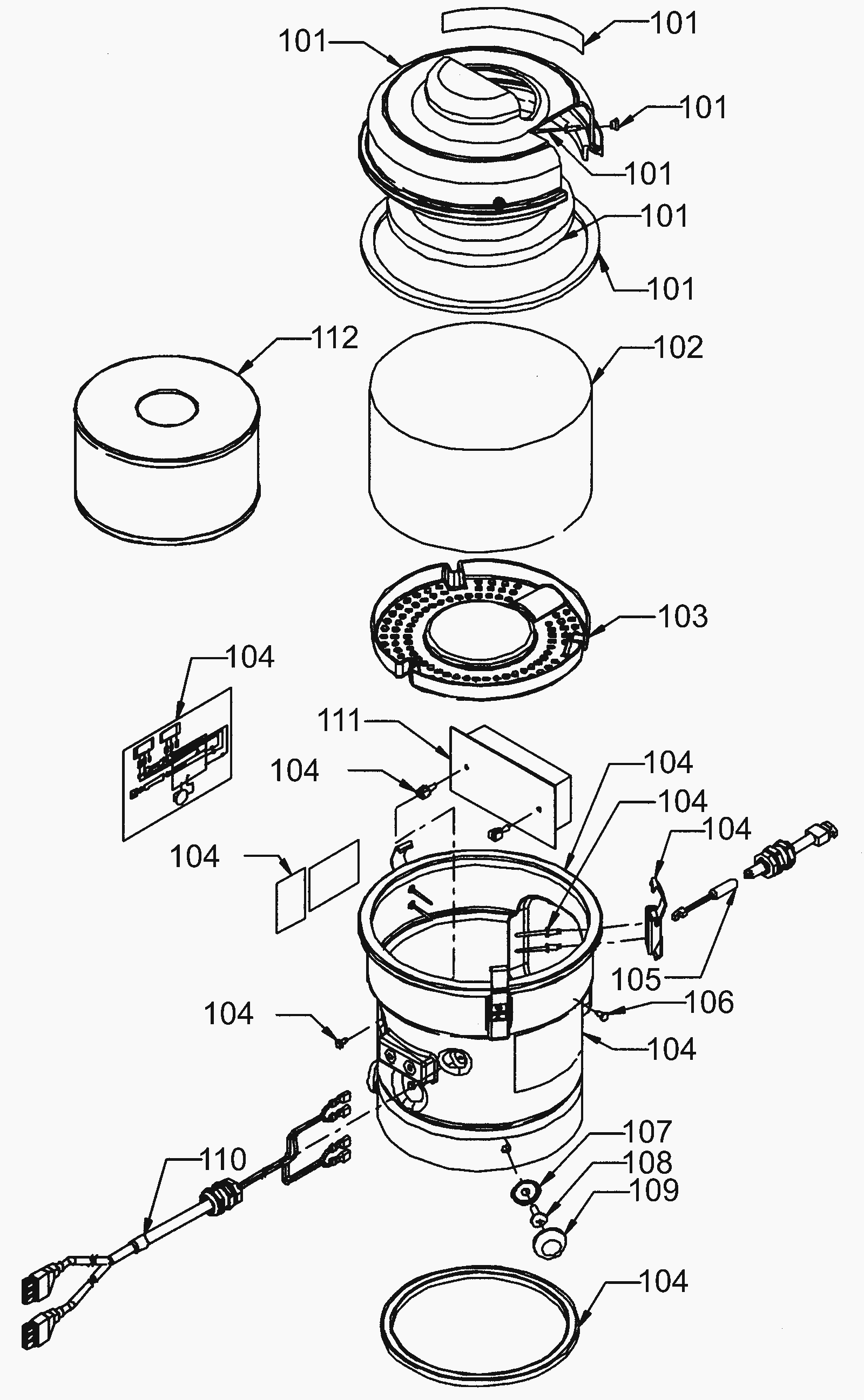

| # | Part | Description |
Req | Notes | Availability |
|---|
101a |
N/A
|
Not available |
1 |
(Cap) |
|
101b |
N/A
|
Not available |
1 |
(Decal) |
|
101c |
N/A
|
Not available |
3 |
(Latch) |
|
101d |
164-1231
|
Pop rivet |
3 |
|
|
101e |
N/A
|
Not available |
1 |
(Gasket) |
|
101f |
164-3173
|
Nut rivet |
1 |
|
|
102 |
164-0116
|
Exhaust filter |
1 |
|
|
103 |
N/A
|
Not available |
1 |
|
|
104a |
N/A
|
Not available |
1 |
(Top) |
|
104b |
164-1231
|
Pop rivet |
6 |
|
|
104c |
N/A
|
Not available |
3 |
(Latch) |
|
104d |
N/A
|
Not available |
1 |
(Decal) |
|
104e |
N/A
|
Not available |
24 |
(Foam tape) |
|
104f |
N/A
|
Not available |
2 |
(Snap rivet) |
|
104g |
N/A
|
Not available |
1 |
(Decal) |
|
104h |
N/A
|
Not available |
2 |
(Circuit board) |
|
104i |
N/A
|
Not available |
1 |
(Decal) |
|
105 |
164-7928
|
Pigtail cord from hose to board |
1 |
|
|
106 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
1 |
|
|
107 |
N/A
|
Not available |
3 |
(Washer) |
|
108 |
N/A
|
Not available |
3 |
(Screw) |
|
109 |
N/A
|
Not available |
3 |
(Screw cap) |
|
110 |
164-7931
|
Cord |
1 |
|
|
111 |
164-8186
|
Control board |
1 |
|
|
112 |
164-1277
|
HEPA filter |
1 |
|
|
