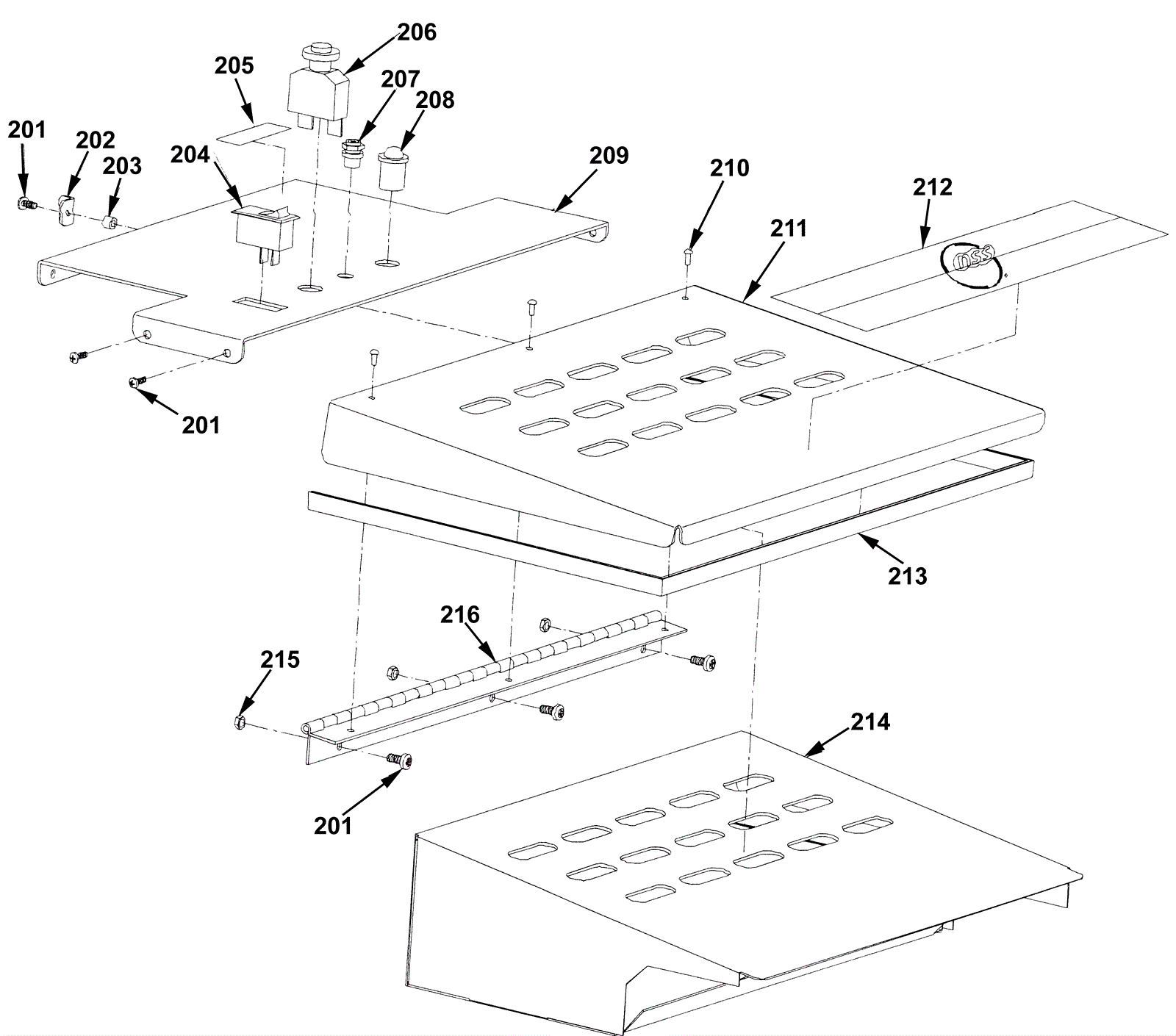

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
8 |
|
|
202 |
164-7227
|
Latch (OBSOLETE) |
1 |
|
|
203 |
164-7228
|
Latch attatchment spacer (OBSOLETE) |
1 |
|
|
204 |
164-7229
|
Rocker switch (OBSOLETE) |
1 |
|
|
206 |
164-7231
|
Circuit breaker (OBSOLETE) |
1 |
|
|
207 |
164-7232
|
Charge port (OBSOLETE) |
1 |
|
|
210 |
164-7235
|
Aluminum rivet 3/32 x 1/4 |
3 |
|
|
211 |
164-7236
|
Pan top |
1 |
|
|
212 |
164-7237
|
Top cover decal (OBSOLETE) |
1 |
|
|
213 |
164-7238
|
Vinyl protective trim 5/8 x 32 inches (OBSOLETE) |
1 |
|
|
214 |
164-7219
|
Debris box 5 pack (OBSOLETE) |
1 |
|
|
215 |
999-0308
|
Nut 8-32 plain |
3 |
|
|
216 |
164-7239
|
Piano hinge (OBSOLETE) |
1 |
|
|
