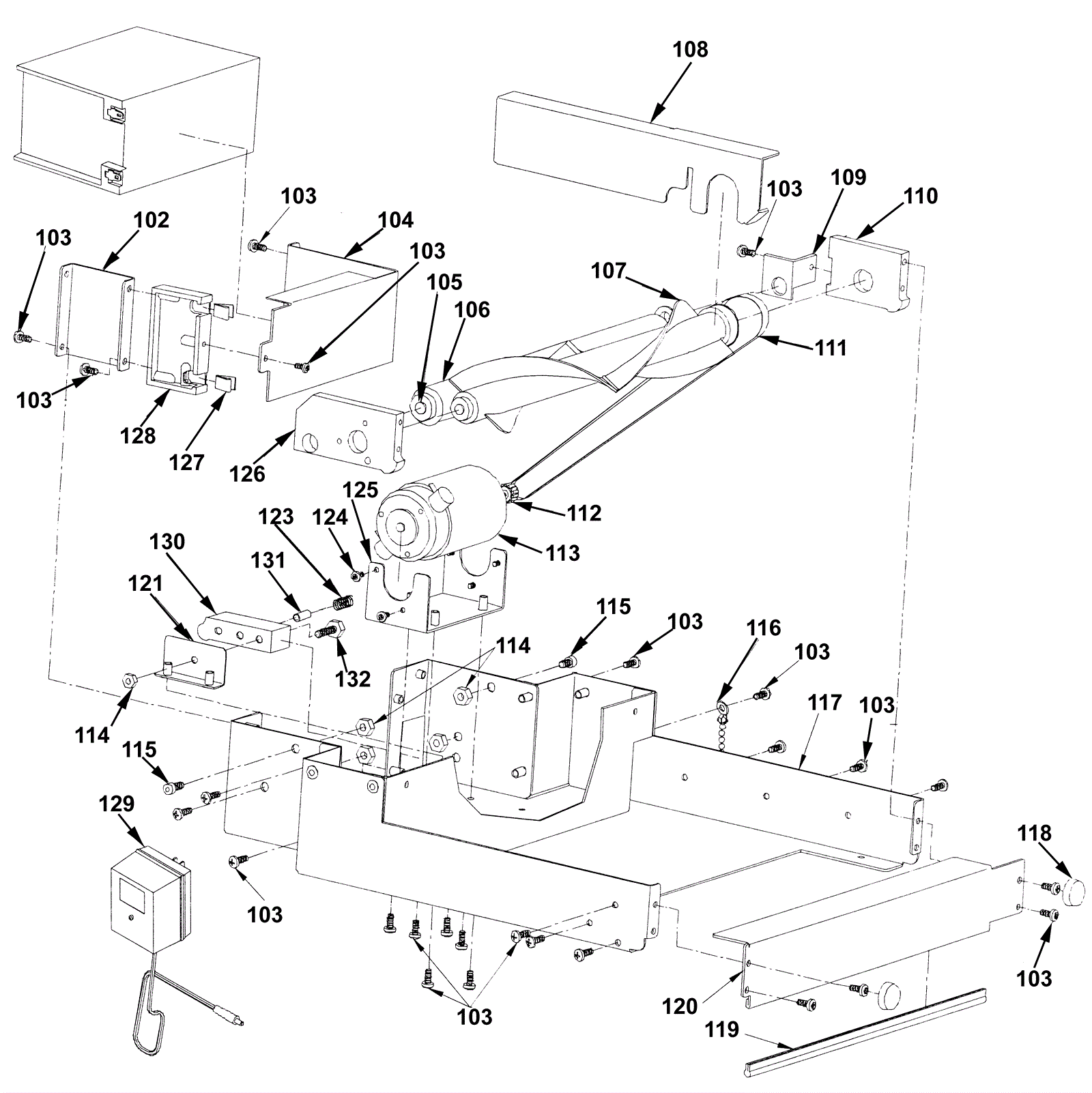

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
164-7216
|
9 Amp hour battery (OBSOLETE) |
1 |
|
|
102 |
164-7190
|
Right battery box (OBSOLETE) |
1 |
|
|
103 |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
21 |
|
|
104 |
164-7191
|
Left battery box (OBSOLETE) |
1 |
|
|
105 |
164-7193
|
11 3/8 Inch PVC tube (OBSOLETE) |
1 |
|
|
106 |
164-7193
|
11 3/8 Inch PVC tube (OBSOLETE) |
1 |
|
|
107 |
164-7194
|
Revolving brush assembly with ungrounded bearings (OBSOLETE) |
1 |
|
|
109 |
164-7196
|
Front wheel bracket (OBSOLETE) |
1 |
|
|
110 |
164-7197
|
Left brush support plate (OBSOLETE) |
1 |
|
|
111 |
164-7198
|
Belt (OBSOLETE) |
1 |
|
|
112 |
164-7199
|
Timing pulley (OBSOLETE) |
1 |
|
|
114 |
999-1201
|
Nut 1/4-28 nylon insert lock hex stainless steel |
1 |
|
|
115 |
999-1202
|
Screw 1/4-28 x 3/4 socket head alloy plain finish |
5 |
|
|
116 |
164-7201
|
Static chain |
2 |
|
|
117 |
164-7202
|
Pan bottom (OBSOLETE) |
1 |
|
|
118 |
164-7203
|
Front bumper |
1 |
|
|
119 |
164-7204
|
Vinyl protective trim |
2 |
|
|
120 |
164-7205
|
Front pan |
1 |
|
|
121 |
164-7206
|
Locking decive support bracket (OBSOLETE) |
1 |
|
|
123 |
164-7210
|
Compression spring 1 1/2 inch long |
1 |
|
|
124 |
999-0418
|
Screw 6-32 x 1/4 pan head slotted zinc plated |
5 |
|
|
125 |
164-7211
|
Motor mount bracket (OBSOLETE) |
1 |
|
|
126 |
164-7212
|
Right brush support plate |
1 |
|
|
127 |
164-7213
|
Battery contactor clip |
2 |
|
|
128 |
164-7214
|
Battery terminal connector block (OBSOLETE) |
1 |
|
|
129 |
164-7215
|
120V Charger (OBSOLETE) |
1 |
|
|
130a |
164-7207
|
Locking device assembly (OBSOLETE) |
1 |
Includes 130b - 132 |
|
130b |
164-7209
|
Locking device (OBSOLETE) |
1 |
|
|
131 |
164-7208
|
Roll pin 1/4 x 1 1/4 (OBSOLETE) |
1 |
|
|
132 |
999-1203
|
Screw 1/4-28 x 1 1/2 flat head socket cap stainless steel |
1 |
|
|
