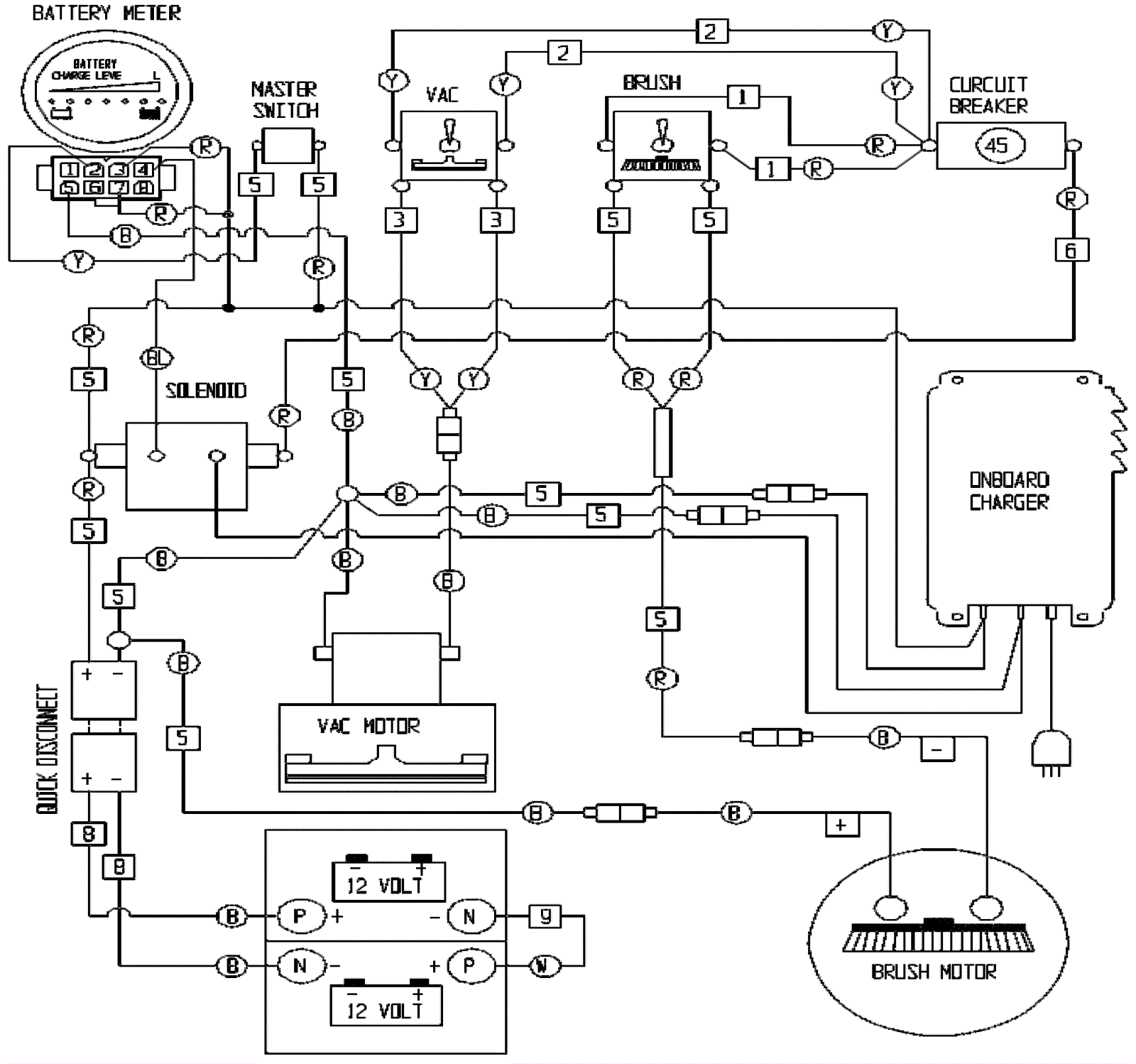

Wrangler 2008AB Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 164-2274 Wire assy - control board to brush switch $3.96 1 usually ships 1-5 days
2 164-2275 Wire assy - control board to vac switch $4.08 1 usually ships 1-5 days
3 164-2276 Wire assy - vac switch to vac motor $4.32 1 usually ships 8-23 days
5 164-9183 Wire harness (OBSOLETE) $290.45 1 usually ships 8-23 days
6 164-7957 Wire (solenoid to breaker) $4.56 1 usually ships 8-23 days
8 164-1189 Wire assembly (connector to battery) $57.16 1 ships same day
9 164-2282 Battery jumper $4.92 1 usually ships 8-23 days
N/S 991-2103 50amp charger plug SB50 with pins (red) $4.94 1 ships same day
N/S 164-7302 24V onboard battery charger $622.04 1 ships same day
N/S 164-2216 Vac motor 24V, DC $498.55 1 usually ships 8-23 days
N/S 164-2258 45 amp circuit breaker $122.47 1 usually ships 8-23 days
N/S 164-0892 24V solenoid contactor $74.91 1 usually ships 8-23 days
N/S 164-8005 Battery meter with hardware $191.98 1 ships same day
N/S 164-8132 Wiring harness $80.75 (To connect to battery meter) usually ships 8-23 days
N/S 164-0834 24V brush gear motor assembly $1,238.35 1 usually ships 1-5 days
N/S 164-3985 Fully insulated m-etc trim $2.76 4 usually ships 1-5 days
N/S 164-0001 Master switch $22.04 1 ships same day
N/S 164-0290 Toggle switch $13.30 2 ships same day
N/S 164-6477 Onboard charger extension cord $25.15 1 ships same day
