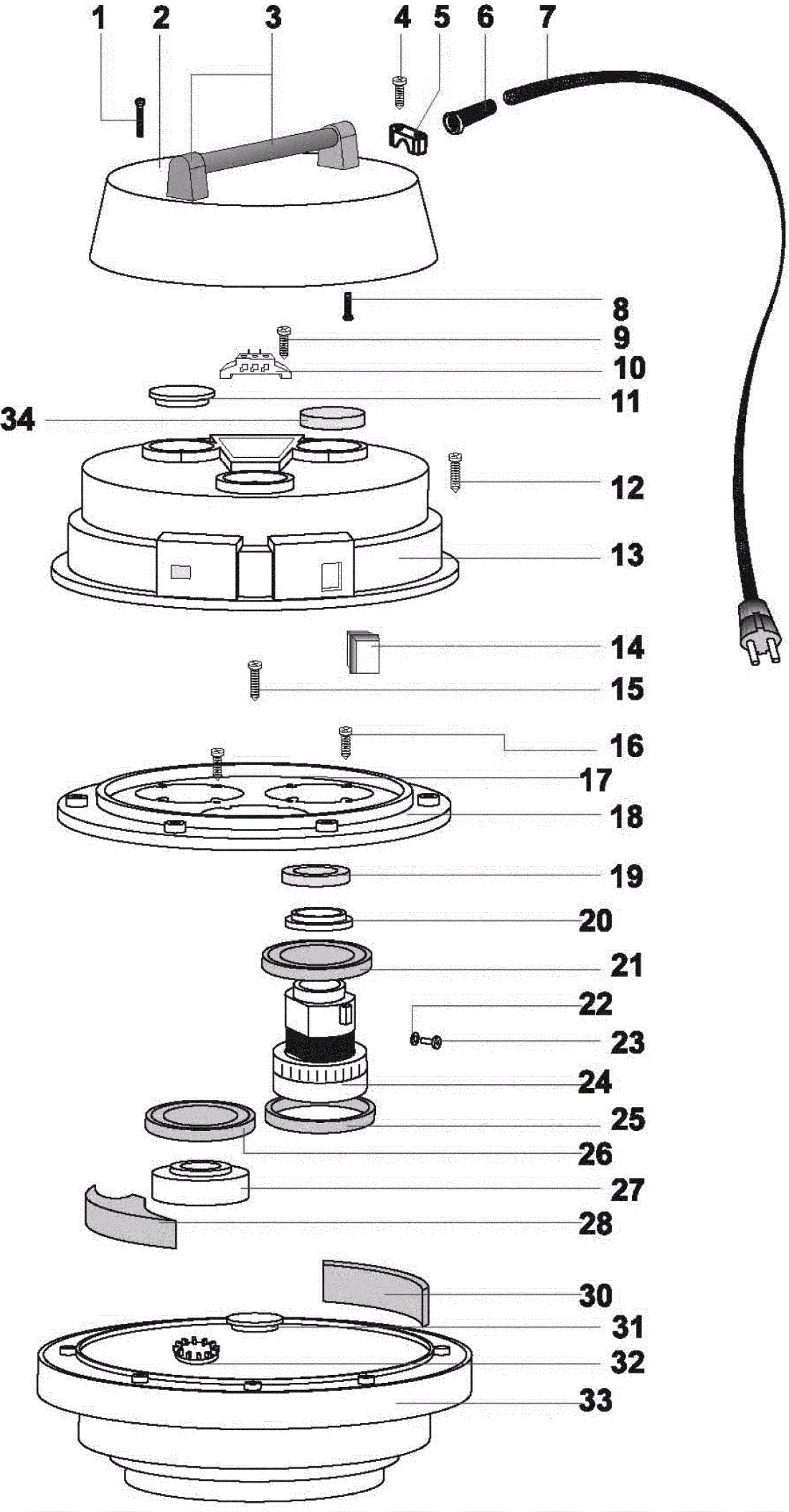

Designer 16 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4825 Screw 5-1/5 x 50mm self tapping $3.83 6 usually ships 1-5 days
2 164-3195 Top cover $55.00 1 ships same day
3 164-4826 Lift handle $21.40 1 usually ships 8-23 days
4 164-4781 Screw M5 x 20mm self tapping $3.83 2 usually ships 1-5 days
5 164-4753 Cord clamp $6.49 1 usually ships 1-5 days
6a 164-9522 120V strain relief $2.84 1 usually ships 8-23 days
6b 164-4752 240V strain relief $4.49 1 usually ships 1-5 days
7a 164-4862 16/3 power cord 50 foot $182.74 1 (OEM) usually ships 8-23 days
7b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (NON-OEM) ships same day
7c 164-4562 Shuko cord 240v 75ft $128.26 1 usually ships 8-23 days
7d 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 (NON-OEM) ships same day
8 164-4781 Screw M5 x 20mm self tapping $3.83 4 usually ships 1-5 days
9 164-4945 Screw M5 x 14mm phillips $2.24 2 usually ships 1-5 days
10 164-4879 Main terminal block $16.45 1 usually ships 8-23 days
11 164-3197 Covering cup $5.28 1 usually ships 1-5 days
12 164-4835 Screw M5 x 35mm self tapping intake $1.52 8 usually ships 1-5 days
13a 164-4880 Lower cover $70.73 1 usually ships 1-5 days
13b 164-9523 240V lower cover Call for price 1 usually ships 8-23 days
14 164-4823 Lighted switch $29.70 2 ships same day
15 164-4782 Screw m5 x 30mm self-tapping (OBSOLETE) $2.24 1 usually ships 8-23 days
16 164-4781 Screw M5 x 20mm self tapping $3.83 8 usually ships 1-5 days
17 164-4781 Screw M5 x 20mm self tapping $3.83 4 usually ships 1-5 days
18a 164-3198 Motor separtor $32.23 1 usually ships 1-5 days
18b 164-9524 240V motor separator Call for price 1 usually ships 8-23 days
19 164-3199 Washer 8 x 85 x 65 $5.28 2 usually ships 1-5 days
20a 164-3200 Plastic motor ring $3.43 2 usually ships 1-5 days
20b 164-7244 Plastic motor ring $1.91 2 usually ships 1-5 days
21 164-9494 L gasket $37.68 2 usually ships 8-23 days
22 164-4836 Nut M4 hex star lock $2.38 2 usually ships 1-5 days
23 164-9501 Screw M4 x 8mm $2.38 2 usually ships 8-23 days
24a 164-9172 120V 2 stage vacuum motor (obsolete) $273.24 2 (includes 24b and 24c) usually ships 8-23 days
24b 164-4788 Carbon brush with holder $47.69 2 usually ships 1-5 days
24c 164-1810 Carbon brush $21.02 2 ships same day
24d 164-1804 Motor with Female Term 200-240v $300.85 1 (includes 24e and 24f) usually ships 1-5 days
24e 164-9525 Carbon brush $22.39 2 usually ships 8-23 days
24f 164-1810 Carbon brush $21.02 2 ships same day
25 164-9494 L gasket $37.68 2 usually ships 8-23 days
26 164-9494 L gasket $37.68 1 usually ships 8-23 days
27 164-9496 Cap $19.58 1 usually ships 8-23 days
28 164-9497 Upper triangular spacer $10.01 3 usually ships 8-23 days
30 164-9498 Gasket 50 x 10 x 125 inch $2.18 3 usually ships 8-23 days
31 164-9499 Base cup $2.77 1 usually ships 8-23 days
32 164-4817 Automatic valve $8.03 2 usually ships 1-5 days
34 164-3206 Filter $3.56 2 usually ships 1-5 days
N/S 164-4967 Connect wires set (blue/brown) Call for price 4 usually ships 1-5 days
N/S 164-4968 Ground wire- 120V (green/yellow) Call for price 2 usually ships 1-5 days
N/S 164-4969 Wire terminal Call for price 4 usually ships 1-5 days
N/S 164-4970 Wire ties Call for price 3 usually ships 1-5 days
N/S 164-4746 Warning decal (red) Call for price 1 usually ships 1-5 days
N/S 164-4747 Grounding decal (red) Call for price 1 usually ships 1-5 days
N/S 164-4748 Red inchIcon adaptor inch decal Call for price 1 usually ships 1-5 days
N/S 164-1857 Decal (OBSOLETE) $23.65 2 usually ships 1-5 days
N/S 164-4745 Wet or dry decal Call for price 1 usually ships 1-5 days
N/S 164-4743 Designer 16 decal Call for price 1 usually ships 1-5 days
