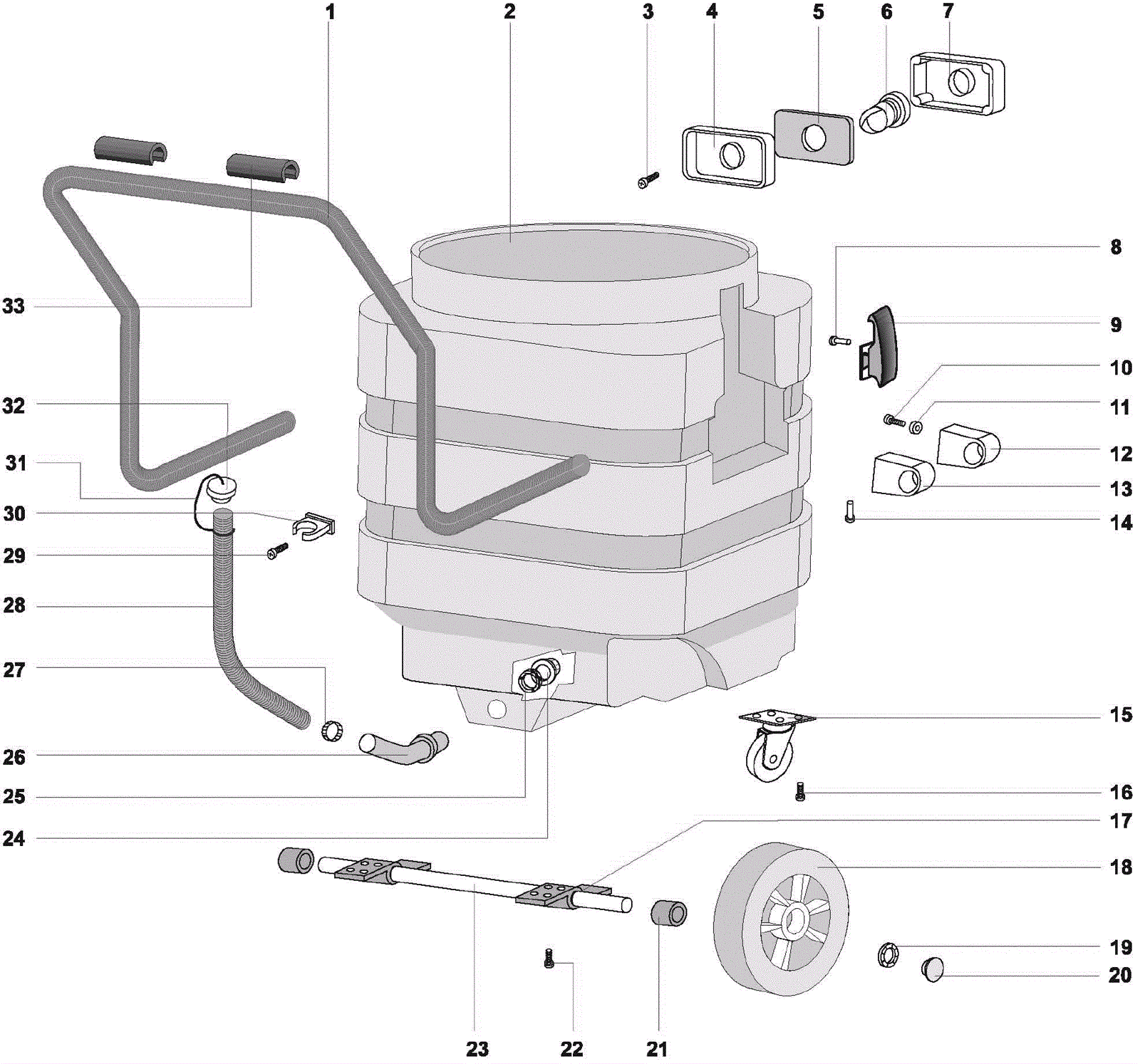

Designer 16 Tank and Transport Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4005 Handle $62.81 1 usually ships 1-5 days
2 164-4006 Tank $785.02 1 usually ships 1-5 days
3 164-4782 Screw m5 x 30mm self-tapping (OBSOLETE) $2.24 4 usually ships 17-22 days
4 164-4914 Intake support $5.90 1 ships same day
5 164-4907 Intake gasket $9.04 1 usually ships 17-22 days
6 164-9508 Intake deflector $8.91 1 usually ships 17-22 days
7a 164-4908 Plastic intake $17.82 1 (includes 7b-7d) usually ships 17-22 days
7b 164-4861 Intake, plastic $9.69 1 usually ships 1-5 days
7c 164-4858 Spring (Designer 4) $2.51 1 usually ships 17-22 days
7d 164-4007 Intake button (OBSOLETE) $2.31 1 usually ships 1-5 days
8 164-4837 Lid clamp rivet $6.92 4 usually ships 17-22 days
9 164-4828 Lid clamp (Designer) $18.46 2 usually ships 17-22 days
10 164-4835 Screw M5 x 35mm self tapping intake $1.62 8 usually ships 1-5 days
11 164-4008 Seal $2.51 8 usually ships 17-22 days
12 164-4783 Transport handle bracket $9.36 2 ships same day
13 164-4915 Passing handle bracket $7.26 2 usually ships 1-5 days
14 164-9135 Pop rivet M5 x 19 $2.12 2 usually ships 17-22 days
15 164-4916 Plate caster $37.00 2 usually ships 17-22 days
16 164-4832 Screw 4 x 15 caster plastic self-tapping $2.51 8 usually ships 17-22 days
17 164-4919 Can support bracket $5.64 2 usually ships 1-5 days
18 164-4917 Rear wheel $56.75 2 usually ships 17-22 days
19 164-4921 Wheel snap ring $2.64 2 usually ships 1-5 days
20 164-9136 Wheel cap $3.20 2 usually ships 1-5 days
21 164-4920 Wheel spacer $6.49 2 usually ships 1-5 days
22 164-4781 Screw M5 x 20mm self tapping $3.97 8 usually ships 1-5 days
23 164-4918 Wheel axle $25.97 1 usually ships 1-5 days
24 164-9527 1 1/4 inch drain hose connector ring $10.59 1 usually ships 17-22 days
25 164-4923 Drain seal gasket $6.49 1 usually ships 1-5 days
26 164-4922 Drain hose barb $48.33 1 usually ships 1-5 days
28 164-4925 Drain hose $39.82 1 usually ships 17-22 days
29 164-9526 Screw M5 x 20mm truss head thread cutting $2.18 1 usually ships 17-22 days
30 164-4927 Hose clamp mount ring $10.08 1 usually ships 17-22 days
31 164-4928 Plug holding strap $11.36 1 usually ships 17-22 days
32 164-4929 Drain hose plug $13.02 1 usually ships 17-22 days
33 164-9138 Handle grips $2.89 2 usually ships 1-5 days
