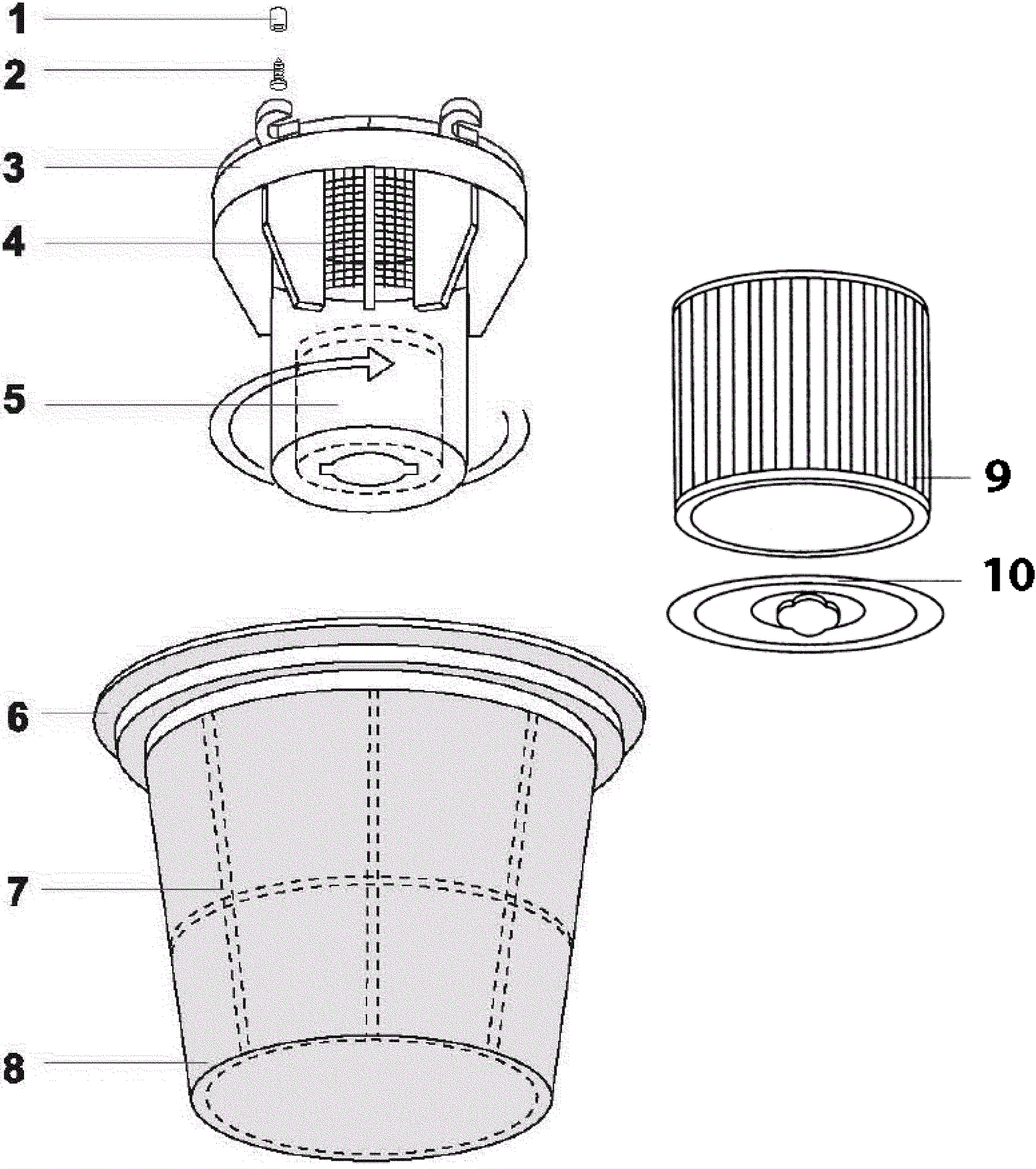

Designer 16 Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-9504 Plastic sleeve $1.58 4 usually ships 17-22 days
2 164-9526 Screw M5 x 20mm truss head thread cutting $2.18 4 usually ships 17-22 days
3 164-9506 Float cage $12.43 1 usually ships 17-22 days
4 164-3208 Net filter $11.48 1 usually ships 17-22 days
5 164-4812 Float assembly $44.48 1 usually ships 17-22 days
6a 164-4894 Filter assembly $197.22 1 (icnludes 6b-8) usually ships 17-22 days
6b 164-3209 Upper filter ring $33.67 1 usually ships 17-22 days
7 164-3210 Polyester filter $89.95 1 usually ships 17-22 days
8 164-4002 Lower basket $55.64 1 usually ships 17-22 days
9 164-4003 Cartridge filter 75 x 145 x 163 $94.05 1 usually ships 1-5 days
10 164-4004 Lower filter ring $27.05 1 usually ships 1-5 days
