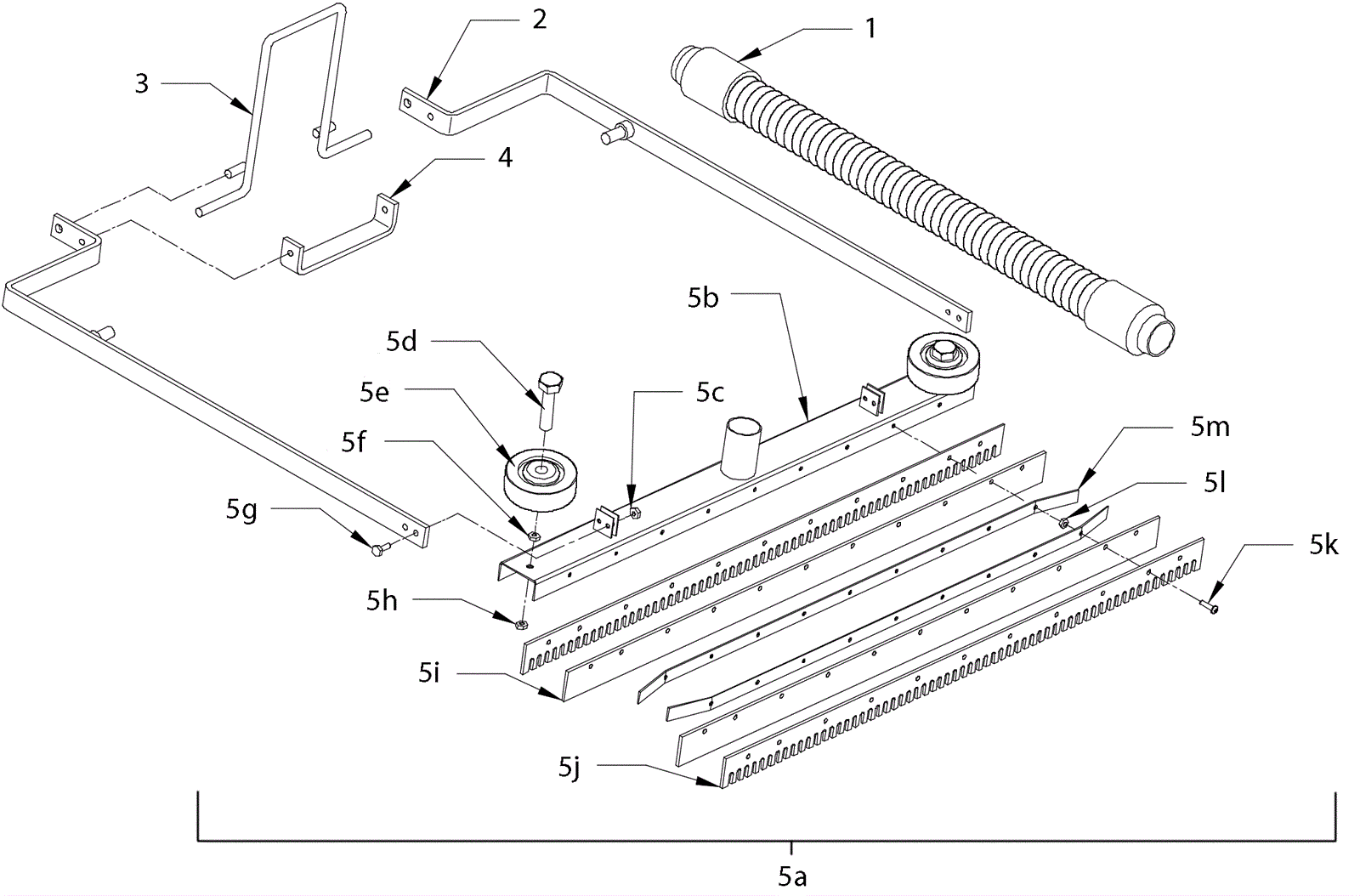

Designer 16 Front Mount Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-4904 Hose $114.35 1 usually ships 8-23 days
2 164-4902 Lifting arm $145.48 2 usually ships 1-5 days
3 164-9529 Cross bar $18.92 1 usually ships 8-23 days
4 164-4903 Latch $40.98 1 usually ships 1-5 days
5a 164-4896 Front mount squeegee assembly (OBSOLETE) $362.18 1 (includes 5b-5m) usually ships 1-5 days
5b 164-4900 Housing $194.98 1 usually ships 1-5 days
5c 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
5d 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 2 ships same day
5e 164-4901 Wheel $14.36 2 usually ships 1-5 days
5f 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
5g 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 6 ships same day
5h 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
5i 164-4898 Squeegee blade front $33.33 2 usually ships 8-23 days
5j 164-4897 Squeegee blade slotted rear $35.76 2 usually ships 8-23 days
5k 999-0642 Screw 10-24 x 1 3/4 round head phillips stainless steel $0.99 22 ships same day
5l 164-5000 Hex nut (pkg of 10) $6.34 22 ships same day
5m 164-4899 Squeegee support blade $60.28 2 usually ships 1-5 days
