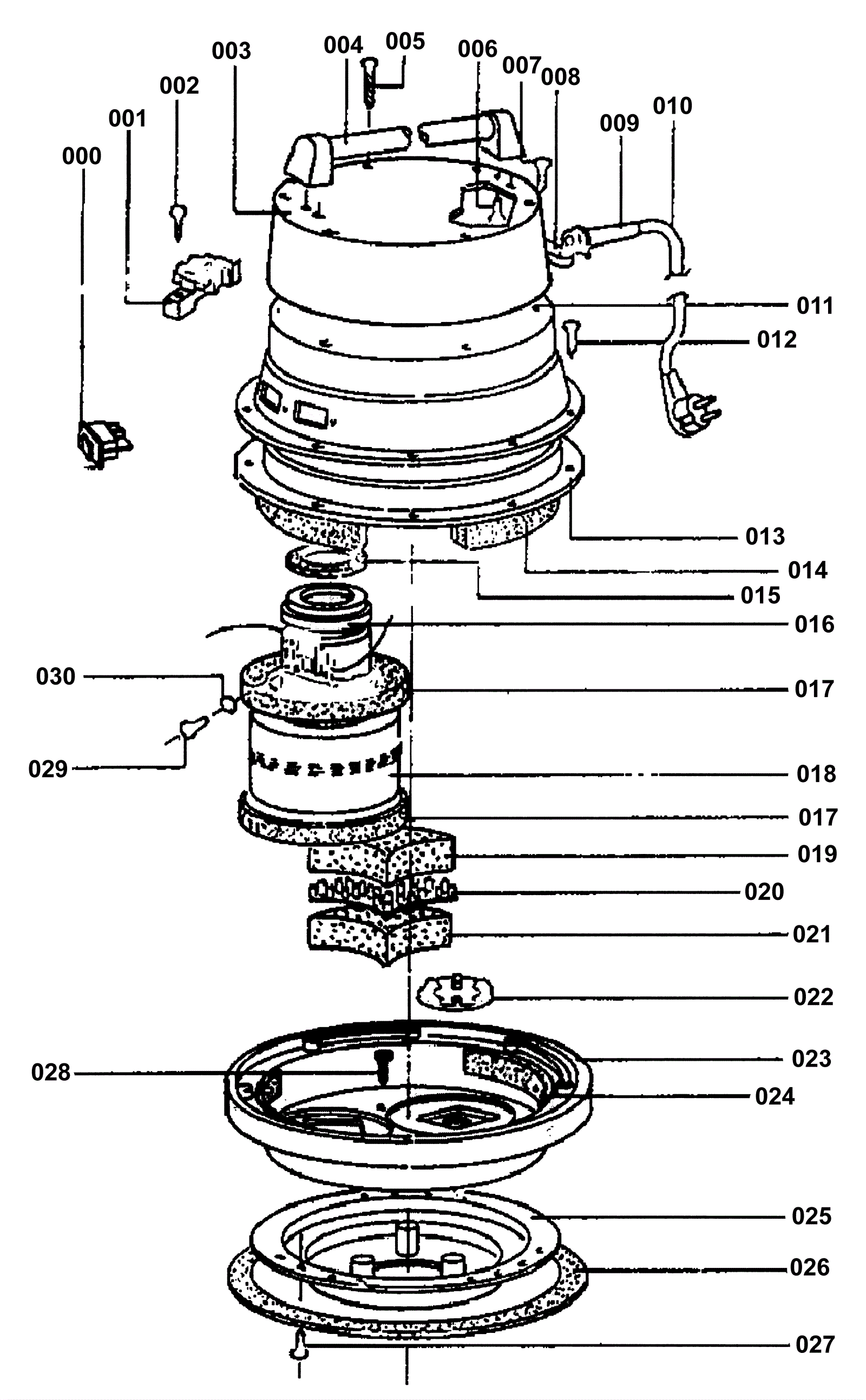

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
164-4823
|
Lighted switch |
1 |
|
|
001 |
164-4879
|
Main terminal block |
1 |
|
|
002 |
164-4782
|
Screw m5 x 30mm self-tapping (OBSOLETE) |
1 |
|
|
003 |
164-4813
|
Top cover motor |
1 |
|
|
004 |
164-4826
|
Lift handle |
1 |
|
|
005 |
164-4825
|
Screw 5-1/5 x 50mm self tapping |
2 |
|
|
006 |
164-4871
|
Switch |
2 |
|
|
007 |
164-4833
|
Screw 4 5/16 x 22 self-tapping |
4 |
|
|
008 |
164-4753
|
Cord clamp |
1 |
|
|
009 |
164-4752
|
240V strain relief |
1 |
|
|
010 |
164-4862
|
16/3 power cord 50 foot |
1 |
|
|
011 |
164-4880
|
Lower cover |
1 |
|
|
012 |
164-4835
|
Screw M5 x 35mm self tapping intake |
8 |
|
|
013 |
N/A
|
Not available |
1 |
Not available - 2 mtr holding ring DF - 16/20 |
|
014 |
N/A
|
Not available |
3 |
Not available - Foam filter D-12, 14, 16, 20 |
|
015 |
164-4797
|
Top motor gasket |
2 |
|
|
016 |
164-4863
|
Motor spacing ring |
2 |
|
|
017 |
164-4955
|
Motor gasket |
2 |
|
|
018 |
991-1208
|
120V 2 stage vacuum motor peripheral |
1 |
|
|
020 |
N/A
|
Not available |
3 |
Not available - Plastic spacer D-12,14,16,20 |
|
022 |
164-4817
|
Automatic valve |
1 |
|
|
023 |
164-4881
|
Lid |
1 |
|
|
024 |
164-4818
|
Filter strip (OBSOLETE) |
3 |
|
|
025 |
164-4819
|
Lid- pan (OBSOLETE) |
1 |
|
|
026 |
164-4820
|
Lid gasket (OBSOLETE) |
1 |
|
|
027 |
164-4945
|
Screw M5 x 14mm phillips |
6 |
|
|
028 |
164-4781
|
Screw M5 x 20mm self tapping |
3 |
|
|
030 |
164-4836
|
Nut M4 hex star lock |
1 |
|
|
