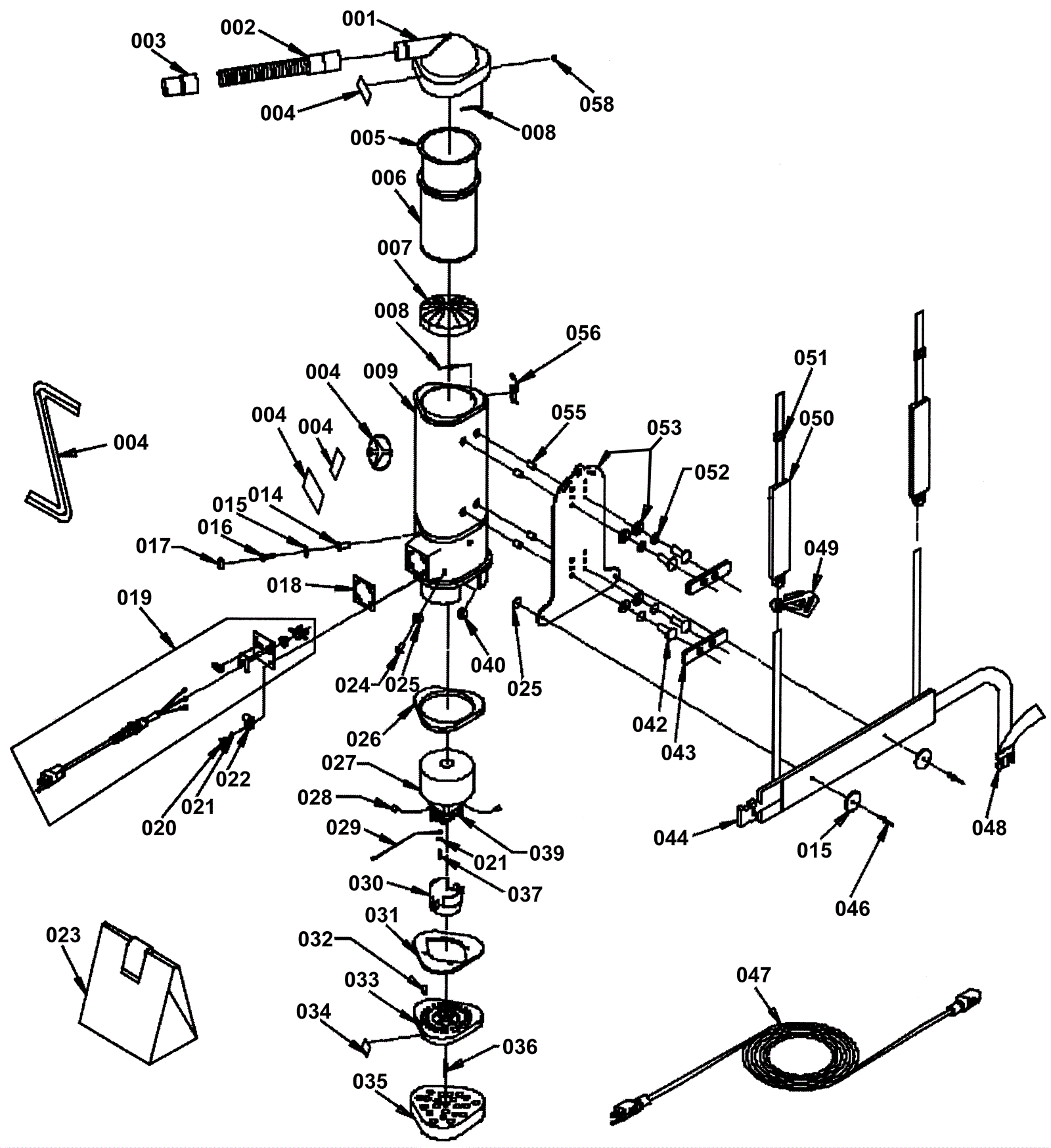

Main Diagram

#PartDescription ReqNotesAvailability
001a 164-1222 Top cover with buttons 1
001b 164-1222 Top cover with buttons 1
002a 164-1223 Vacuum hose 1
002b 164-1224 Vac hose long 1
003 164-6234 Plastic swivel cuff 1
004 164-1226 Warning decal 1
005 164-6220 Vacuum bags (pkg of 10) 1
006 164-1228 Cloth bag 1
007a 274-0768 FILTER-DOME 1 (OEM)
007b 274-0768 FILTER-DOME 1 (NON-OEM)
007c 991-5119 Vacuum motor filter 1 (NON-OEM)
008 164-1231 Pop rivet 6
009 164-1232 Molded tank 1
014 164-1233 Nut well 3
015a 164-1234 Washer finish cap 2
015b 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
016 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 3
017 164-1237 Plastic screw cap 3
018 164-1238 Gasket cover plate 1
019 N/A Not available 1 Plug switch assembly
020 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 4
021 999-0053 Washer #10 split lock plain finish 4
022 164-1240 Nylon cable clamp 2
023 164-1241 Tool bag (OBSOLETE) 1
024 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 1
025 999-0328 Washer 7/16 USS flat 1
026 164-1242 Vacuum motor gasket 1
027a 164-1243 Vac motor (OBSOLETE) 1
027c 164-1245 Motor assembly 1
028a 998-0001 1/4 spade male terminal 10-12 gauge 1
028b 998-0044 12-10 nylon female connector 2
029 164-4648 Green wire
030 991-1220 Plastic fan cover (for plastic covered brushes) 1
031 164-1249 Vacuum motor gasket holder 2
032 999-0700 Screw 10-24 x 3/4 hex washer head slotted zinc 4
033 164-1250 Performance cover 1
034 164-1251 Gasket plate 1
035 164-1252 Foam filter 1
036 164-1253 Vac motor pop rivet (OBSOLETE) 1
037 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting 1
039a 164-2420 Carbon brush 120V 2
039c 164-1256 Carbon brush 400hz 2
040 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
042 999-0113 Screw 1/4-20 x 1/2 truss head slotted 4
043a 164-1258 Back pack pad 2
043b 164-1259 Back back pad kit 1
044a 164-1260 Belt support harness 1
044b 164-1261 Strap assembly 1
046 164-9040 Pop rivet (pkg of 5) 2
047a 164-1263 16/3 power cord 50 foot 1
047c 164-1265 75 foot airline galley cord 1
047d 164-1266 75 foot airline cabin cord (OBSOLETE) 1
048 164-1267 Side release belt buckle 1
049 164-4500 Strain relief 1
050 164-1269 Shoulder support pad 2
051 164-1270 Belt slide (OBSOLETE) 2
052 999-0017 Washer 1/4 external star lock 4
053 164-1272 Back support platform 1
055 164-1273 Plastic spacer 4
056 164-1274 clamp button 1 piece each 3
058 164-1275 Clamp button button only 3
N/S 164-1206 Ground wire 3
