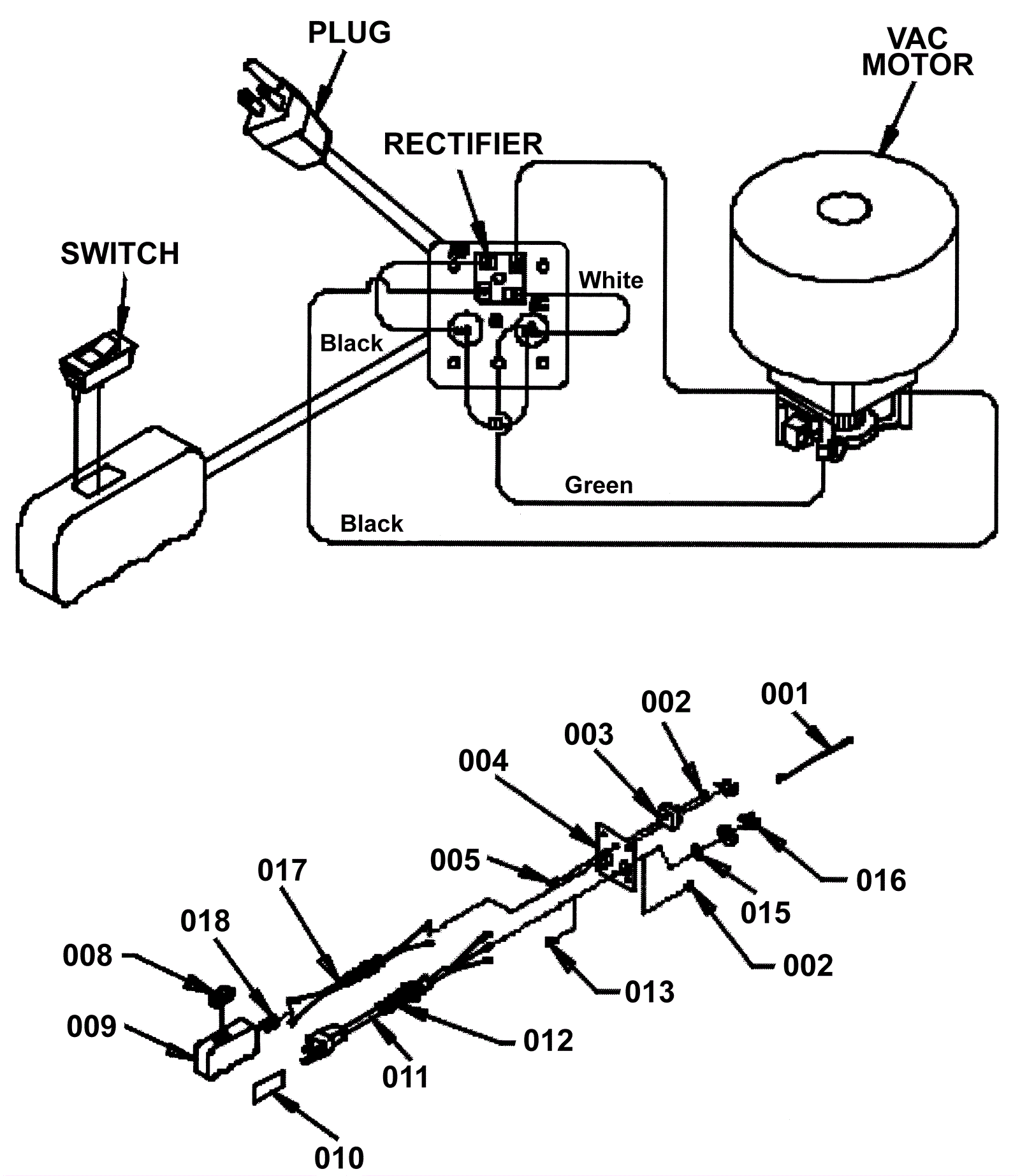

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
164-4648
|
Green wire |
1 |
|
|
002 |
999-0004
|
Nut 10-24 k-lock zinc plated |
1 |
|
|
004 |
N/A
|
Not available |
1 |
Cover plate on belt |
|
005 |
999-0314
|
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
|
008 |
164-0002
|
Rocker switch |
1 |
|
|
009 |
164-1200
|
Switch box |
1 |
|
|
010 |
992-0001
|
Velcro loop (sold by the inch) |
3 |
|
|
011 |
164-1210
|
Pig-tail cord |
1 |
|
|
012 |
175-0001
|
Strain relief |
1 |
|
|
013 |
999-0645
|
Screw 10-24 x 3/8 round head phillips stainless steel |
1 |
|
|
015 |
164-1197
|
Washer 3/4 star lock package of 5 |
1 |
|
|
016 |
164-4515
|
Strain relief cord clamp |
2 |
|
|
017 |
164-1204
|
Cord to switch box |
1 |
|
|
018 |
164-1205
|
Cord Clamp |
1 |
|
|
