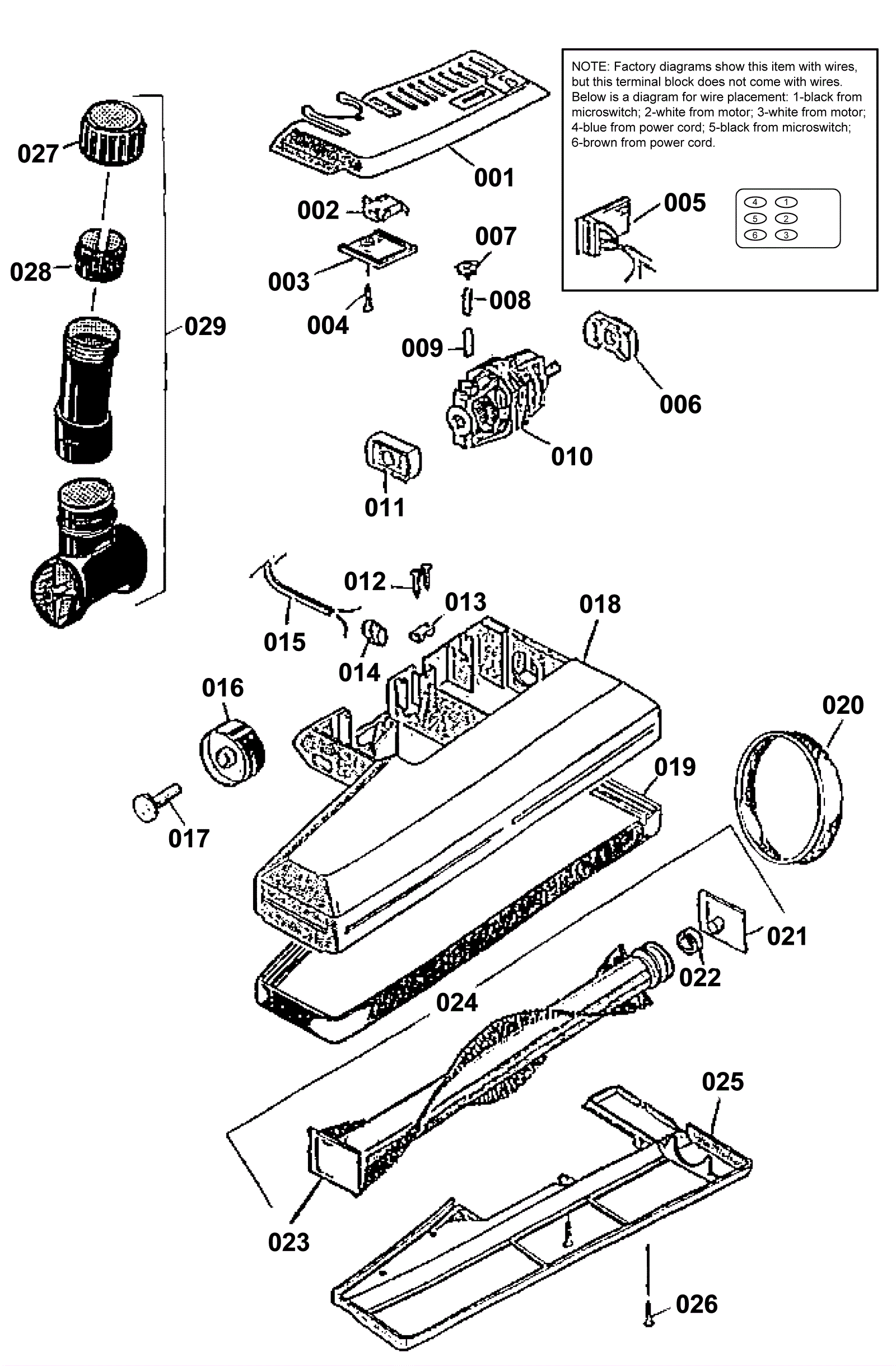

PowerWand Assembly

#PartDescription ReqNotesAvailability
001a 164-6056 Top cover (OBSOLETE) 1
001b 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc 3
001c 999-0526 Screw 8 x 5/8 pan head slotted zinc 1
002 164-6057 Micro switch 1 (This part no longer comes with wires that go to the terminal block. You should match up wires on the machine and get them at a hardware store)
003 164-6058 Switch cover plate (OBSOLETE) 1
004 999-0072 Screw 4 x 1 pan head slotted zinc T-A sheet metal 1
005 164-6059 Terminal block (OBSOLETE) 1
006 164-6060 Pulley end motor mount 1
007 N/A Not available 2 (Brush spring cap)
008 164-6062 Carbon brush spring 2
009 164-6063 Carbon brush (for PowerWand) (OBSOLETE) 2
010 164-0010 120V brush drive motor with mounts 1 (includes 006 and 011) (comes with the wires that go to the terminal block)
011 164-6065 Motor mount opposite pulley (OBSOLETE) 1 (Mounts)
012 999-0073 Screw 6 x 3/4 pan head slotted T-A sheet metal zinc 2
013 N/A Not available 1 (Hose clamp)
014 N/A Not available 1 (Strain relief)
015a 164-6067 4 1/2 foot power cord 1
015b 164-6068 18 foot PowerWand cord with electric fittings 1
016a 164-6070 Wheel with wheel pin 2 (includes 016 and 017)
016b 164-6069 Wheel only 2
017 164-6071 Wheel pin 2
018 164-6072 Brush cover mount 1
019 164-6073 Bumper 1
020 164-0011 Brush drive belt 1
021 164-6106 Bearing mount plate for pulley end 1
022 164-6077 Brush bearing 2
023 164-6075 Bearing mount plate for opposite the pulley end 1
024 164-6080 Brush assembly (OBSOLETE) 1 (includes 021-023)
025 164-6087 Bottom shoe plate 1
026 999-0527 Screw 8 x 5/8 flat head slotted zinc 4
027 164-6083 Threaded collar 1
028 164-6084 Split friction ring 1
029 164-6085 Swivel joint assembly with collar and split friction ring 1 (includes 027 and 028)
