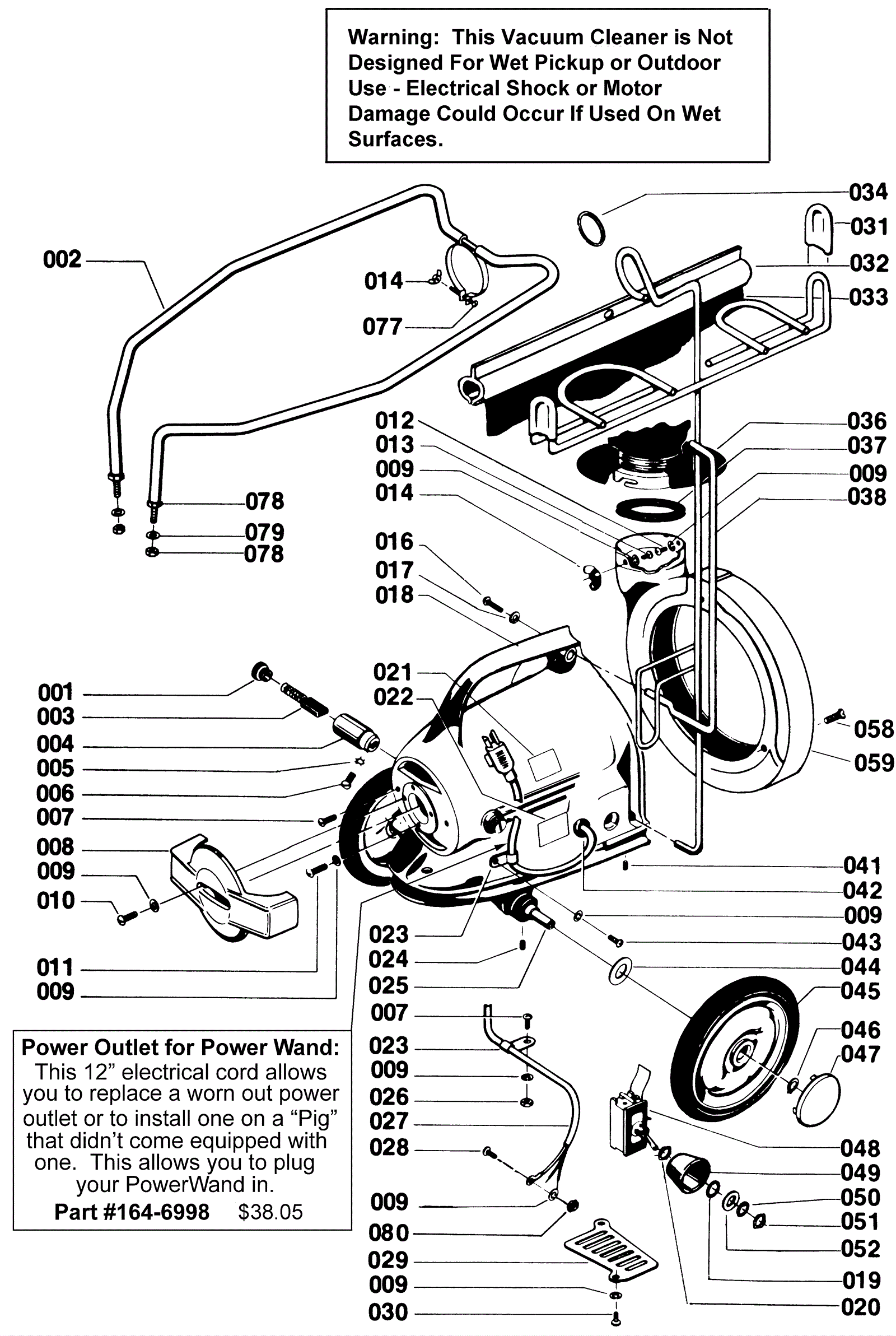

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
164-6000
|
Brush holder cap |
2 |
|
|
002a |
164-6001
|
Satellite bumper assembly |
1 |
|
|
002b |
164-6002
|
Satellite bumper tubing (sold in 3 foot pieces) |
2 |
|
|
003a |
164-6003
|
Carbon brush (sold individually) |
2 |
(OEM) |
|
003b |
991-1243
|
Carbon brush (sold individually) |
2 |
(NON-OEM) |
|
004 |
164-6004
|
Carbon brush holder |
2 |
|
|
005 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
006 |
999-0052
|
Screw 6-32 x 3/8 pan head slotted brass |
2 |
|
|
007 |
999-0008
|
Screw 10-24 x 5/8 round head slotted zinc plated |
3 |
|
|
008 |
164-6005
|
Motor cap |
1 |
|
|
009 |
999-0053
|
Washer #10 split lock plain finish |
23 |
|
|
010 |
999-0054
|
Screw 8-32 x 1 round head slotted zinc plated |
2 |
|
|
011 |
999-0055
|
Screw 8-32 x 3/4 round head slotted zinc plated |
6 |
|
|
012 |
999-0056
|
Screw 10-32 x 3/8 round head slotted zinc plated |
4 |
|
|
013 |
999-0057
|
Screw 10-32 x 5/8 round head slotted zinc plated |
2 |
|
|
014 |
999-0058
|
Nut 10-32 wing zinc plated |
2 |
|
|
016 |
999-0059
|
Screw 1/4-20 x 3/4 round head slotted zinc plated |
1 |
|
|
017 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
018 |
164-6006
|
Motor frame with brush holder |
1 |
|
|
019 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
020 |
164-6007
|
Spacer |
1 |
|
|
021 |
164-1226
|
Warning decal |
1 |
|
|
022 |
164-6010
|
Performance decal (OBSOLETE) |
1 |
|
|
023 |
164-0232
|
P clamp |
2 |
|
|
024 |
999-0061
|
Screw 1/4-20 x 5/16 cup point socket set alloy plain finish |
3 |
|
|
025 |
164-0038
|
Wheel kit (includes 2 wheels and axle) |
1 |
|
|
026 |
999-0062
|
Nut 10-24 hex |
1 |
|
|
027a |
164-6013
|
16/3 power cord assembly 35 foot |
1 |
(vacuum to wall) (OEM) |
|
027b |
991-5006
|
16/3 replacement power cord 50 foot (yellow) |
1 |
(vacuum to wall) (NON-OEM) |
|
027c |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
028 |
999-0063
|
Screw 10-24 x 1/4 round head slotted brass |
1 |
|
|
029 |
164-6014
|
Grate |
1 |
|
|
030 |
999-0064
|
Screw 10-24 x 7/16 round head slotted zinc plated |
6 |
|
|
031 |
164-6015
|
Bag rod protector |
2 |
|
|
032 |
164-6016
|
Bag clamp with ring (OBSOLETE) |
1 |
|
|
033a |
164-6219
|
Universal zippered bag (use with or without paper bags) |
1 |
|
|
033b |
164-0081
|
Paper bags (pkg of 6) (M1-Pig) |
1 |
(OEM) |
|
033c |
991-9021
|
Paper bags (pkg of 3) |
1 |
(NON-OEM) |
|
033d |
164-5321
|
Hose for bag 2 x 2 1/4 inch |
1 |
|
|
034 |
164-0445
|
Split key ring |
1 |
|
|
036 |
164-6021
|
Bag protector |
1 |
|
|
037 |
164-6091
|
Hose coupling gasket (for PowerWand hose) |
1 |
|
|
038 |
164-6023
|
Bag rod assembly |
1 |
|
|
041 |
999-0065
|
Screw 1/4-20 x 5/8 cup point socket set alloy plain finish |
1 |
|
|
042 |
164-6026
|
Rubber grommet |
1 |
|
|
043 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
1 |
|
|
044 |
999-0328
|
Washer 7/16 USS flat |
2 |
|
|
045a |
164-0038
|
Wheel kit (includes 2 wheels and axle) |
2 |
|
|
045b |
164-0038
|
Wheel kit (includes 2 wheels and axle) |
1 |
|
|
046 |
999-0067
|
Snap ring |
2 |
|
|
047 |
164-6028
|
Hub cap |
2 |
|
|
048 |
164-0034
|
On/off switch assembly |
1 |
|
|
049 |
164-6029
|
Switch guard assembly |
1 |
|
|
050 |
999-0260
|
Washer 1/2 internal starlock |
1 |
|
|
051 |
999-1359
|
Nut 9/16 hex stainless steel |
1 |
|
|
052 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
058 |
999-0071
|
Screw 10-24 x 1/2 flat head slotted zinc plated |
8 |
|
|
059 |
164-0036
|
Fan hood assembly (black) |
1 |
|
|
077 |
999-0068
|
Screw 10-32 x 1/4 round head slotted zinc plated |
1 |
|
|
078 |
999-0069
|
Nut 5/16-18 hex |
4 |
|
|
079 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
080 |
999-0070
|
Nut 10-24 hex brass |
1 |
|
|
