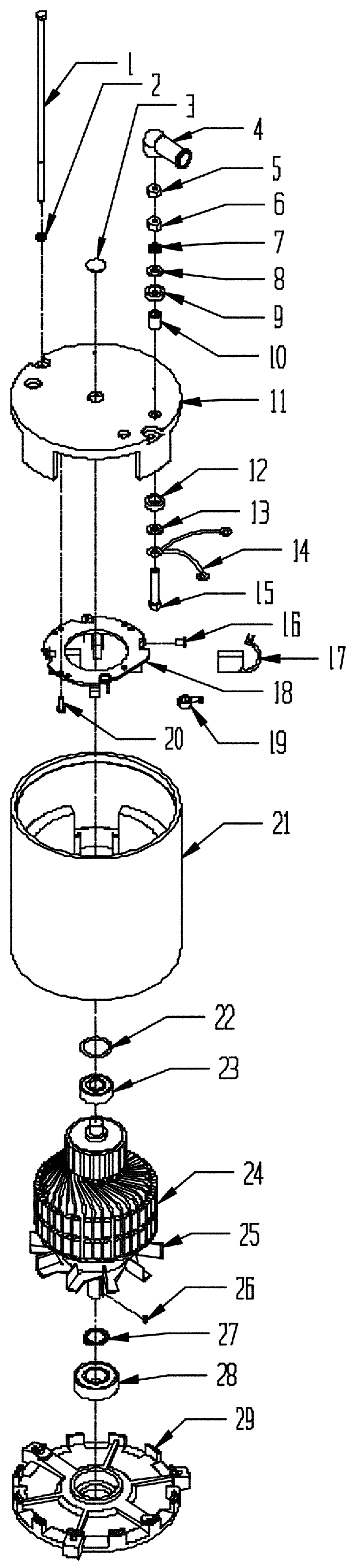

Motor Assembly

#PartDescription ReqNotesAvailability
1 264-5028 Screw 1/4-20 x 9 1/2 hex head 2
2 999-0060 Washer 1/4 split lock plain finish 2
3 N/A Not available 1 (plug)
4 164-1598 Rubber terminal boot 2
5 264-5029 Nut5/16-18 thin hex (OSBOLETE) 2
6 999-0612 Nut 5/16-18 hex brass 2
7 999-0028 Washer 5/16 split lock plain finish 2
8 164-9775 Washer (pkg of 10) 2
9 164-3060 Insulation washer (OBSOLETE) 2
10 164-3061 Insulation spacer 2
11 164-3062 Top end bell 1
12 164-3060 Insulation washer (OBSOLETE) 2
13 164-9775 Washer (pkg of 10) 2
14 N/A Not available 2 (lead harness assembly)
15 264-5030 Screw 5/16-18 x 1 3/4 hex brass (OBSOLETE) 2
16 N/A Not available 4 (screw 10-32 x 3/8 inch binding head brass)
17 164-1113 Carbon brush (sold individually) 4
18 164-1112 Brush ring assembly 1
19 164-1114 Brush spring for Ohio motor 4
20 999-0543 Screw 10-32 x 3/8 truss head phillips zinc plated 2
21 164-6375 Complete stature assembly with baffle 1
22 264-5031 Thrust washer (OBSOLETE) 1
23 164-0329 Top rotor bearing 1
24 164-6376 Complete armature assembly (OBSOLETE) 1
25 164-3068 Vent fan 1
26 164-6781 Square keyway 1
27 164-3071 Retaining ring (OBSOLETE) 1
28 164-5290 Bottom bearing 1
29 164-3070 Bottom end bell 1
