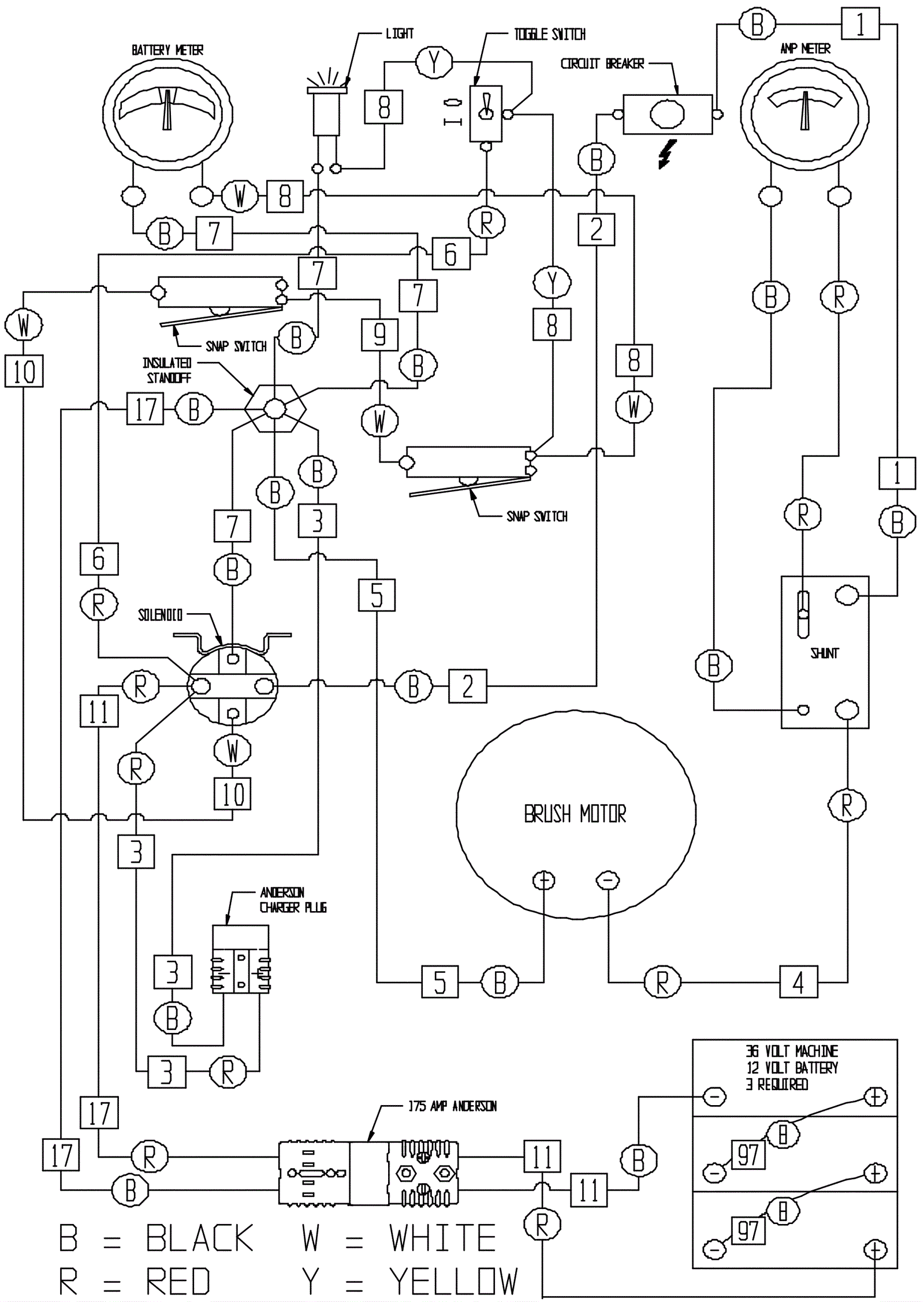

ULTRA MAXX BP27 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 164-6286 Wire assembly $12.54 1 usually ships 1-5 days
2 164-6287 Wire assembly $10.01 1 usually ships 1-5 days
3 164-6288 Wire assembly (OBSOLETE) $28.71 1 usually ships 1-5 days
4 164-6427 Wire assembly $25.85 1 usually ships 8-23 days
6 164-6289 Wire assembly-solenoid/main switch (OBSOLETE) $3.63 1 usually ships 1-5 days
7 164-6290 Wire assembly $7.76 1 usually ships 1-5 days
8 164-6291 Wire assembly $8.80 1 usually ships 1-5 days
9 164-6292 Wire assembly $4.29 1 usually ships 1-5 days
10 164-6293 Wire assembly $3.63 1 usually ships 1-5 days
11 164-1321 Wire assembly $120.47 1 usually ships 8-23 days
17 164-6350 Wire assembly $127.22 1 usually ships 8-23 days
97a 998-0010 Battery jumper cable - ring type (red) $4.84 2 ships same day
97b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 2 (NON-OEM) usually ships 5-16 days
N/S 164-4612 Wire tie $9.37 6 usually ships 8-23 days
N/S 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
N/S 991-1614 70amp circuit breaker $155.38 1 usually ships 3-12 days
N/S 164-0027 36V solenoid contactor $213.61 1 usually ships 8-23 days
N/S 164-3029 Shunt $74.97 1 usually ships 8-23 days
N/S 164-0024 RPM meter $128.54 1 usually ships 1-5 days
N/S 164-0022 Battery meter $120.95 1 usually ships 1-5 days
N/S 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
N/S 164-0026 Snap switch $30.64 2 usually ships 8-23 days
N/S 164-0283 Indicator light with clip (green) $22.50 1 usually ships 8-23 days
N/S 164-0023 Toggle switch $19.97 1 ships same day
N/S 991-2105 SB50 50amp charger plug with pins (gray) $6.72 1 ships same day
N/S 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
N/S 164-6472 36V brush motor $1,176.12 1 usually ships 8-23 days
N/S 991-2112 175amp charger plug with pins (gray) SB175 $16.09 2 ships same day
