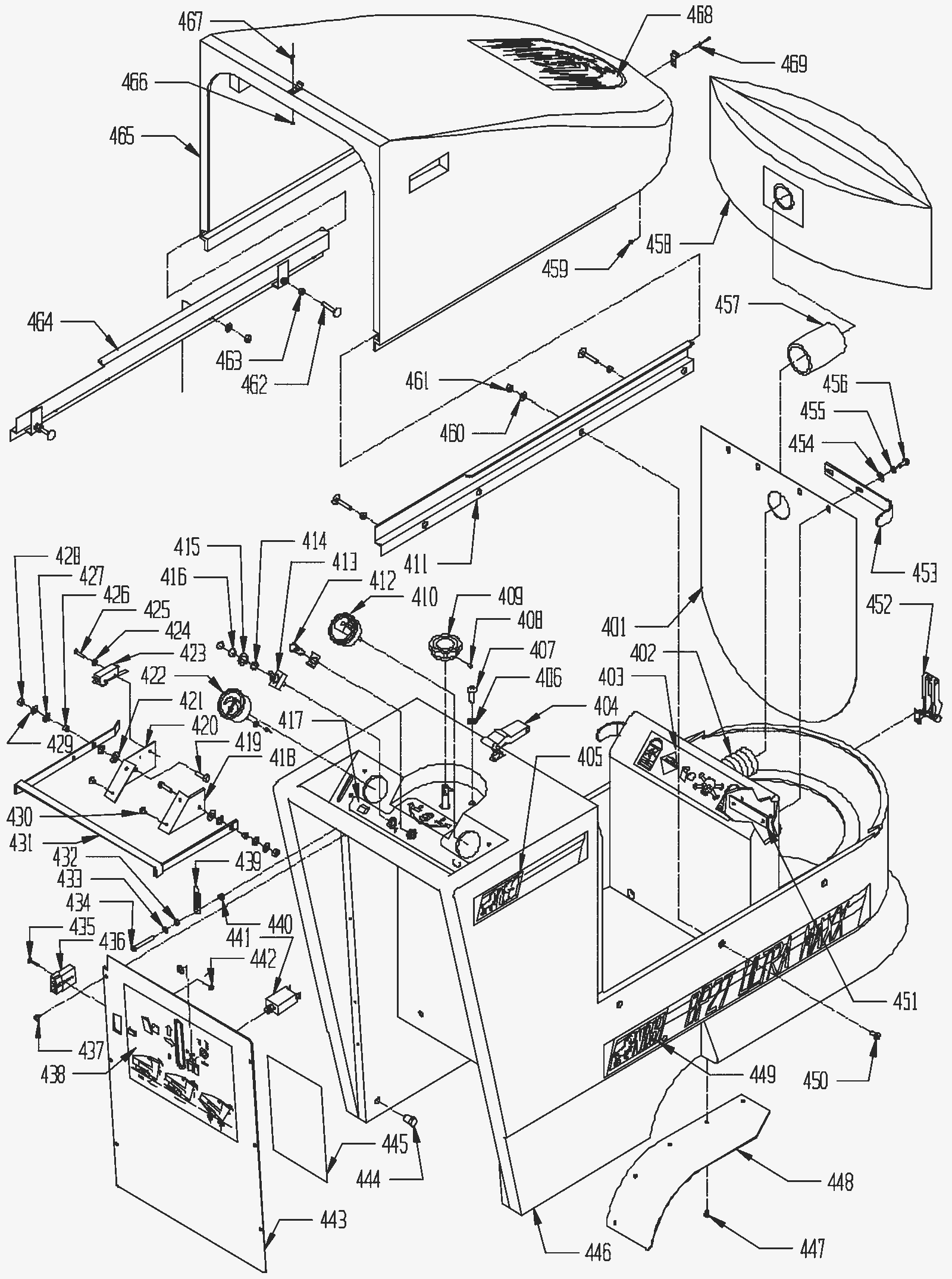

| # | Part | Description |
Req | Notes | Availability |
|---|
401 |
164-6373
|
Rubber motor cover (OBSOLETE) |
1 |
|
|
402 |
164-1418
|
Vacuum exhaust hose |
1 |
|
|
403 |
164-6392
|
Battery warning decal (OBSOLETE) |
1 |
|
|
404 |
164-6302
|
Latch with keeper |
1 |
|
|
405 |
264-5023
|
BP27 ultra maxx side decal (OBSOLETE) |
2 |
|
|
406 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
407 |
999-0655
|
Screw 5/16-18 x 1 round head slotted zinc plated |
2 |
|
|
408 |
164-9087
|
Screw 10-32 x 1/4 set cup point |
1 |
|
|
409 |
164-3025
|
Knob |
1 |
|
|
410 |
164-0024
|
RPM meter |
1 |
|
|
411 |
264-5024
|
Right hand slide rail (OBSOLETE) |
1 |
|
|
412 |
164-0283
|
Indicator light with clip (green) |
1 |
|
|
413 |
164-0023
|
Toggle switch |
1 |
|
|
414 |
999-0186
|
Nut 5/8-11 nylon insert lock zinc plated |
1 |
|
|
415 |
164-0289
|
Washer flat stainless steel |
1 |
|
|
416 |
999-0260
|
Washer 1/2 internal starlock |
1 |
|
|
417 |
264-5025
|
Dash panel decal (OBSOLETE) |
1 |
|
|
418 |
164-3765
|
Right switch plate (OBSOLETE) |
1 |
|
|
420 |
164-3764
|
Left switch plate (OBSOLETE) |
1 |
|
|
421 |
164-0941
|
Washer 13/32 x 13/16 |
2 |
|
|
422 |
164-0022
|
Battery meter |
1 |
|
|
423 |
164-0026
|
Snap switch |
1 |
|
|
424 |
999-0364
|
Washer #6 internal star lock zinc plated |
2 |
|
|
425 |
999-0656
|
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
|
|
426 |
164-0136
|
Bushing |
2 |
|
|
427 |
164-0137
|
Washer 3/8 spring |
4 |
|
|
428 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
429 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
430 |
999-0586
|
Screw 10-24 x 1/2 truss head stainless steel |
4 |
|
|
431 |
164-3089
|
Handle |
1 |
|
|
434 |
999-0642
|
Screw 10-24 x 1 3/4 round head phillips stainless steel |
1 |
|
|
435 |
999-0656
|
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
|
|
436a |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
|
|
436b |
164-6288
|
Wire assembly (OBSOLETE) |
1 |
|
|
437 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
8 |
|
|
438 |
164-6389
|
Pad position decal (OBSOLETE) |
1 |
|
|
439 |
164-0981
|
Spring |
1 |
|
|
441 |
991-1614
|
70amp circuit breaker |
1 |
|
|
443 |
164-6459
|
Rear cover panel (OBSOLETE) |
1 |
|
|
444 |
164-6294
|
Plug (OBSOLETE) |
2 |
|
|
445 |
164-6393
|
Wiring diagram decal (OBSOLETE) |
1 |
|
|
446 |
164-6266
|
Charger housing with rails |
1 |
|
|
447 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
10 |
|
|
448a |
164-6372
|
Right fender |
1 |
|
|
448b |
164-6371
|
Left fender |
1 |
|
|
449 |
264-5026
|
BP27 ultra maxx side decal (OBSOLETE) |
2 |
|
|
450 |
999-0419
|
Screw 1/4-20 x 5/8 flat head slotted zinc plated |
6 |
|
|
451 |
164-6306
|
Tapping plate (OBSOLETE) |
2 |
|
|
452 |
164-6302
|
Latch with keeper |
1 |
|
|
453 |
164-6303
|
Support bracket (OBSOLETE) |
2 |
|
|
454 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
455 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
457 |
164-3049
|
2 inch cuff |
1 |
|
|
458 |
164-0032
|
Paper bag (pkg of 5) |
1 |
|
|
459 |
164-6785
|
Washer 5/32 x 1/2 steel zinc plated |
4 |
|
|
460 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
461 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
6 |
|
|
462 |
999-1380
|
Bolt 1/4-20 x 1 1/2 elevator zinc |
4 |
|
|
463 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
464 |
164-6456
|
Left slide rail |
1 |
|
|
465 |
164-6266
|
Charger housing with rails |
1 |
|
|
466 |
164-6785
|
Washer 5/32 x 1/2 steel zinc plated |
4 |
|
|
467 |
164-6784
|
Pop rivet |
4 |
|
|
468 |
264-5027
|
Hood decal (OBSOLETE) |
1 |
|
|
469 |
164-6784
|
Pop rivet |
4 |
|
|
