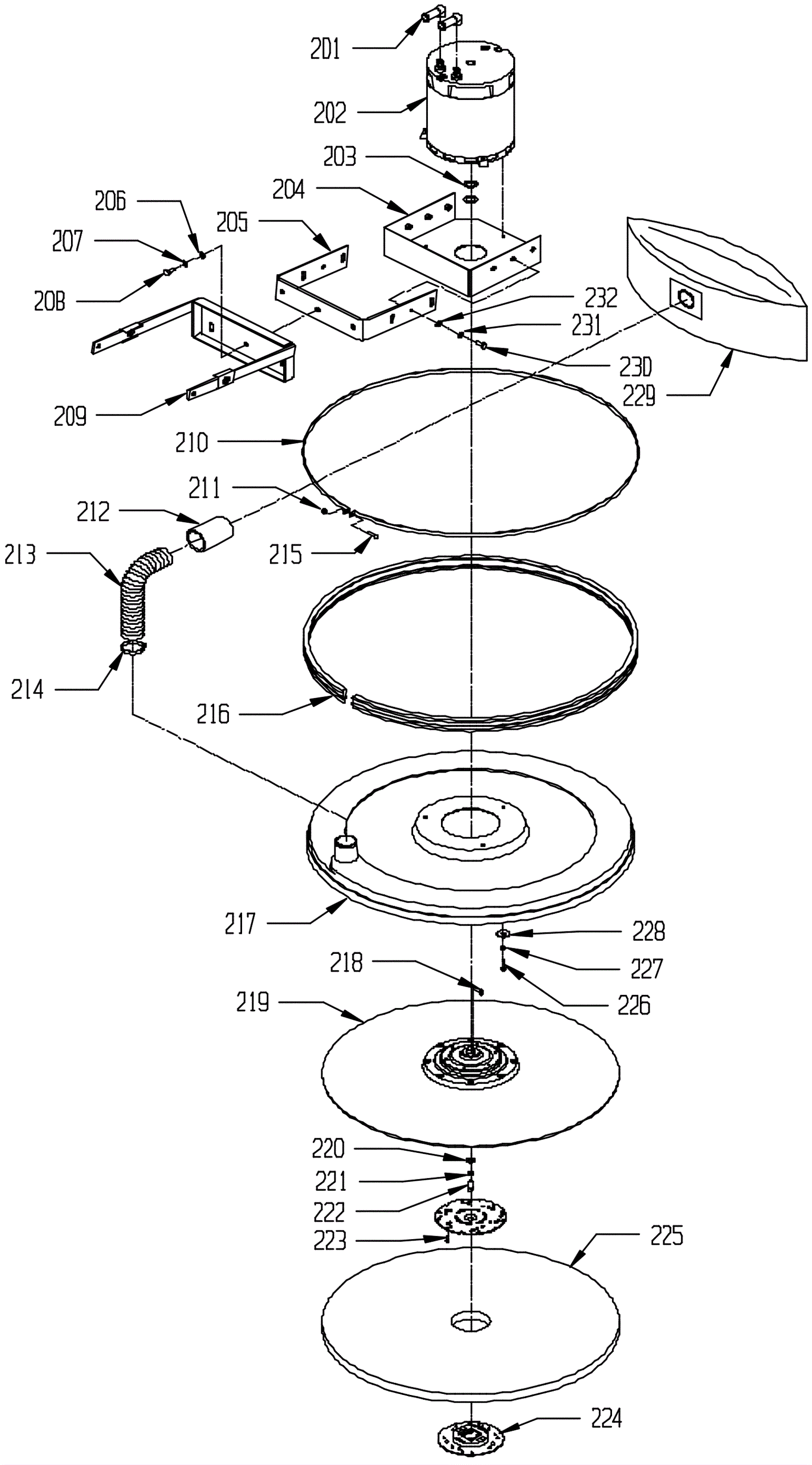

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
164-1598
|
Rubber terminal boot |
2 |
|
|
202 |
164-6472
|
36V brush motor |
1 |
|
|
203 |
999-0863
|
Washer 3/4 x 14 gauge narrow bushing |
2 |
|
|
204 |
164-3055
|
Motor mount |
1 |
|
|
205 |
164-6365
|
Pivot fork (OBSOLETE) |
1 |
|
|
206 |
164-9775
|
Washer (pkg of 10) |
3 |
|
|
207 |
999-0028
|
Washer 5/16 split lock plain finish |
3 |
|
|
208 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
3 |
|
|
209 |
164-3052
|
Pivot weldment |
1 |
|
|
210 |
164-3105
|
27 inch bumper strap |
1 |
|
|
212 |
164-3049
|
2 inch cuff |
1 |
|
|
213 |
164-1418
|
Vacuum exhaust hose |
1 |
|
|
214 |
164-9759
|
Hose clamp |
1 |
|
|
216 |
164-3106
|
27 inch bumper |
1 |
|
|
217 |
164-3104
|
27 inch Flexiwall shield assembly with bumper and strap |
1 |
|
|
218 |
164-6781
|
Square keyway |
1 |
|
|
219 |
164-4012
|
27 inch pad driver assm flex w/centerlok & screws |
1 |
|
|
220 |
999-0033
|
Washer 7/16 SAE flat |
1 |
|
|
221 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
223 |
999-0569
|
Screw 10 x 1/2 pan head phillips sheet metal |
3 |
|
|
224a |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
224b |
264-5021
|
Big mouth pad grabber assembly |
1 |
|
|
224c |
991-2203
|
Big mouth pad holder male thread portion |
1 |
|
|
225 |
264-5022
|
27 inch lust lite burn pad (OBSOLETE) |
1 |
|
|
226 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
3 |
|
|
227 |
999-0060
|
Washer 1/4 split lock plain finish |
3 |
|
|
228 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
3 |
|
|
229 |
164-0032
|
Paper bag (pkg of 5) |
1 |
|
|
230 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
6 |
|
|
231 |
999-0028
|
Washer 5/16 split lock plain finish |
6 |
|
|
232 |
164-9775
|
Washer (pkg of 10) |
6 |
|
|
