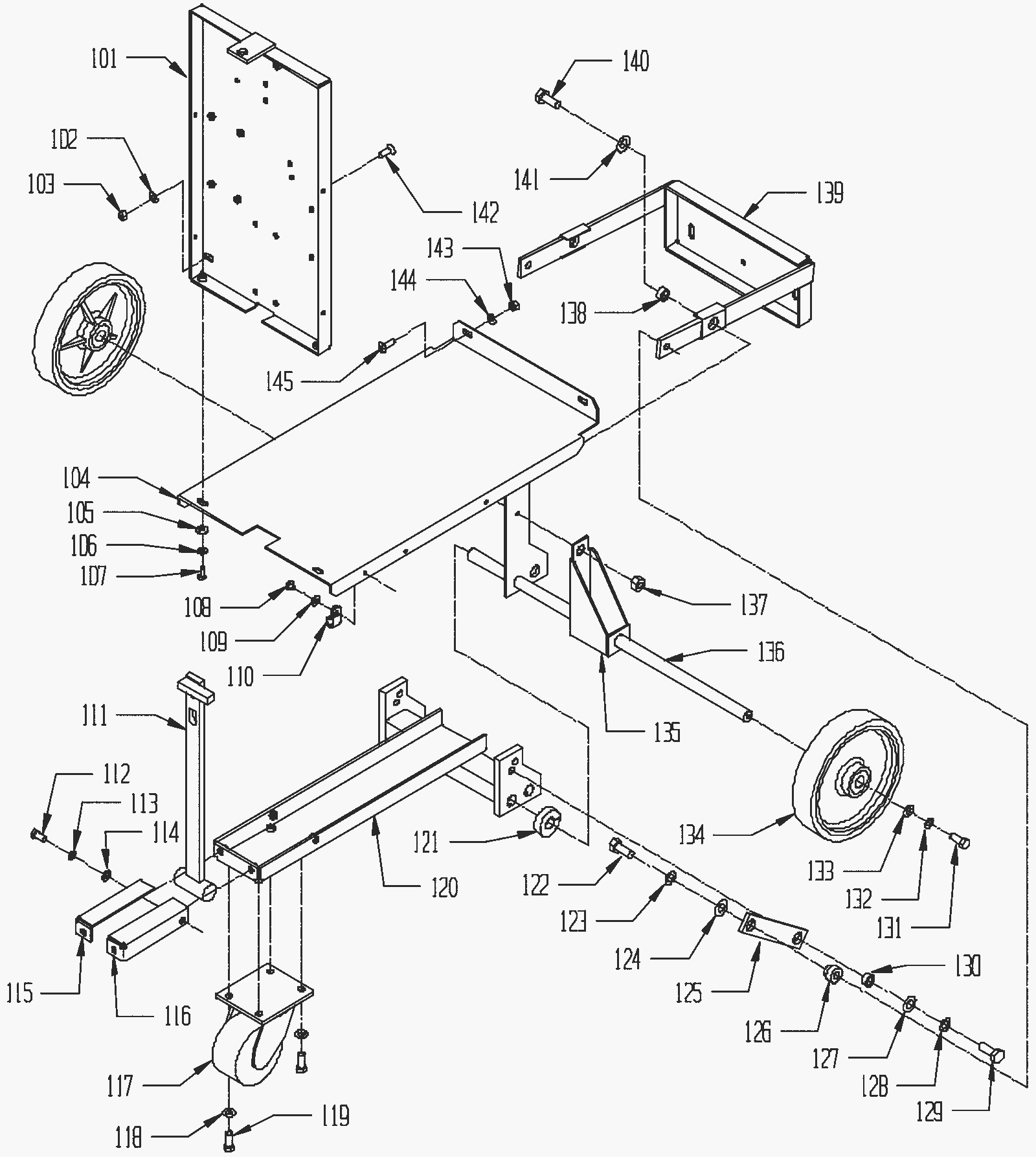

Base Assembly

#PartDescription ReqNotesAvailability
101 164-6461 Frame weldment (OBSOLETE) 1
102 164-9775 Washer (pkg of 10) 2
103 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
104 164-6363 Base- non variable speed (OBSOLETE) 1
105 164-9775 Washer (pkg of 10) 2
106 999-0028 Washer 5/16 split lock plain finish 2
107 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
108 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 2
109 999-0017 Washer 1/4 external star lock 2
110 164-9118 P clamp 2
111 164-6282 Catch assembly 1
112 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
113 999-0028 Washer 5/16 split lock plain finish 4
114 164-9775 Washer (pkg of 10) 4
115 164-3036 Left support bracket (OBSOLETE) 1
116 164-3037 Right support bracket (OBSOLETE) 1
117a 991-2006 Caster wheel assembly (red) 1
117b 991-2008 4 inch caster wheel with bearings (red) 1
118 164-0941 Washer 13/32 x 13/16 4
119 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
120 164-6364 Frame-non variable speed (OBSOLETE) 1
121 164-6273 Shaft collar 2
122 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
123 164-9071 Lock washer (pkg of 5) 2
124 164-9072 Flat washer (pkg of 5) 2
125 164-6281 Lifting arm 2
126 164-3770 Spacer 2
127 164-9072 Flat washer (pkg of 5) 2
128 164-9071 Lock washer (pkg of 5) 2
129 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
130 164-0841 Bushing 2
131 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
132 999-0034 Washer 3/8 split lock plain finish 2
133 164-0941 Washer 13/32 x 13/16 2
134a 164-0029 8 inch wheel with bearings 2
134b 164-3045 Wheel bearing 2 (two required per wheel)
134c 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS 2 (NON-OEM)
135 164-6369 Leg extender bracket 2
136 164-6370 Axle 1
137 999-0118 Nut 1/2-13 nylon insert lock zinc plated 2
138 164-0841 Bushing 2
139 164-3052 Pivot weldment 1
140 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
141 164-9072 Flat washer (pkg of 5) 2
142 999-0536 Screw 5/16-18 x 1 flat head socket plain finish 2
143 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
144 164-9775 Washer (pkg of 10) 2
145 999-0536 Screw 5/16-18 x 1 flat head socket plain finish 2
